330730-080-01-00 Bently Nevada XL 11 mm Extension Cable
330730-080-01-00

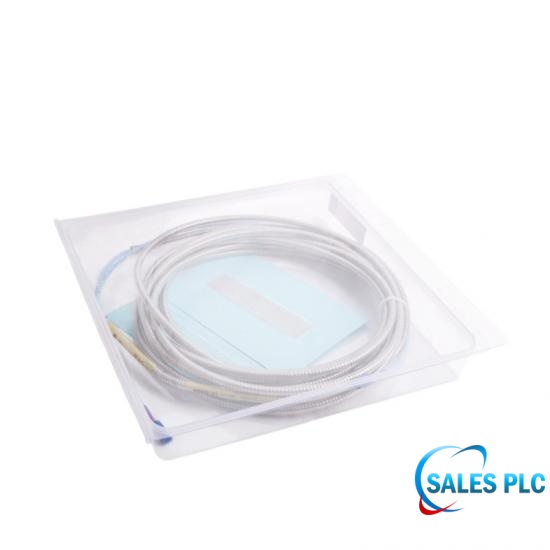

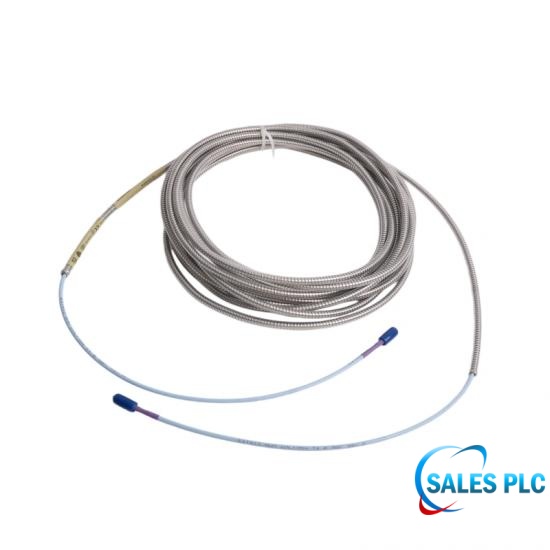

330730-080-01-00 is a 8.0 m Bently Nevada 3300 XL 11 mm extension cable component with armored cable and agency option 00.
Scope note: These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 181501176853300 XL 11 mm extension cable component
330730-080-01-00 is the extension cable component identified by the Baker Hughes 146256 ordering code. It provides 8.0 m of 75 ohm triaxial FEP-insulated cable in the armored cable configuration. 330730-080-01-00 must be length-matched with a compatible probe and 330780 Proximitor Sensor and is not a complete measurement system.
Use this 8.0 m extension cable with a 1.0 m 3300 XL 11 mm probe and a 9.0 m 330780 Proximitor Sensor so probe plus extension cable equals the Proximitor total system length.
These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor.
| Product type | 3300 XL 11 mm extension cable component |
|---|---|

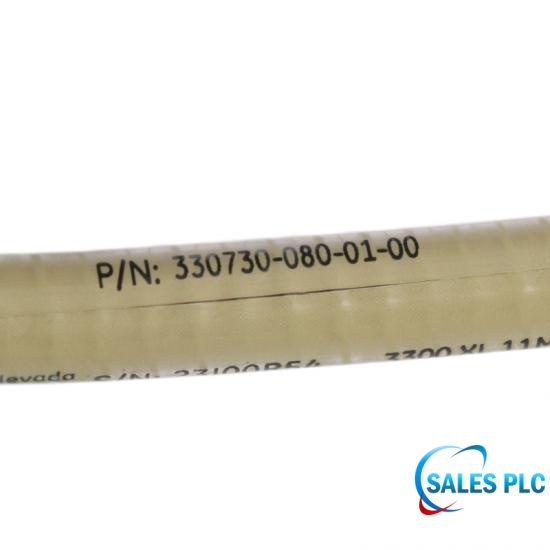

| Order number | 330730-080-01-00 |
| Cable length | 8.0 m |
| Cable option | 01 - Armored cable |
| Armor | Yes |
| FluidLoc | No |
| Connector protector | No |
| Agency approval option | 00 - Agency approval not required |
| Cable construction | 75 ohm triaxial, FEP insulated |
| Armor construction | Flexible AISI 302 SST with FEP outer jacket |
| Connector material | Gold-plated brass ClickLoc |
| DC resistance | Core 2.0 +/-0.5 ohm; coaxial jacket 0.6 +/-0.2 ohm |
| Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Typical cable weight | 140 g/m (1.5 oz/ft) typical |
| Minimum bend radius | 25.4 mm (1.0 in), with or without SST armor |
| Complete-system Linear range | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 4.0 mm (160 mils), approximately 0.5 to 4.5 mm from target and -1 to -17 Vdc output |
| Complete-system Recommended gap | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 2.5 mm (100 mils) |
| Complete-system Incremental scale factor | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 3.94 V/mm (100 mV/mil), +/-10% including interchangeability error |
| Complete-system Standard DSL | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. Less than +/-0.10 mm (+/-4 mils) |
| Complete-system Extended DSL | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. Approximately 0.5 to 5.0 mm; less than +/-0.15 mm (+/-6 mils); not applicable with zener barriers |
| Complete-system Frequency response | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 0 to 8 kHz, +0/-3 dB typical, with up to 305 m (1000 ft) of field wiring |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
330730-080-01-00 is a Bently Nevada 3300 XL 11 mm extension cable component; 330730-080-01-00 is not a probe or a complete transducer system.
330730-080-01-00 uses length option 080, which is 8.0 m.
330730-080-01-00 uses option 01: armored cable.
330730-080-01-00 is armored with flexible AISI 302 SST and an FEP outer jacket.
330730-080-01-00 has FluidLoc: no; connector protector: no.
330730-080-01-00 uses option 00 - Agency approval not required; actual installed approval markings must be verified on the delivered 330730-080-01-00 nameplate.
330730-080-01-00 must satisfy the official total-length rule. Use this 8.0 m extension cable with a 1.0 m 3300 XL 11 mm probe and a 9.0 m 330780 Proximitor Sensor so probe plus extension cable equals the Proximitor total system length.
No. For 330730-080-01-00, the 4.0 mm linear range and 3.94 V/mm scale factor apply only after 330730-080-01-00 is used in a complete, correctly matched 3300 XL 11 mm transducer system.
Send the complete component and matching system part numbers, required electrical length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
