330780-51-00 Bently Nevada XL 11 mm Proximitor Sensor
330780-51-00

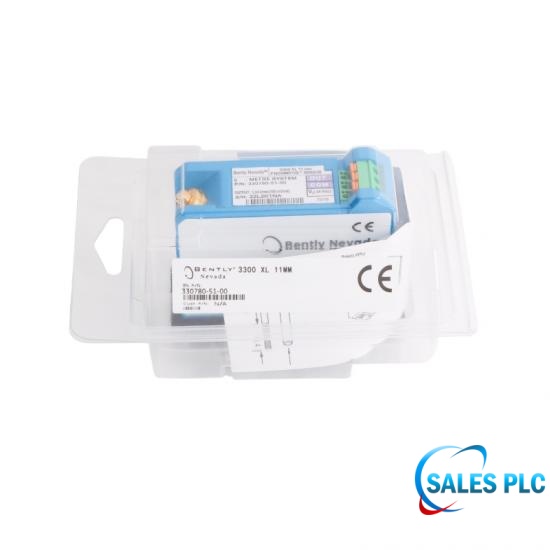

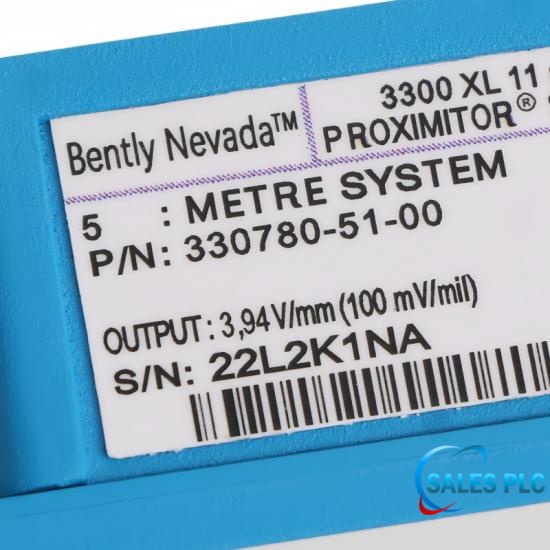

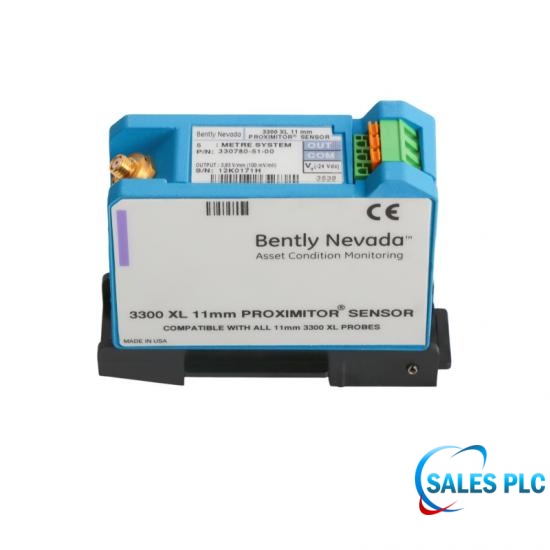

330780-51-00 is a Bently Nevada 3300 XL 11 mm Proximitor Sensor component for a 5.0 m matched system, supplied for DIN mount with agency option 00.
Scope note: These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 181501176853300 XL 11 mm Proximitor Sensor component
330780-51-00 is the signal-conditioning Proximitor Sensor component identified by the Baker Hughes 146256 ordering code. Option 51 specifies a 5.0 m total system length and DIN mount. 330780-51-00 accepts one non-contacting 3300 XL 11 mm probe and its correctly matched extension cable; it is not a standalone complete system.
Use this 5.0 m 330780 Proximitor Sensor only with 3300 XL 11 mm probe and extension-cable lengths whose sum is 5.0 m.
These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor.
| Product type | 3300 XL 11 mm Proximitor Sensor component |
|---|---|
| Order number | 330780-51-00 |
| Matched total system length | 5.0 m |
| Mounting option | DIN mount |
| Agency approval option | 00 - Agency approval not required |
| Input | One non-contacting 3300 XL 11 mm proximity probe and extension cable |
| Power without barriers | -17.5 to -26 Vdc; 12 mA maximum consumption |
| Power with barriers | -23 to -26 Vdc |
| Output resistance | 50 ohm |
| Supply sensitivity | Less than 2 mV output change per volt of input-voltage change |
| Sensor material | A380 aluminum |
| Typical weight | 255 g (9 oz) |
| Field wiring | 0.2 to 1.5 mm2 (16 to 24 AWG); maximum 305 m (1000 ft) to monitor |
| Complete-system Linear range | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 4.0 mm (160 mils), approximately 0.5 to 4.5 mm from target and -1 to -17 Vdc output |
| Complete-system Recommended gap | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 2.5 mm (100 mils) |
| Complete-system Incremental scale factor | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 3.94 V/mm (100 mV/mil), +/-10% including interchangeability error |
| Complete-system Standard DSL | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. Less than +/-0.10 mm (+/-4 mils) |
| Complete-system Extended DSL | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. Approximately 0.5 to 5.0 mm; less than +/-0.15 mm (+/-6 mils); not applicable with zener barriers |
| Complete-system Frequency response | These are complete 3300 XL 11 mm transducer system values, not standalone ratings for this individual component. They apply only to a correctly matched Bently Nevada probe, extension cable when required, and 330780 Proximitor Sensor. 0 to 8 kHz, +0/-3 dB typical, with up to 305 m (1000 ft) of field wiring |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
330780-51-00 is a Bently Nevada 3300 XL 11 mm Proximitor Sensor signal-conditioning component; 330780-51-00 is not a probe or a complete transducer system.
330780-51-00 is calibrated for a matched 5.0 m total 3300 XL 11 mm system length.
330780-51-00 uses option 51, which specifies DIN mount.
330780-51-00 uses option 00 - Agency approval not required; actual installed approval markings must be verified on the delivered 330780-51-00 nameplate.
330780-51-00 requires -17.5 to -26 Vdc without barriers at 12 mA maximum, or -23 to -26 Vdc with barriers.
330780-51-00 accepts one non-contacting 3300 XL 11 mm proximity probe and its correctly matched extension cable.
330780-51-00 must satisfy the official total-length rule. Use this 5.0 m 330780 Proximitor Sensor only with 3300 XL 11 mm probe and extension-cable lengths whose sum is 5.0 m.
No. For 330780-51-00, the 4.0 mm linear range and 3.94 V/mm scale factor apply only to the complete, correctly matched probe, extension cable when required, and 330780-51-00 system.
Send the complete component and matching system part numbers, required electrical length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
