330800-16-15-020-01-02 Bently Nevada PROXPAC Assembly
330800-16-15-020-01-02

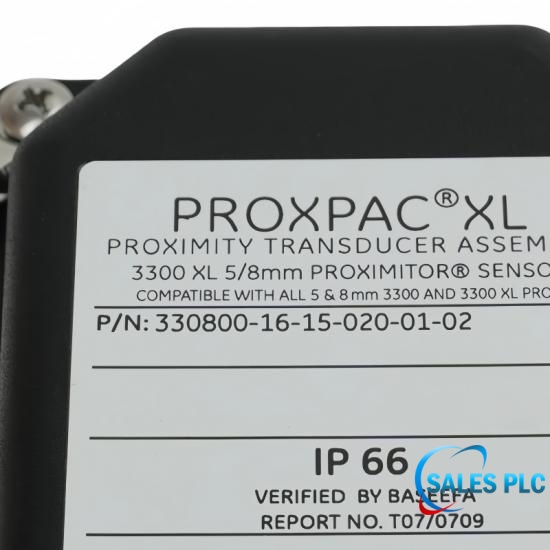

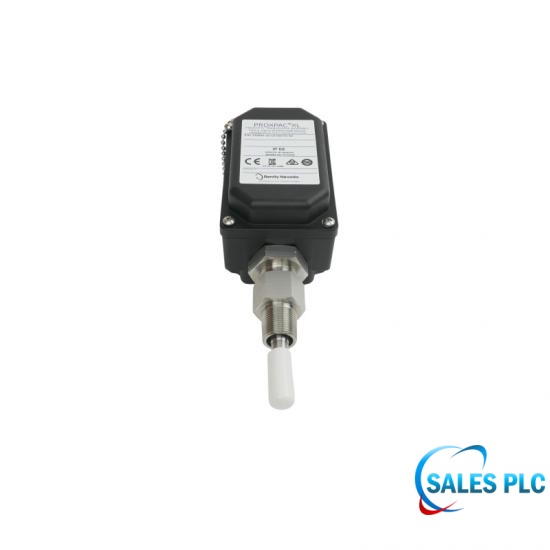

330800-16-15-020-01-02 is a legacy Bently Nevada PROXPAC Proximity Transducer Assembly configured with 3300 XL 8 mm probe, 1.5 in (38 mm) standoff adapter, 2.0 in (51 mm nominal conversion), one 3/4-14 npt fitting and two plugs, and a 3/4-14 NPT mounting thread. 330800-16-15-020-01-02 includes the 1 m probe and integrated Proximitor Sensor and uses no extension cable between them. 330800-16-15-020-01-02 is the transducer assembly, not the field wiring, monitor, power supply, machine target or configured protection function.
Scope note: Claims are limited to the exact documented component identity. Complete-system operation requires the correctly matched rack configuration.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Exact manufacturer-supported identity corrected from the previous inventory classification. Legacy 330800 English configuration documented by Bently Nevada 141621-01 Rev. F; verify present availability and any current replacement path without changing this exact historical part number
330800-16-15-020-01-02 follows the 330800-AXX-BXX-CXXX-DXX-EXX English ordering structure in Bently Nevada 141621-01 Rev. F. Its five fields decode exactly to 3300 XL 8 mm probe, 1.5 in (38 mm) standoff adapter, 2.0 in (51 mm nominal conversion), one 3/4-14 npt fitting and two plugs, and a 3/4-14 NPT mounting thread.
330800-16-15-020-01-02 contains its Proximitor Sensor in the housing and includes a 1 m 3300 XL 8 mm probe. No extension cable is used between the included probe and sensor.
330800-16-15-020-01-02 does not include the field wiring to the monitor, monitor hardware, external power source, target/machine installation or configured alarm and protection logic.
| Manufacturer | Bently Nevada Corporation |
|---|---|
| Part number | 330800-16-15-020-01-02 |
| Official product type | PROXPAC Proximity Transducer Assembly |
| Legacy ordering table | 330800 English |
| Probe / approvals option | 16 = 3300 XL 8 mm probe |
| Assembly contents | One 1 m 3300 XL 8 mm probe plus integrated Proximitor Sensor in the housing |
| Standoff adapter | 15 = 1.5 in (38 mm) standoff adapter |
| Probe penetration | 020 = 2.0 in (51 mm nominal conversion) |
| Fittings | 01 = One 3/4-14 NPT fitting and two plugs |
| Mounting thread | 02 = 3/4-14 NPT |
| Housing rating | Type 4X and IP66 |
| Sensor input | One noncontacting 3300 XL 8 mm proximity probe with a 1 m cable installed in the probe sleeve |
| Power without barriers | -17.5 to -26 Vdc; 12 mA maximum |
| Power with barriers | -23 to -26 Vdc |
| Output resistance | 50 ohm |
| Field wiring | Three-conductor twisted shielded cable recommended; maximum 305 m (1000 ft) between assembly and monitor |
| Housing / Proximitor operating temperature | -34 to +100 deg C (-30 to +212 deg F) |
| Storage temperature | -34 to +105 deg C (-30 to +221 deg F) |
| Approval boundary | 330800-16-15-020-01-02 uses legacy probe option 16, which is not labeled Multiple Approvals in 141621-01 Rev. F; do not infer hazardous-area approval without the delivered nameplate and applicable certification. |
| Not included | Field wiring, monitor hardware, power supply, target/machine installation and configured alarm or protection logic |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
330800-16-15-020-01-02 is a legacy Bently Nevada PROXPAC Proximity Transducer Assembly with an integrated Proximitor Sensor and one 1 m 3300 XL 8 mm probe.
330800-16-15-020-01-02 uses A=16, identified by the legacy ordering table as 3300 XL 8 mm probe.
330800-16-15-020-01-02 uses B=15, meaning 1.5 in (38 mm) standoff adapter.
330800-16-15-020-01-02 uses C=020, meaning 2.0 in (51 mm nominal conversion).
330800-16-15-020-01-02 uses D=01, meaning one 3/4-14 npt fitting and two plugs.
330800-16-15-020-01-02 uses E=02, meaning a 3/4-14 NPT mounting thread.
330800-16-15-020-01-02 does not use an extension cable between its included 1 m probe and integrated Proximitor Sensor; field wiring to the monitor is separate.
330800-16-15-020-01-02 is a self-contained proximity transducer assembly, but it does not include field wiring, monitor hardware, power supply, machine target, installation work or configured protection logic.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
