330850-90-CN Bently Nevada 25 mm Proximitor Sensor
330850-90-CN

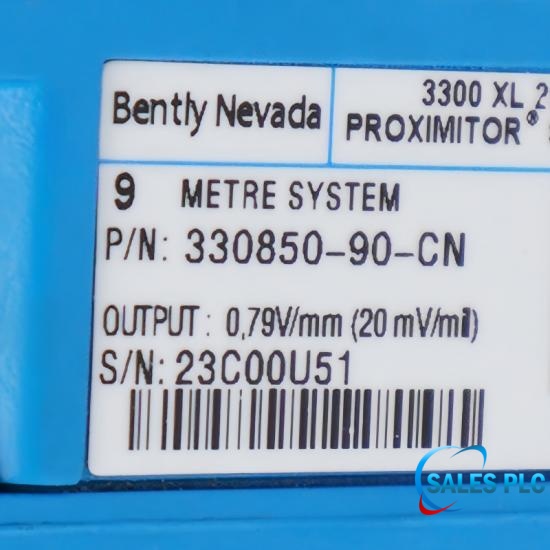

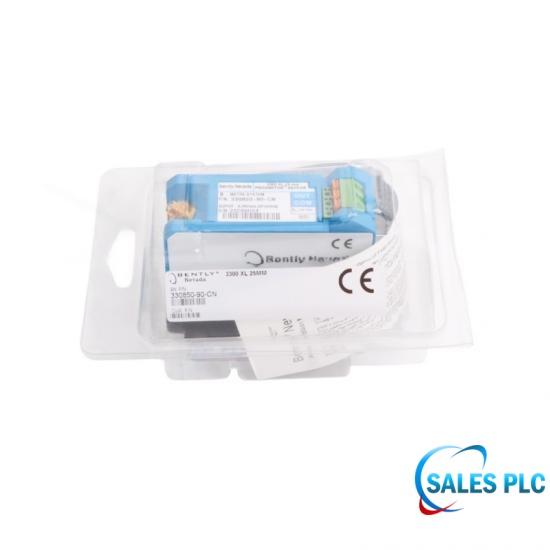

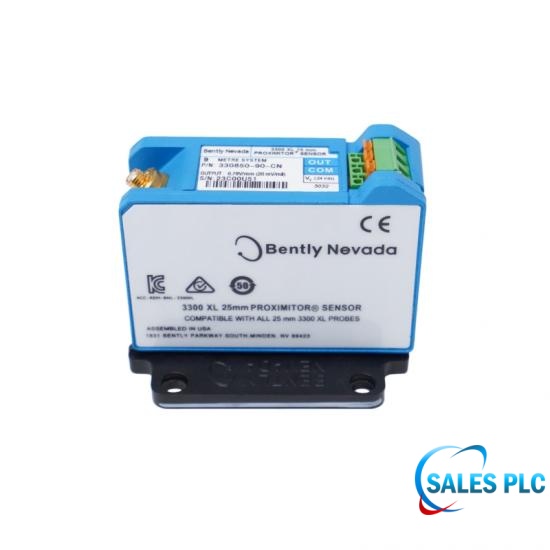

330850-90-CN is a Bently Nevada 3300 XL 25 mm Proximitor Sensor configured for a 9 m transducer system with panel mounting and the China country-specific hazardous-area option. 330850-90-CN accepts one matched 3300 XL 25 mm proximity probe and the compatible cable path. 330850-90-CN is the signal-conditioning component, not a complete transducer system.
Scope note: 330850-90-CN identifies 3300 XL 25 mm Proximitor Sensor; signal conditioner only. Complete-system performance is labeled separately and does not apply to 330850-90-CN alone.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Proximitor Sensor
330850-90-CN is only the listed Proximitor Sensor; 330850-90-CN must be matched with the correct 25 mm probe, cable path and Proximitor Sensor configuration.
330850-90-CN does not independently provide the published complete-system range or scale factor. The official 12.7 mm range and 0.787 V/mm average scale factor apply only to a complete matched 330851/330854/330850 chain under the published target and test conditions.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Exact model / part number | 330850-90-CN |
| Component type | 3300 XL 25 mm Proximitor Sensor; signal conditioner only |
| Compatible transducer family | 3300 XL 25 mm components only |
| Decoded order options | AA 90 = 9 m system with panel mounting; approval CN - China country-specific option; final markings and site acceptance require the unit nameplate and applicable certificate |
| Required total electrical/system length | 9 m; the matched probe lead plus extension-cable length must equal 9 m |
| Agency option | CN - China country-specific option; final markings and site acceptance require the unit nameplate and applicable certificate |
| Sensor power | -17.5 to -26 Vdc without barriers, 12 mA maximum; -23 to -26 Vdc with barriers |
| Output resistance | 50 ohm |
| Operating temperature | -51 to +100 deg C |
| Storage temperature | -51 to +105 deg C |
| Official document | 163236 Rev. M |
| Complete matched system - components | 330851 probe + optional 330854 extension cable + 330850 Proximitor Sensor |
| Complete matched system - linear range | 12.7 mm (500 mil), approximately 0.63 to 13.33 mm gap and -1.5 to -11.5 Vdc |
| Complete matched system - average scale factor | 0.787 V/mm (20 mV/mil) nominal |
| Complete matched system - DSL | Less than +/-0.31 mm (+/-12 mil) |
| Complete matched system - electrical lengths | 5 m or 9 m including any extension cable |
| Complete matched system - target basis | Bently Nevada AISI 4140 steel, flat target at least 61 mm diameter; standard specification gap 7.0 mm |
| Complete matched system - frequency response | 0 to 2.7 kHz, +0/-3 dB typical, with up to 305 m field wiring under published conditions |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
330850-90-CN is a Bently Nevada 3300 XL 25 mm Proximitor Sensor with a 9 m system, panel mounting, and the China country-specific hazardous-area option.
330850-90-CN specifies AA 90 = 9 m system with panel mounting; approval CN - China country-specific option; final markings and site acceptance require the unit nameplate and applicable certificate.
330850-90-CN is designed for the Bently Nevada 3300 XL 25 mm Proximity Transducer System and 330850-90-CN must be used with matched 25 mm family components.
330850-90-CN must be installed in a matched 5 m or 9 m electrical path; for 330850-90-CN, probe lead length plus extension-cable length must equal the Proximitor Sensor system length.
330850-90-CN alone does not establish the published system performance; for 330850-90-CN, the official range and scale factor apply to the complete matched probe, cable and Proximitor Sensor under the datasheet target and test conditions.
330850-90-CN has the component-specific official temperature statement shown in the technical table: -51 to +100 deg C operating; -51 to +105 deg C storage.
330850-90-CN carries order option CN: China country-specific hazardous-area option; final site acceptance for 330850-90-CN must follow the unit marking and applicable certificate.
330850-90-CN is a component of the 3300 XL 25 mm system used for differential expansion on mid-size to large steam turbines.
Send the complete component and matching system part numbers, required electrical length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
