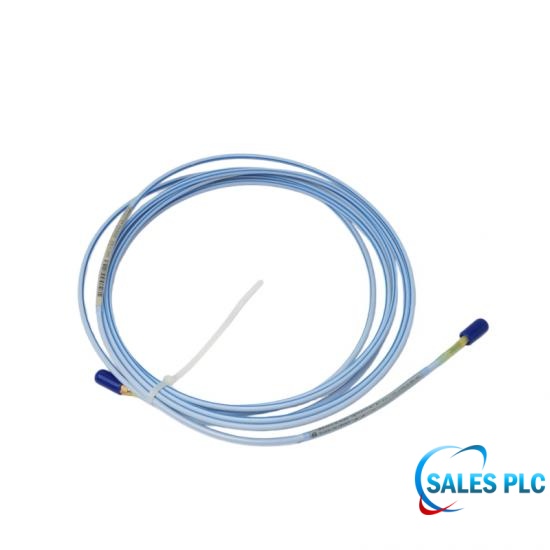

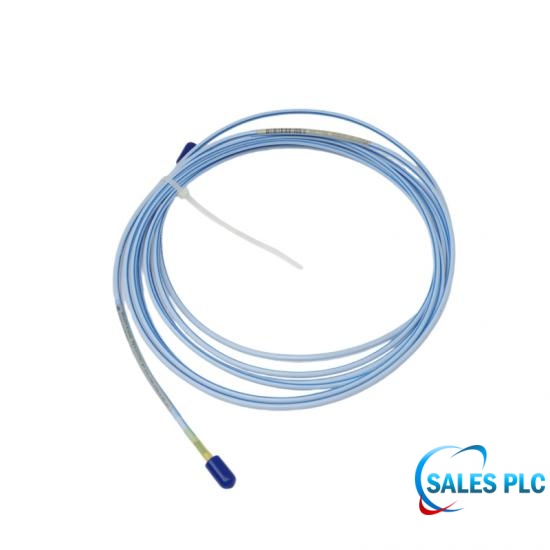

330854-040-24-05 Bently Nevada 25 mm Extension Cable
330854-040-24-05
330854-040-24-05 is a 4 m Bently Nevada 3300 XL 25 mm unarmored high-temperature FluidLoc extension cable with multiple approvals. For 330854-040-24-05, probe lead length plus extension-cable length must equal the matched Proximitor Sensor's 5 m or 9 m system length. 330854-040-24-05 is a cable component, not a complete transducer system.
Scope note: Claims are limited to the corrected exact OEM identity and documented component configuration. Complete-system compatibility and performance require the correctly matched installed system.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:

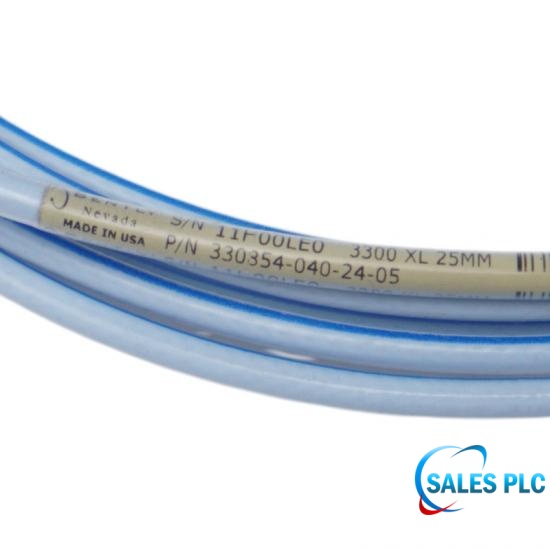

+86 18150117685Corrected from 330354-040-24-05 to the unique OEM ordering format. 3300 XL 25 mm unarmored high-temperature FluidLoc extension cable.
330854-040-24-05 is only the listed extension cable; 330854-040-24-05 must be matched with the correct 25 mm probe, cable path and Proximitor Sensor configuration.
330854-040-24-05 does not independently provide the published complete-system range or scale factor. The official 12.7 mm range and 0.787 V/mm average scale factor apply only to a complete matched 330851/330854/330850 chain under the published target and test conditions.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Exact model / part number | 330854-040-24-05 |
| Component type | 3300 XL 25 mm extension cable only |
| Compatible transducer family | 3300 XL 25 mm components only |
| Decoded order options | cable length 4 m; option 24 = unarmored high-temperature FluidLoc; approval 05 - multiple approvals |
| Required total electrical/system length | Combine with a 1 m probe lead to make a 5 m matched system |
| Cable length | 4 m |
| Construction | unarmored high-temperature FluidLoc |
| Agency option | 05 - multiple approvals |
| Component temperature | -35 to +200 deg C |
| Official document | 163236 Rev. M |
| Complete matched system - components | 330851 probe + optional 330854 extension cable + 330850 Proximitor Sensor |
| Complete matched system - linear range | 12.7 mm (500 mil), approximately 0.63 to 13.33 mm gap and -1.5 to -11.5 Vdc |
| Complete matched system - average scale factor | 0.787 V/mm (20 mV/mil) nominal |
| Complete matched system - DSL | Less than +/-0.31 mm (+/-12 mil) |
| Complete matched system - electrical lengths | 5 m or 9 m including any extension cable |
| Complete matched system - target basis | Bently Nevada AISI 4140 steel, flat target at least 61 mm diameter; standard specification gap 7.0 mm |
| Complete matched system - frequency response | 0 to 2.7 kHz, +0/-3 dB typical, with up to 305 m field wiring under published conditions |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
330854-040-24-05 is a Bently Nevada 3300 XL 25 mm extension cable with a 4 m unarmored high-temperature FluidLoc construction and multiple approvals.
330854-040-24-05 specifies cable length 4 m; option 24 = unarmored high-temperature FluidLoc; approval 05 - multiple approvals.
330854-040-24-05 is designed for the Bently Nevada 3300 XL 25 mm Proximity Transducer System and 330854-040-24-05 must be used with matched 25 mm family components.
330854-040-24-05 must be installed in a matched 5 m or 9 m electrical path; for 330854-040-24-05, probe lead length plus extension-cable length must equal the Proximitor Sensor system length.
330854-040-24-05 alone does not establish the published system performance; for 330854-040-24-05, the official range and scale factor apply to the complete matched probe, cable and Proximitor Sensor under the datasheet target and test conditions.
330854-040-24-05 has the component-specific official temperature statement shown in the technical table: -35 to +200 deg C.
330854-040-24-05 carries order option 05: no approvals / safe-area option; final site acceptance for 330854-040-24-05 must follow the unit marking and applicable certificate.
330854-040-24-05 is a component of the 3300 XL 25 mm system used for differential expansion on mid-size to large steam turbines.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
