330876-01-90-00-00 Bently Nevada 50 mm Proximity Probe
330876-01-90-00-00

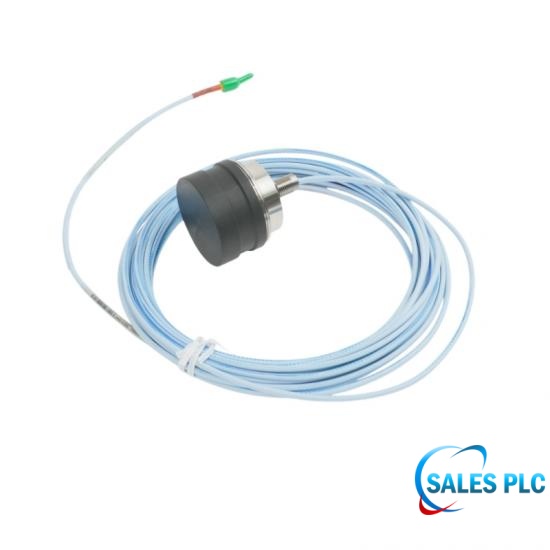

330876-01-90-00-00 is a Bently Nevada 3300 XL 50 mm proximity probe with 1/2-20 threaded case, a 9 m high-temperature FluidLoc lead, no armor, and no agency approvals (safe-area option). 330876-01-90-00-00 is one component of a matched 50 mm transducer system for steam-turbine expansion measurement; 330876-01-90-00-00 alone does not deliver complete-system performance.
Scope note: 330876-01-90-00-00 identifies 3300 XL 50 mm proximity probe only. Complete-system performance is labeled separately and does not apply to 330876-01-90-00-00 alone.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685proximity probe
330876-01-90-00-00 is only the listed proximity probe; 330876-01-90-00-00 must be matched with the correct 50 mm probe, cable path and Proximitor Sensor configuration.
330876-01-90-00-00 does not independently provide the published complete-system range or scale factor. The official 27.9 mm range and 394 mV/mm average scale factor apply only to a complete matched 330876/330877/330878 chain under the published target and test conditions.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Exact model / part number | 330876-01-90-00-00 |
| Component type | 3300 XL 50 mm proximity probe only |
| Compatible transducer family | 3300 XL 50 mm components only |
| Decoded order options | case option 01 = 1/2-20 threaded case; probe lead 9 m; no armor; approval 00 - no approvals / safe-area option |
| Required total electrical/system length | 9 m system; connect directly to the 9 m Proximitor Sensor |
| Agency option | 00 - no approvals / safe-area option |
| Probe lead construction | High-temperature FluidLoc |
| Probe tip material | PPS |
| Probe case material | AISI 304 stainless steel |
| Probe temperature | -35 to +200 deg C continuously; +250 deg C for less than 24 hours |
| Official document | 174014 Rev. L |
| Complete matched system - components | 330876 probe + optional 330877 extension cable + 330878 Proximitor Sensor |
| Complete matched system - linear range | 27.9 mm (1100 mil), approximately 1.3 to 29.2 mm gap and -1.5 to -12.5 Vdc |
| Complete matched system - average scale factor | 394 mV/mm (10 mV/mil) nominal |
| Complete matched system - DSL | Less than +/-0.74 mm (+/-29 mil) |
| Complete matched system - electrical lengths | 5 m or 9 m including any extension cable |
| Complete matched system - target basis | Bently Nevada AISI 4140 steel, flat target at least 102 mm diameter |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
330876-01-90-00-00 is a Bently Nevada 3300 XL 50 mm proximity probe with 1/2-20 threaded case, a 9 m high-temperature FluidLoc lead, no armor, and no agency approvals (safe-area option).
330876-01-90-00-00 specifies case option 01 = 1/2-20 threaded case; probe lead 9 m; no armor; approval 00 - no approvals / safe-area option.
330876-01-90-00-00 is designed for the Bently Nevada 3300 XL 50 mm Proximity Transducer System and 330876-01-90-00-00 must be used with matched 50 mm family components.
330876-01-90-00-00 must be installed in a matched 5 m or 9 m electrical path; for 330876-01-90-00-00, probe lead length plus extension-cable length must equal the Proximitor Sensor system length.
330876-01-90-00-00 alone does not establish the published system performance; for 330876-01-90-00-00, the official range and scale factor apply to the complete matched probe, cable and Proximitor Sensor under the datasheet target and test conditions.
330876-01-90-00-00 has the component-specific official temperature statement shown in the technical table: -35 to +200 deg C continuously; +250 deg C for less than 24 hours.
330876-01-90-00-00 carries order option 00: no approvals / safe-area option; final site acceptance for 330876-01-90-00-00 must follow the unit marking and applicable certificate.
330876-01-90-00-00 is a component of the 3300 XL 50 mm system used for differential or rotor expansion on large steam turbines.
Send the complete component and matching system part numbers, required electrical length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
