330880-00-20-038-00-02 Bently Nevada PROXPAC XL Housing
330880-00-20-038-00-02

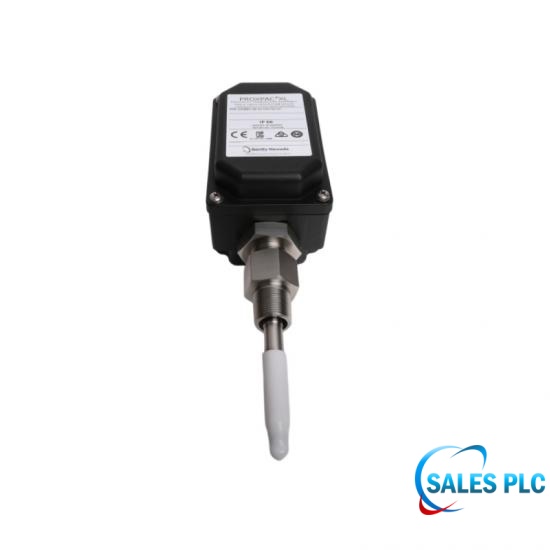

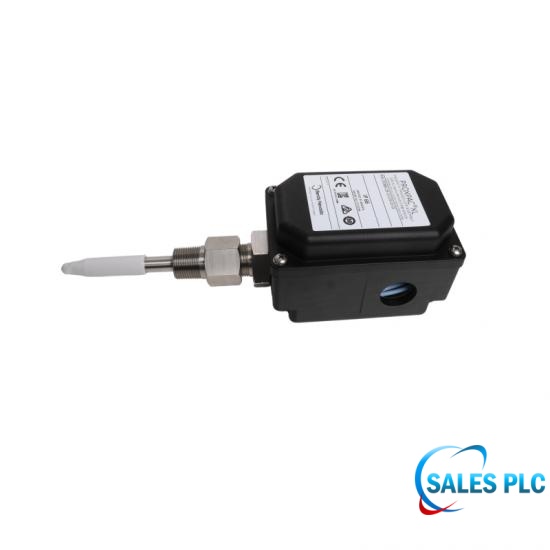

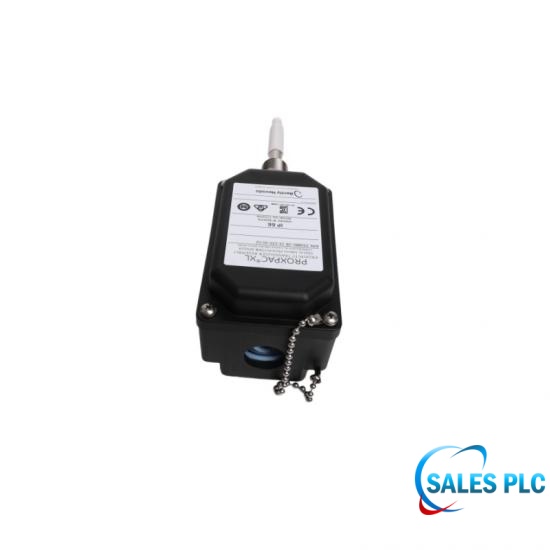

330880-00-20-038-00-02 is a Bently Nevada PROXPAC XL english assembly configured with no probe; Proximitor Sensor without approvals, 2.0 in standoff adapter, 3.8 in probe penetration, no fittings; two plugs and two washers, and 3/4-14 NPT mounting thread. 330880-00-20-038-00-02 includes the PROXPAC housing and integrated Proximitor Sensor but no probe. 330880-00-20-038-00-02 is not a complete sensing assembly until the required 1.0 m 3300 XL 8 mm probe is installed. The PROXPAC XL housing is a UV-resistant, glass-reinforced PPS enclosure rated Type 4X and IP66.
Scope note: 330880-00-20-038-00-02 includes the PROXPAC housing and integrated Proximitor Sensor but no probe. 330880-00-20-038-00-02 is not a complete sensing assembly until the required 1.0 m 3300 XL 8 mm probe is installed.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Officially decoded PROXPAC XL housing/Proximitor configuration; the required probe is not included.
330880-00-20-038-00-02 decodes to no probe; Proximitor Sensor without approvals, 2.0 in standoff adapter, 3.8 in probe penetration, no fittings; two plugs and two washers, and 3/4-14 NPT mounting thread.
330880-00-20-038-00-02 includes the PROXPAC housing and integrated Proximitor Sensor but no probe. 330880-00-20-038-00-02 is not a complete sensing assembly until the required 1.0 m 3300 XL 8 mm probe is installed.
330880-00-20-038-00-02 uses the english ordering table in 178554 Rev. E. If the B plus C dimensions exceed 305 mm (12.0 in), the probe sleeve requires additional support near the probe.
| Model / part number | 330880-00-20-038-00-02 |
|---|---|
| Product family | PROXPAC XL Proximity Transducer Assembly |
| Ordering table | English |
| Probe / approvals option | No probe; Proximitor Sensor without approvals |
| Assembly contents | Housing plus integrated Proximitor Sensor; no probe |
| Standoff adapter | 2.0 in standoff adapter |
| Probe penetration | 3.8 in probe penetration |
| Fittings | No fittings; two plugs and two washers |
| Mounting thread | 3/4-14 NPT mounting thread |
| Housing rating | Type 4X and IP66 |
| Housing material | UV-resistant, glass-reinforced PPS thermoplastic containing conductive fibers |
| Sleeve material | AISI 304 stainless steel |
| Outer sleeve / screws | AISI 303 stainless steel |
| Integrated Proximitor input | One 3300 XL 8 mm proximity probe with 1.0 m integral cable |
| Power without barriers | -17.5 to -26 Vdc; 12 mA maximum |
| Power with barriers | -23 to -26 Vdc |
| Output resistance | 50 ohm |
| Field wiring | 0.2-1.5 mm2 (16-24 AWG); recommended three-conductor shielded triax; up to 305 m (1000 ft) |
| Housing / Proximitor operating temperature | -52 deg C to +100 deg C (-62 deg F to +212 deg F) |
| PROXPAC storage temperature | -52 deg C to +105 deg C (-62 deg F to +221 deg F) |
| Humidity | 100% condensing, non-submersible, when connectors are protected and the housing is properly sealed |
| Official source | Baker Hughes datasheet 178554 Rev. E |
| Complete-system System composition | For the complete matched PROXPAC XL system associated with 330880-00-20-038-00-02 (system-only; not an isolated housing or sensor rating): the spare housing/Proximitor configuration must first be completed with the required 1.0 m 3300 XL 8 mm probe; no extension cable is used between the probe and integrated Proximitor Sensor. |
| Complete-system Linear range | For the complete matched PROXPAC XL system associated with 330880-00-20-038-00-02 (system-only; not an isolated housing or sensor rating): 2.0 mm (80 mil), approximately 0.25 to 2.3 mm and approximately -1 to -17 Vdc. |
| Complete-system Recommended gap | For the complete matched PROXPAC XL system associated with 330880-00-20-038-00-02 (system-only; not an isolated housing or sensor rating): 1.27 mm (50 mil). |
| Complete-system Incremental scale factor | For the complete matched PROXPAC XL system associated with 330880-00-20-038-00-02 (system-only; not an isolated housing or sensor rating): 7.87 V/mm (200 mV/mil), +/-5% including interchangeability error under the published conditions. |
| Complete-system Linearity | For the complete matched PROXPAC XL system associated with 330880-00-20-038-00-02 (system-only; not an isolated housing or sensor rating): deviation from best fit straight line is less than +/-0.025 mm (+/-1 mil) for the standard 1.0 m system under the published conditions. |
| Complete-system Frequency response | For the complete matched PROXPAC XL system associated with 330880-00-20-038-00-02 (system-only; not an isolated housing or sensor rating): 0 to 10 kHz, +0/-3 dB, with up to 305 m (1000 ft) of field wiring. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
330880-00-20-038-00-02 is a Bently Nevada PROXPAC XL english assembly; 330880-00-20-038-00-02 includes the PROXPAC housing and integrated Proximitor Sensor but no probe. 330880-00-20-038-00-02 is not a complete sensing assembly until the required 1.0 m 3300 XL 8 mm probe is installed.
330880-00-20-038-00-02 uses option 00, meaning no probe; Proximitor Sensor without approvals.
330880-00-20-038-00-02 specifies 2.0 in standoff adapter through ordering field BB.
330880-00-20-038-00-02 specifies 3.8 in probe penetration through ordering field CCC.
330880-00-20-038-00-02 specifies no fittings; two plugs and two washers and 3/4-14 NPT mounting thread through ordering fields DD and EE.
330880-00-20-038-00-02 includes no probe and uses no extension cable; 330880-00-20-038-00-02 requires the specified 1.0 m 3300 XL 8 mm probe before becoming a complete sensing assembly.
The 2 mm range and 7.87 V/mm scale factor apply only to the complete matched PROXPAC XL system associated with 330880-00-20-038-00-02, not to an isolated housing or integrated sensor from 330880-00-20-038-00-02.
330880-00-20-038-00-02 has a Type 4X/IP66 housing and a -52 deg C to +100 deg C housing/Proximitor operating range; 330880-00-20-038-00-02 requires -17.5 to -26 Vdc at 12 mA maximum when operated without barriers.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
