330881-28-07-155-03-02 Bently Nevada PROXPAC XL Assembly
330881-28-07-155-03-02

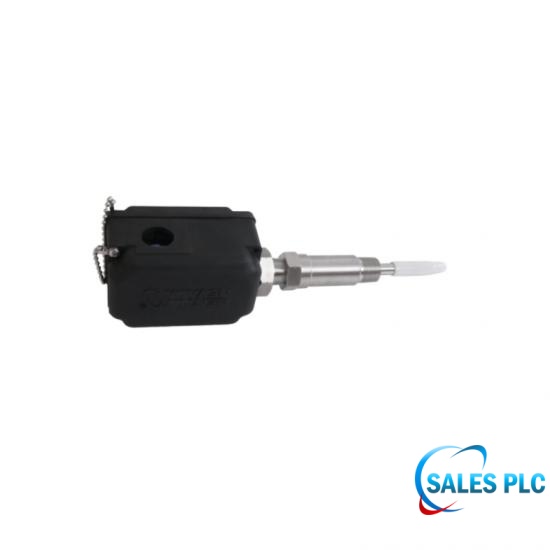

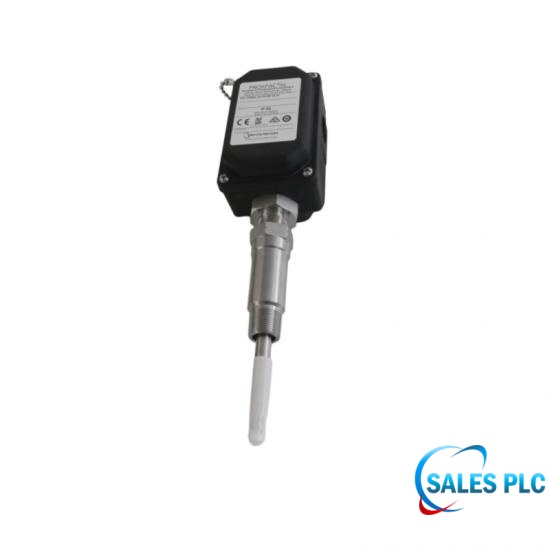

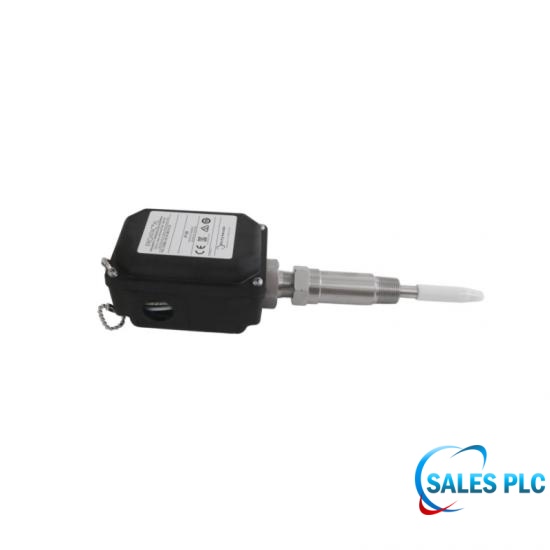

330881-28-07-155-03-02 is a Bently Nevada PROXPAC XL metric assembly configured with 3300 XL 8 mm probe with Multiple Approvals, 70 mm standoff adapter, 155 mm probe penetration, one M20 fitting; two plugs, and 3/4-14 NPT mounting thread. 330881-28-07-155-03-02 includes the 1.0 m 3300 XL 8 mm probe and integrated Proximitor Sensor. 330881-28-07-155-03-02 is a complete self-contained proximity transducer assembly and uses no extension cable between the probe and sensor. The PROXPAC XL housing is a UV-resistant, glass-reinforced PPS enclosure rated Type 4X and IP66.
Scope note: 330881-28-07-155-03-02 includes the 1.0 m 3300 XL 8 mm probe and integrated Proximitor Sensor. 330881-28-07-155-03-02 is a complete self-contained proximity transducer assembly and uses no extension cable between the probe and sensor.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Officially decoded complete PROXPAC XL assembly; assembly and system-level data are clearly scoped.
330881-28-07-155-03-02 decodes to 3300 XL 8 mm probe with Multiple Approvals, 70 mm standoff adapter, 155 mm probe penetration, one M20 fitting; two plugs, and 3/4-14 NPT mounting thread.
330881-28-07-155-03-02 includes the 1.0 m 3300 XL 8 mm probe and integrated Proximitor Sensor. 330881-28-07-155-03-02 is a complete self-contained proximity transducer assembly and uses no extension cable between the probe and sensor.
330881-28-07-155-03-02 uses the metric ordering table in 178554 Rev. E. If the B plus C dimensions exceed 305 mm (12.0 in), the probe sleeve requires additional support near the probe.
| Model / part number | 330881-28-07-155-03-02 |
|---|---|
| Product family | PROXPAC XL Proximity Transducer Assembly |
| Ordering table | Metric |
| Probe / approvals option | 3300 XL 8 mm probe with Multiple Approvals |
| Assembly contents | 1.0 m 3300 XL 8 mm probe plus integrated Proximitor Sensor |
| Standoff adapter | 70 mm standoff adapter |
| Probe penetration | 155 mm probe penetration |
| Fittings | One M20 fitting; two plugs |
| Mounting thread | 3/4-14 NPT mounting thread |
| Housing rating | Type 4X and IP66 |
| Housing material | UV-resistant, glass-reinforced PPS thermoplastic containing conductive fibers |
| Sleeve material | AISI 304 stainless steel |
| Outer sleeve / screws | AISI 303 stainless steel |
| Integrated Proximitor input | One 3300 XL 8 mm proximity probe with 1.0 m integral cable |
| Included probe tip / case | PPS tip; AISI 304 stainless-steel case |
| Included probe cable | 1.0 m, 75 ohm triaxial, FEP insulated |
| Included probe connector | Gold-plated brass ClickLoc |
| Included probe tensile strength | 330 N (75 lb) maximum between cable and case |
| Included probe temperature | -52 deg C to +177 deg C; sustained exposure below -34 deg C may damage the pressure seal |
| Power without barriers | -17.5 to -26 Vdc; 12 mA maximum |
| Power with barriers | -23 to -26 Vdc |
| Output resistance | 50 ohm |
| Field wiring | 0.2-1.5 mm2 (16-24 AWG); recommended three-conductor shielded triax; up to 305 m (1000 ft) |
| Housing / Proximitor operating temperature | -52 deg C to +100 deg C (-62 deg F to +212 deg F) |
| PROXPAC storage temperature | -52 deg C to +105 deg C (-62 deg F to +221 deg F) |
| Humidity | 100% condensing, non-submersible, when connectors are protected and the housing is properly sealed |
| Official source | Baker Hughes datasheet 178554 Rev. E |
| Complete-system System composition | For the complete matched PROXPAC XL system associated with 330881-28-07-155-03-02 (system-only; not an isolated housing or sensor rating): the ordered assembly includes the required 1.0 m 3300 XL 8 mm probe; no extension cable is used between the probe and integrated Proximitor Sensor. |
| Complete-system Linear range | For the complete matched PROXPAC XL system associated with 330881-28-07-155-03-02 (system-only; not an isolated housing or sensor rating): 2.0 mm (80 mil), approximately 0.25 to 2.3 mm and approximately -1 to -17 Vdc. |
| Complete-system Recommended gap | For the complete matched PROXPAC XL system associated with 330881-28-07-155-03-02 (system-only; not an isolated housing or sensor rating): 1.27 mm (50 mil). |
| Complete-system Incremental scale factor | For the complete matched PROXPAC XL system associated with 330881-28-07-155-03-02 (system-only; not an isolated housing or sensor rating): 7.87 V/mm (200 mV/mil), +/-5% including interchangeability error under the published conditions. |
| Complete-system Linearity | For the complete matched PROXPAC XL system associated with 330881-28-07-155-03-02 (system-only; not an isolated housing or sensor rating): deviation from best fit straight line is less than +/-0.025 mm (+/-1 mil) for the standard 1.0 m system under the published conditions. |
| Complete-system Frequency response | For the complete matched PROXPAC XL system associated with 330881-28-07-155-03-02 (system-only; not an isolated housing or sensor rating): 0 to 10 kHz, +0/-3 dB, with up to 305 m (1000 ft) of field wiring. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
330881-28-07-155-03-02 is a Bently Nevada PROXPAC XL metric assembly; 330881-28-07-155-03-02 includes the 1.0 m 3300 XL 8 mm probe and integrated Proximitor Sensor. 330881-28-07-155-03-02 is a complete self-contained proximity transducer assembly and uses no extension cable between the probe and sensor.
330881-28-07-155-03-02 uses option 28, meaning 3300 XL 8 mm probe with Multiple Approvals.
330881-28-07-155-03-02 specifies 70 mm standoff adapter through ordering field BB.
330881-28-07-155-03-02 specifies 155 mm probe penetration through ordering field CCC.
330881-28-07-155-03-02 specifies one M20 fitting; two plugs and 3/4-14 NPT mounting thread through ordering fields DD and EE.
330881-28-07-155-03-02 includes a 1.0 m 3300 XL 8 mm probe and uses no extension cable because the Proximitor Sensor is integrated.
The 2 mm range and 7.87 V/mm scale factor apply only to the complete matched PROXPAC XL system associated with 330881-28-07-155-03-02, not to an isolated housing or integrated sensor from 330881-28-07-155-03-02.
330881-28-07-155-03-02 has a Type 4X/IP66 housing and a -52 deg C to +100 deg C housing/Proximitor operating range; 330881-28-07-155-03-02 requires -17.5 to -26 Vdc at 12 mA maximum when operated without barriers.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
