330901-14-43-10-02-05 Bently Nevada NSv Proximity Probe
330901-14-43-10-02-05

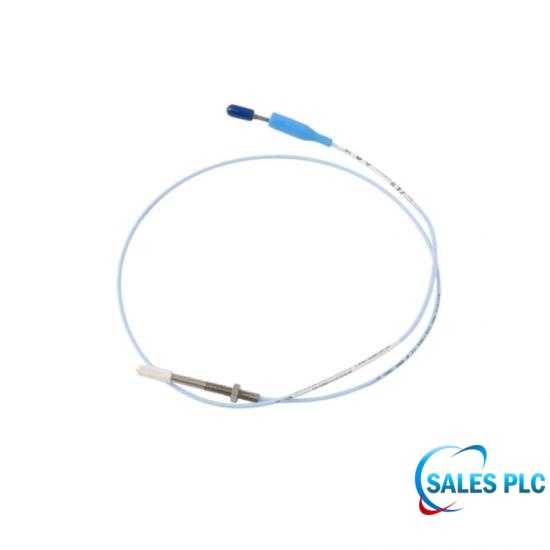

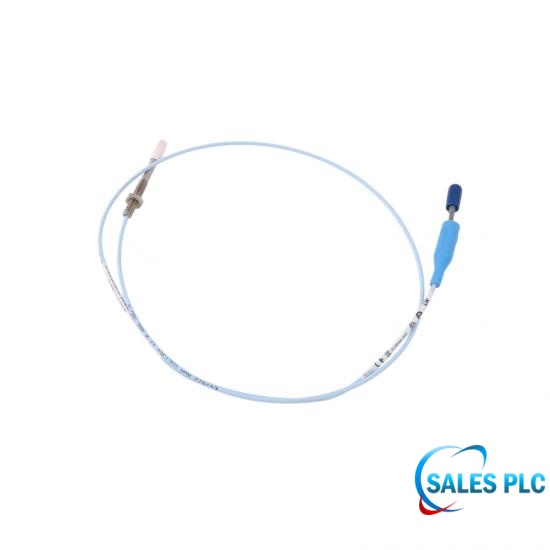

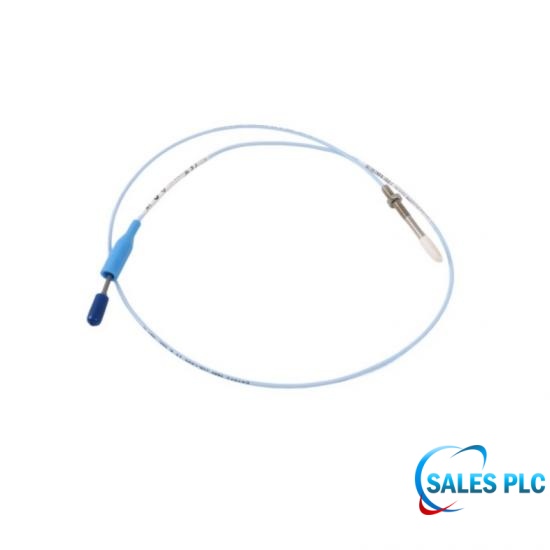

330901-14-43-10-02-05 is a Bently Nevada 3300 NSv standard-mount proximity probe with 1/4-28 UNF case threads and no stainless-steel armor. This ordering configuration has 1.4 in unthreaded length, 4.3 in overall case length, 1.0 m (39 in) total lead length, and miniature coaxial ClickLoc connector; standard cable; no connector protector specified. 330901-14-43-10-02-05 is the probe component of a matched 3300 XL NSv Proximity Transducer System; an appropriate NSv extension cable and 330980 Proximitor Sensor are required when applicable to achieve the published complete-system performance.
Scope note: 330901-14-43-10-02-05 identifies the NSv probe component only. The 1.5 mm range and 7.87 V/mm scale factor are complete matched-system specifications.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 181501176853300 NSv standard-mount proximity probe
330901-14-43-10-02-05 decodes to 1/4-28 UNF case threads, without stainless-steel armor, 1.4 in unthreaded length, 4.3 in overall case length, 1.0 m (39 in) total lead length, miniature coaxial ClickLoc connector; standard cable; no connector protector specified, and multiple approvals.
330901-14-43-10-02-05 is the probe only. 330901-14-43-10-02-05 does not include an extension cable or 330980 Proximitor Sensor and is not a complete transducer system.
330901-14-43-10-02-05: For a 5.0 m matched system, combine the 1.0 m probe lead with a 4.0 m NSv extension cable; for a 7.0 m matched system, use a 6.0 m NSv extension cable.
| Model / part number | 330901-14-43-10-02-05 |
|---|---|
| Component type | 3300 NSv standard-mount proximity probe; not a complete system |
| Case thread | 1/4-28 UNF |
| Armor | No |
| Unthreaded length | 1.4 in |
| Overall case length | 4.3 in |
| Total probe lead length | 1.0 m (39 in) |
| Connector / cable | Miniature coaxial ClickLoc connector; standard cable; no connector protector specified |
| Agency approval option | Multiple approvals |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 304 stainless steel |
| Probe cable | 75 ohm coaxial, FEP insulated |
| Connector material | Gold-plated brass ClickLoc |
| Operating / storage temperature | -52 deg C to +177 deg C (-62 deg F to +351 deg F) |
| Low-temperature seal caution | Sustained exposure below -34 deg C (-30 deg F) may cause premature pressure-seal failure |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Maximum rated tensile strength | 220 N (50 lb) maximum at the probe case-to-lead and lead-to-extension-connector interfaces; the same rating applies at the probe case-to-armor interface for armored configurations |
| Typical probe weight | Approximately 14-150 g (0.5-5.3 oz) |
| Probe dc resistance | 1.0 m (39 in) lead: 4.2 +/- 0.5 ohm |
| Official source | Baker Hughes datasheet 147385 Rev. R |
| Complete-system System composition | For the complete matched 3300 XL NSv system containing 330901-14-43-10-02-05 (system-only; not a standalone component rating): use a 3300 NSv probe, any required 3300 NSv extension cable, and a matching 3300 XL NSv Proximitor Sensor. |
| Complete-system Linear range | For the complete matched 3300 XL NSv system containing 330901-14-43-10-02-05 (system-only; not a standalone component rating): 1.5 mm (60 mil), approximately 0.25 to 1.75 mm and approximately -1 to -13 Vdc. |
| Complete-system Recommended gap | For the complete matched 3300 XL NSv system containing 330901-14-43-10-02-05 (system-only; not a standalone component rating): 1.0 mm (40 mil). |
| Complete-system Incremental scale factor | For the complete matched 3300 XL NSv system containing 330901-14-43-10-02-05 (system-only; not a standalone component rating): 7.87 V/mm (200 mV/mil), +12.5%/-20% including interchangeability error under the datasheet test conditions. |
| Complete-system Frequency response | For the complete matched 3300 XL NSv system containing 330901-14-43-10-02-05 (system-only; not a standalone component rating): 0 to 10 kHz, +0/-3 dB typical, with up to 305 m (1000 ft) of field wiring. |
| Complete-system Calibration target | For the complete matched 3300 XL NSv system containing 330901-14-43-10-02-05 (system-only; not a standalone component rating): factory calibration is to AISI 4140 steel by default; calibration to other target materials is available on request. |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
330901-14-43-10-02-05 is a Bently Nevada 3300 NSv standard-mount proximity probe, not a complete transducer system.
330901-14-43-10-02-05 specifies 1/4-28 UNF, without stainless-steel armor, 1.4 in, 4.3 in, 1.0 m (39 in), miniature coaxial ClickLoc connector; standard cable; no connector protector specified, and multiple approvals.
330901-14-43-10-02-05 uses 1/4-28 UNF case threads and is supplied without stainless-steel armor.
330901-14-43-10-02-05 has 1.4 in unthreaded length, 4.3 in overall case length, and 1.0 m (39 in) total lead length.
330901-14-43-10-02-05 uses miniature coaxial ClickLoc connector; standard cable; no connector protector specified.
330901-14-43-10-02-05 cannot form the complete published system by itself; 330901-14-43-10-02-05 must be used with the appropriate NSv extension cable when required and a matching 330980 Proximitor Sensor.
330901-14-43-10-02-05 alone is not assigned those complete-system ratings; the 1.5 mm range and 7.87 V/mm scale factor apply to the matched 3300 XL NSv transducer system under the conditions in Baker Hughes datasheet 147385 Rev. R.
330901-14-43-10-02-05 has a probe operating and storage range of -52 deg C to +177 deg C and a 25.4 mm minimum bend radius; sustained exposure of 330901-14-43-10-02-05 below -34 deg C may cause premature pressure-seal failure.
Send the complete component and matching system part numbers, required electrical length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
