330903-00-04-05-02-CN Bently Nevada NSv Probe
330903-00-04-05-02-CN

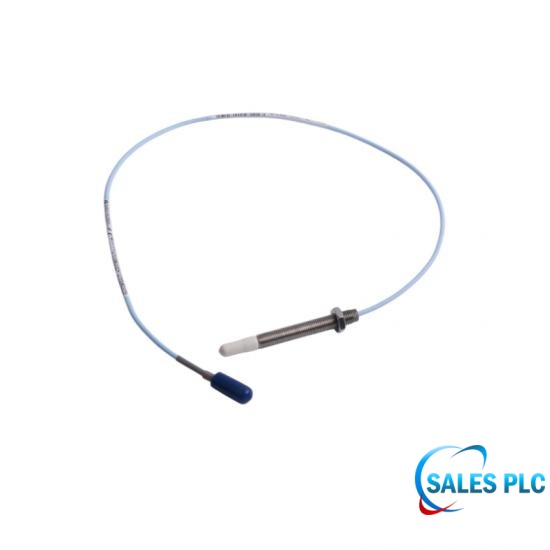

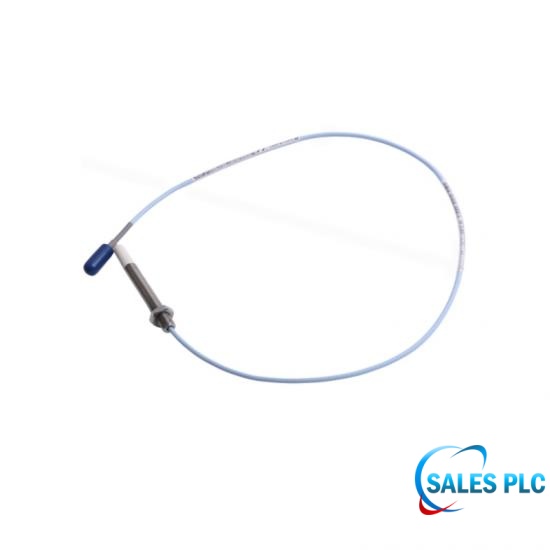

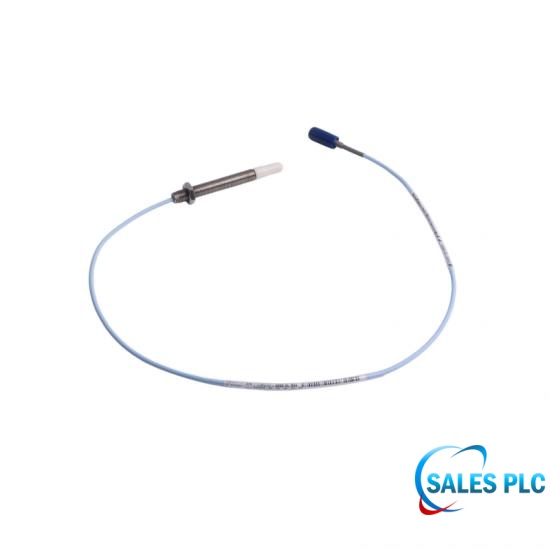

330903-00-04-05-02-CN is a Bently Nevada 3300 NSv M8x1 standard-mount proximity probe without stainless-steel armor. It has 0 mm unthreaded length, 40 mm overall case length, 0.5 m (20 in) total lead length, and miniature coaxial ClickLoc connector; standard cable; no connector protector. The CN suffix is supported by the current Baker Hughes country-option guide. 330903-00-04-05-02-CN is a probe component, not a complete transducer system; use the required extension cable and matching 330980 Proximitor Sensor.
Scope note: Claims are limited to the corrected exact OEM identity and documented component configuration. Complete-system compatibility and performance require the correctly matched installed system.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Product identity corrected from the previous inventory classification. 3300 NSv M8x1 standard-mount proximity probe without stainless-steel armor.
330903-00-04-05-02-CN decodes to M8x1 threads, without stainless-steel armor, 0 mm unthreaded length, 40 mm overall case length, 0.5 m (20 in) total lead length, miniature coaxial ClickLoc connector; standard cable; no connector protector, and the CN country-specific ordering option.
330903-00-04-05-02-CN is the probe only. 330903-00-04-05-02-CN does not include an extension cable, 330980 Proximitor Sensor, monitor, or field wiring.
330903-00-04-05-02-CN: For a 5.0 m matched system use a 4.5 m extension cable; for a 7.0 m matched system use a 6.5 m extension cable.
330903-00-04-05-02-CN uses a CN country-specific ordering suffix supported for base P/N 330903 by 108M1756 Rev. AV. This does not replace checking the applicable certificate, installation drawing, or local requirements.
| Model / part number | 330903-00-04-05-02-CN |
|---|---|
| Component type | 3300 NSv standard-mount proximity probe; not a complete system |
| Case thread | M8x1 |
| Armor | without stainless-steel armor |
| Unthreaded length | 0 mm |
| Overall case length | 40 mm |
| Total probe lead length | 0.5 m (20 in) |
| Connector / cable | miniature coaxial ClickLoc connector; standard cable; no connector protector |
| Country-specific ordering option | CN country-specific ordering option (China); certificate scope and installation applicability must be confirmed for the exact installation |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 304 stainless steel |
| Operating / storage temperature | -52 deg C to +177 deg C (-62 deg F to +351 deg F) |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Complete-system System composition | For the complete matched 3300 XL NSv system containing 330903-00-04-05-02-CN (system-only; not a standalone component rating): use a compatible NSv probe, any required NSv extension cable, and a matching 330980 Proximitor Sensor. |
| Complete-system Linear range | For the complete matched 3300 XL NSv system containing 330903-00-04-05-02-CN (system-only; not a standalone component rating): 1.5 mm (60 mil), approximately 0.25 to 1.75 mm and approximately -1 to -13 Vdc. |
| Complete-system Recommended gap | For the complete matched 3300 XL NSv system containing 330903-00-04-05-02-CN (system-only; not a standalone component rating): 1.0 mm (40 mil). |
| Complete-system Incremental scale factor | For the complete matched 3300 XL NSv system containing 330903-00-04-05-02-CN (system-only; not a standalone component rating): 7.87 V/mm (200 mV/mil), +12.5%/-20% including interchangeability error under the datasheet conditions. |
| Complete-system Frequency response | For the complete matched 3300 XL NSv system containing 330903-00-04-05-02-CN (system-only; not a standalone component rating): 0 to 10 kHz, +0/-3 dB typical, with the published field-wiring conditions. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
330903-00-04-05-02-CN is a Bently Nevada 3300 NSv M8x1 standard-mount proximity probe without stainless-steel armor, not a complete transducer system.
330903-00-04-05-02-CN specifies 0 mm unthreaded length and 40 mm overall case length.
330903-00-04-05-02-CN specifies a 0.5 m (20 in) total probe lead.
330903-00-04-05-02-CN uses miniature coaxial ClickLoc connector; standard cable; no connector protector.
330903-00-04-05-02-CN uses the CN country-specific ordering option supported for base P/N 330903 by 108M1756 Rev. AV; certificate scope and installation applicability for 330903-00-04-05-02-CN must still be verified.
No. 330903-00-04-05-02-CN is the probe component; 330903-00-04-05-02-CN does not include the matching extension cable, 330980 Proximitor Sensor, monitor, or field wiring.
330903-00-04-05-02-CN uses this official matching rule: For a 5.0 m matched system use a 4.5 m extension cable; for a 7.0 m matched system use a 6.5 m extension cable.
No. 330903-00-04-05-02-CN alone is not assigned the complete-system range or scale factor; those values apply only to a complete matched NSv system containing 330903-00-04-05-02-CN.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
