330905-00-10-10-02-00 Bently Nevada NSv Proximity Probe
330905-00-10-10-02-00

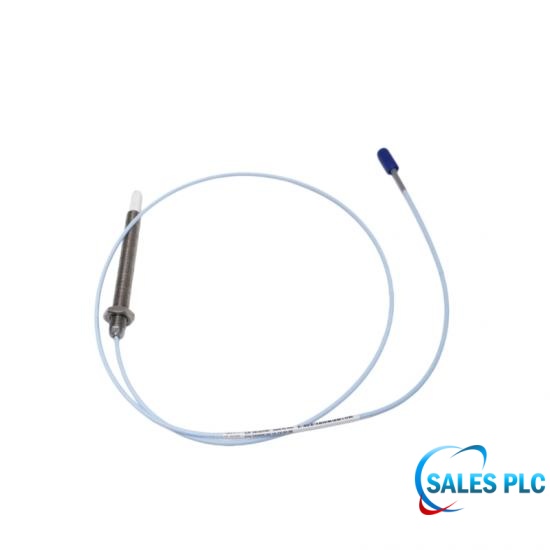

330905-00-10-10-02-00 is a Bently Nevada 3300 NSv standard-mount proximity probe with M10x1 case threads and no stainless-steel armor. This ordering configuration has 0 mm unthreaded length, 100 mm overall case length, 1.0 m (39 in) total lead length, and miniature coaxial ClickLoc connector; standard cable; no connector protector specified. 330905-00-10-10-02-00 is the probe component of a matched 3300 XL NSv Proximity Transducer System; an appropriate NSv extension cable and 330980 Proximitor Sensor are required when applicable to achieve the published complete-system performance.
Scope note: 330905-00-10-10-02-00 is the probe only. 330905-00-10-10-02-00 does not include an extension cable or 330980 Proximitor Sensor and is not a complete transducer system.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Officially decoded NSv probe configuration with component and complete-system specifications kept separate.
330905-00-10-10-02-00 decodes to M10x1 case threads, without stainless-steel armor, 0 mm unthreaded length, 100 mm overall case length, 1.0 m (39 in) total lead length, miniature coaxial ClickLoc connector; standard cable; no connector protector specified, and agency approval option not required.
330905-00-10-10-02-00 is the probe only. 330905-00-10-10-02-00 does not include an extension cable or 330980 Proximitor Sensor and is not a complete transducer system.
330905-00-10-10-02-00: For a 5.0 m matched system, combine the 1.0 m probe lead with a 4.0 m NSv extension cable; for a 7.0 m matched system, use a 6.0 m NSv extension cable.
| Model / part number | 330905-00-10-10-02-00 |
|---|---|
| Component type | 3300 NSv standard-mount proximity probe; not a complete system |
| Case thread | M10x1 |
| Armor | No |
| Unthreaded length | 0 mm |
| Overall case length | 100 mm |
| Total probe lead length | 1.0 m (39 in) |
| Connector / cable | Miniature coaxial ClickLoc connector; standard cable; no connector protector specified |
| Agency approval option | Agency approval option not required |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 304 stainless steel |
| Probe cable | 75 ohm coaxial, FEP insulated |
| Connector material | Gold-plated brass ClickLoc |
| Operating / storage temperature | -52 deg C to +177 deg C (-62 deg F to +351 deg F) |
| Low-temperature seal caution | Sustained exposure below -34 deg C (-30 deg F) may cause premature pressure-seal failure |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Maximum rated tensile strength | 220 N (50 lb) maximum at the probe case-to-lead and lead-to-extension-connector interfaces; the same rating applies at the probe case-to-armor interface for armored configurations |
| Typical probe weight | Approximately 14-150 g (0.5-5.3 oz) |
| Probe dc resistance | 1.0 m (39 in) lead: 4.2 +/- 0.5 ohm |
| Official source | Baker Hughes datasheet 147385 Rev. R |
| Complete-system System composition | For the complete matched 3300 XL NSv system containing 330905-00-10-10-02-00 (system-only; not a standalone component rating): use a 3300 NSv probe, any required 3300 NSv extension cable, and a matching 3300 XL NSv Proximitor Sensor. |
| Complete-system Linear range | For the complete matched 3300 XL NSv system containing 330905-00-10-10-02-00 (system-only; not a standalone component rating): 1.5 mm (60 mil), approximately 0.25 to 1.75 mm and approximately -1 to -13 Vdc. |
| Complete-system Recommended gap | For the complete matched 3300 XL NSv system containing 330905-00-10-10-02-00 (system-only; not a standalone component rating): 1.0 mm (40 mil). |
| Complete-system Incremental scale factor | For the complete matched 3300 XL NSv system containing 330905-00-10-10-02-00 (system-only; not a standalone component rating): 7.87 V/mm (200 mV/mil), +12.5%/-20% including interchangeability error under the datasheet test conditions. |
| Complete-system Frequency response | For the complete matched 3300 XL NSv system containing 330905-00-10-10-02-00 (system-only; not a standalone component rating): 0 to 10 kHz, +0/-3 dB typical, with up to 305 m (1000 ft) of field wiring. |
| Complete-system Calibration target | For the complete matched 3300 XL NSv system containing 330905-00-10-10-02-00 (system-only; not a standalone component rating): factory calibration is to AISI 4140 steel by default; calibration to other target materials is available on request. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
330905-00-10-10-02-00 is a Bently Nevada 3300 NSv standard-mount proximity probe, not a complete transducer system.
330905-00-10-10-02-00 specifies M10x1, without stainless-steel armor, 0 mm, 100 mm, 1.0 m (39 in), miniature coaxial ClickLoc connector; standard cable; no connector protector specified, and agency approval option not required.
330905-00-10-10-02-00 uses M10x1 case threads and is supplied without stainless-steel armor.
330905-00-10-10-02-00 has 0 mm unthreaded length, 100 mm overall case length, and 1.0 m (39 in) total lead length.
330905-00-10-10-02-00 uses miniature coaxial ClickLoc connector; standard cable; no connector protector specified.
330905-00-10-10-02-00 cannot form the complete published system by itself; 330905-00-10-10-02-00 must be used with the appropriate NSv extension cable when required and a matching 330980 Proximitor Sensor.
330905-00-10-10-02-00 alone is not assigned those complete-system ratings; the 1.5 mm range and 7.87 V/mm scale factor apply to the matched 3300 XL NSv transducer system under the conditions in Baker Hughes datasheet 147385 Rev. R.
330905-00-10-10-02-00 has a probe operating and storage range of -52 deg C to +177 deg C and a 25.4 mm minimum bend radius; sustained exposure of 330905-00-10-10-02-00 below -34 deg C may cause premature pressure-seal failure.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
