330905-01-08-10-01-00 Bently Nevada NSv Proximity Probe
330905-01-08-10-01-00
Non-armored 3300 NSv probe · M10 x 1 · 10 mm unthreaded · 80 mm case · 1.0 m standard cable · ClickLoc connector protector · option 00
Scope note: 330905-01-08-10-01-00 identifies the NSv probe component. Use only 3300 XL NSv matching rules and system-level performance data.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Non-armored 3300 NSv M10 x 1 Proximity Probe

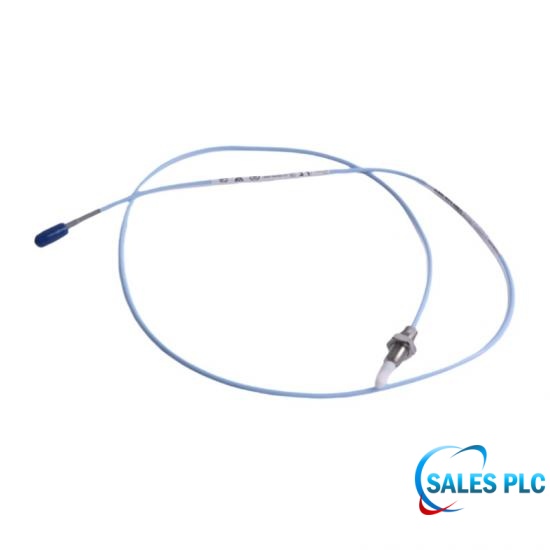

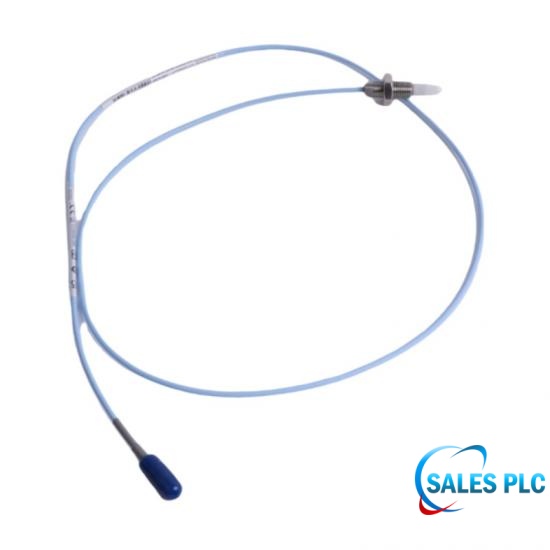

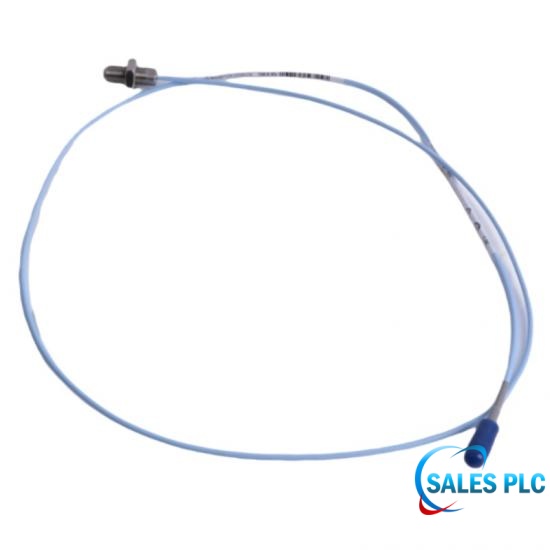

The Bently Nevada 330905-01-08-10-01-00 is a non-armored, standard-mount probe for the 3300 XL NSv proximity transducer family. The official order code specifies an M10 x 1 thread, a 10 mm unthreaded length, an 80 mm overall case length, a 1.0 m integral standard cable, and a miniature coaxial ClickLoc connector with a connector protector.
The NSv family is designed for applications in which counterbore, side-view or rear-view restrictions limit use of standard 5 mm or 8 mm transducer systems. Manufacturer-listed applications include compressors and other fluid-film bearing machines requiring radial vibration or position, axial position, tachometer, zero-speed or Keyphasor phase-reference measurement on small targets or in restricted mounting spaces.
This part number identifies the probe only. A complete 3300 XL NSv system requires a 3300 NSv extension cable and matching 3300 XL NSv Proximitor Sensor. For this 1.0 m probe, a 4.0 m extension cable forms a 5 m system and a 6.0 m extension cable forms a 7 m system; the precise companion options must be verified before ordering.
| Manufacturer | Bently Nevada, a Baker Hughes company |
|---|---|
| Full part number | 330905-01-08-10-01-00 |
| Component scope | 3300 NSv proximity probe only; not a complete transducer system |
| Product family | 3300 XL NSv Proximity Transducer System |
| Mounting / armor | Standard mount; without armor |
| Case / thread | AISI 304 stainless steel; M10 x 1 |
| Unthreaded / case length | 10 mm / 80 mm |
| Total probe length | 1.0 m (39 in) |
| Cable | 75 ohm coaxial, FEP-insulated standard probe cable |
| Connector | Miniature coaxial ClickLoc with connector protector |
| Agency option | 00 - agency approval not required; no Multiple Approvals option selected |
| Probe-tip material | Polyphenylene sulfide (PPS) |
| Nominal probe DC resistance | 4.2 ohm +/-0.5 ohm for 1.0 m probe length |
| Probe operating / storage temperature | -52°C to +177°C (-62°F to +351°F); sustained exposure below -34°C may cause premature pressure-seal failure |
| Minimum cable bend radius | 25.4 mm (1.0 in) |
| Maximum M10 x 1 thread engagement | 15 mm |
| Recommended M10 x 1 probe-case torque | 11.3 N m (100 in-lb); follow manufacturer installation guidance |
| Compatible complete-system lengths | 5 m or 7 m, including extension cable |
| Matching components | 330930 NSv extension-cable family and 330980 XL NSv Proximitor Sensor family; verify exact options |
| Complete-system linear range | 1.5 mm (60 mils), approximately 0.25 to 1.75 mm; not a probe-alone value |
| Complete-system recommended gap | 1.0 mm (40 mils) |
| Complete-system scale factor | 7.87 V/mm (200 mV/mil), +12.5%/-20% including interchangeability error under stated conditions |
| Complete-system frequency response | 0 to 10 kHz, +0/-3 dB typical under stated conditions |
| Official document | Baker Hughes 147385 Rev. R |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
Bently Nevada 330905-01-08-10-01-00 is a non-armored, standard-mount 3300 NSv proximity probe with an M10 x 1 thread, a 10 mm unthreaded section, an 80 mm case, and a 1.0 m integral lead.
In 330905-01-08-10-01-00, 330905 identifies the non-armored M10 x 1 NSv probe; 01 and 08 specify 10 mm unthreaded and 80 mm case lengths; 10 specifies a 1.0 m total length; the second 01 selects standard cable and a ClickLoc connector with connector protector; and the final 00 means no agency-approval option was selected.
No. 330905-01-08-10-01-00 identifies the probe only. A complete 3300 XL NSv system also requires a 3300 NSv extension cable and a correctly matched 3300 XL NSv Proximitor Sensor.
The 1.0 m 330905-01-08-10-01-00 probe requires the appropriate NSv extension cable so that the combined length matches a 5 m or 7 m 3300 XL NSv Proximitor Sensor. Unlike the 3300 XL 8 mm family, the NSv datasheet specifies 5 m and 7 m complete system lengths.
A complete 3300 XL NSv system using 330905-01-08-10-01-00 is intended for tight-clearance and small-target applications, including compressor machinery, radial vibration or position, axial position, tachometer or zero-speed, and Keyphasor phase-reference measurement.
Under the manufacturer’s stated conditions, a complete 3300 XL NSv system using 330905-01-08-10-01-00 has a 1.5 mm linear range and a nominal 7.87 V/mm (200 mV/mil) incremental scale factor, with the published +12.5%/-20% system tolerance. These are complete-system values, not probe-alone specifications.
The NSv probe-family operating and storage range applicable to 330905-01-08-10-01-00 is -52°C to +177°C (-62°F to +351°F), with a warning about sustained exposure below -34°C (-30°F). Its final -00 means the multiple-approvals option was not selected.
The 3300 NSv probe family, including 330905-01-08-10-01-00, is mechanically and electrically compatible with previous 3300 RAM probes and extension cables. Upgrades from 3000-series or 7000-series systems require replacement with NSv probe, extension cable and Proximitor components; the complete replacement configuration must be checked.
Send the complete component and matching system part numbers, required electrical length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
