330907-05-30-05-02-CN Bently Nevada NSv Reverse Probe
330907-05-30-05-02-CN

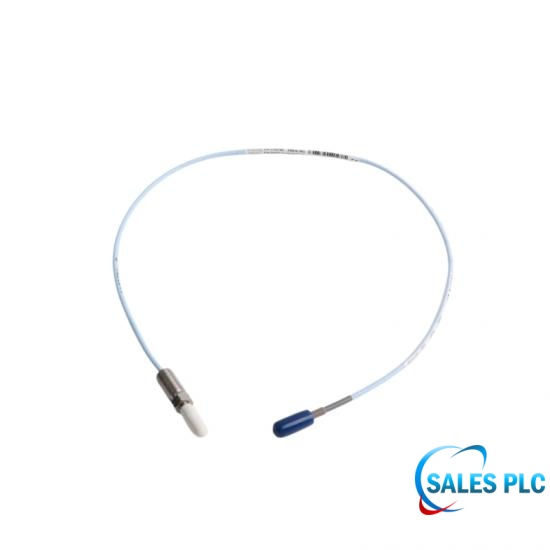

330907-05-30-05-02-CN is a Bently Nevada 3300 NSv M10x1 reverse-mount proximity probe with the official fixed 05-30 geometry, a 0.5 m lead, and a miniature coaxial ClickLoc connector on standard cable. The CN suffix is supported by the current Baker Hughes country-option guide. 330907-05-30-05-02-CN is the probe component only, not a complete transducer system.
Scope note: Claims are limited to the corrected exact OEM identity and documented component configuration. Complete-system compatibility and performance require the correctly matched installed system.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Product identity corrected from the previous inventory classification. 3300 NSv M10x1 reverse-mount proximity probe.
330907-05-30-05-02-CN decodes to the M10x1 330907 reverse-mount format with fixed 05-30 geometry, a 0.5 m lead, standard cable with miniature coaxial ClickLoc connector, and the CN country-specific ordering option.
330907-05-30-05-02-CN is the reverse-mount probe only; 330907-05-30-05-02-CN does not include an extension cable, Proximitor Sensor, monitor, or field wiring.
330907-05-30-05-02-CN uses CN as supported for 330907 by 108M1756 Rev. AV; the applicable certificate and installation conditions must be checked.
| Model / part number | 330907-05-30-05-02-CN |
|---|---|
| Component type | 3300 NSv reverse-mount proximity probe; not a complete system |
| Case thread | M10x1 |
| Reverse-mount geometry | Official fixed 05-30 geometry for base 330907 |
| Total probe lead length | 0.5 m (20 in) |
| Connector / cable | Miniature coaxial ClickLoc connector; standard cable |
| Country-specific ordering option | CN country-specific ordering option (China); certificate scope and installation applicability must be confirmed for the exact installation |
| Probe tip material | Polyphenylene sulfide (PPS) |
| Probe case material | AISI 304 stainless steel |
| Operating / storage temperature | -52 deg C to +177 deg C (-62 deg F to +351 deg F) |
| Complete-system System composition | For the complete matched 3300 XL NSv system containing 330907-05-30-05-02-CN (system-only; not a standalone component rating): use a compatible NSv probe, any required NSv extension cable, and a matching 330980 Proximitor Sensor. |
| Complete-system Linear range | For the complete matched 3300 XL NSv system containing 330907-05-30-05-02-CN (system-only; not a standalone component rating): 1.5 mm (60 mil), approximately 0.25 to 1.75 mm and approximately -1 to -13 Vdc. |
| Complete-system Recommended gap | For the complete matched 3300 XL NSv system containing 330907-05-30-05-02-CN (system-only; not a standalone component rating): 1.0 mm (40 mil). |
| Complete-system Incremental scale factor | For the complete matched 3300 XL NSv system containing 330907-05-30-05-02-CN (system-only; not a standalone component rating): 7.87 V/mm (200 mV/mil), +12.5%/-20% including interchangeability error under the datasheet conditions. |
| Complete-system Frequency response | For the complete matched 3300 XL NSv system containing 330907-05-30-05-02-CN (system-only; not a standalone component rating): 0 to 10 kHz, +0/-3 dB typical, with the published field-wiring conditions. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
330907-05-30-05-02-CN is a Bently Nevada 3300 NSv M10x1 reverse-mount proximity probe component, not a complete transducer system.
330907-05-30-05-02-CN uses M10x1 threads and the official fixed 05-30 reverse-mount geometry for base P/N 330907.
330907-05-30-05-02-CN specifies a 0.5 m (20 in) integral probe lead.
330907-05-30-05-02-CN uses a miniature coaxial ClickLoc connector with standard cable.
330907-05-30-05-02-CN uses the CN country-specific ordering option supported for base P/N 330907 by 108M1756 Rev. AV; certificate and installation applicability for 330907-05-30-05-02-CN must still be checked.
No. 330907-05-30-05-02-CN is the reverse-mount probe only; 330907-05-30-05-02-CN does not include an extension cable or Proximitor Sensor.
330907-05-30-05-02-CN must be combined with the exact extension-cable length required to equal the selected 5.0 m or 7.0 m Proximitor Sensor system length.
No. 330907-05-30-05-02-CN alone is not assigned the complete-system range or scale factor; those values apply only to a complete matched NSv system containing 330907-05-30-05-02-CN.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
