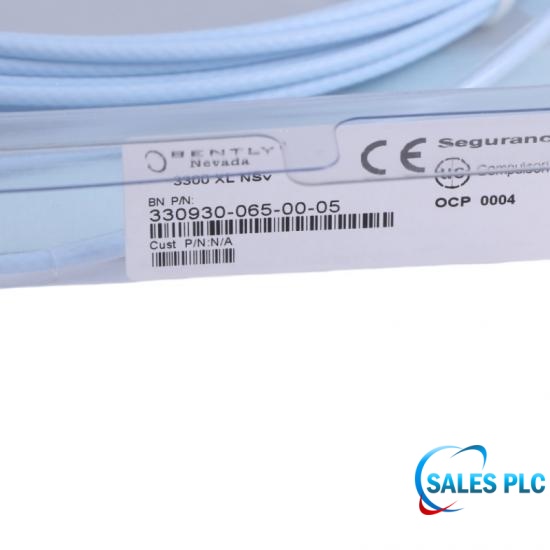

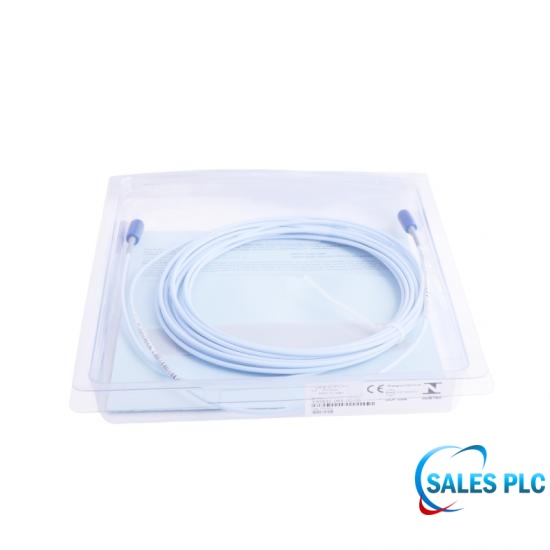

330930-065-00-05 Bently Nevada 3300 NSv Extension Cable
330930-065-00-05

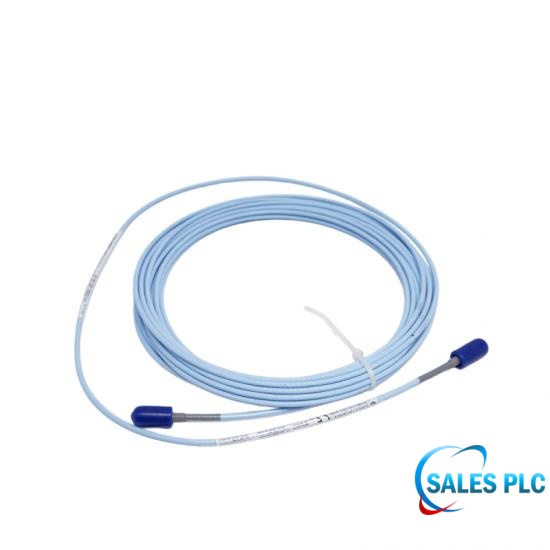

330930-065-00-05 is a 6.5 m (21.3 ft) Bently Nevada 3300 NSv extension cable configured as standard cable without stainless-steel armor or connector protector and multiple approvals. 330930-065-00-05 links a compatible 3300 NSv probe to a 3300 XL NSv Proximitor Sensor. The probe lead plus the extension-cable length must equal the ordered 5.0 m or 7.0 m system length; 330930-065-00-05 is a cable component, not a complete transducer system.
Scope note: 330930-065-00-05 is the extension cable only. 330930-065-00-05 does not include a probe or Proximitor Sensor and is not a complete measurement system.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Officially decoded NSv extension-cable configuration with component and complete-system specifications kept separate.
330930-065-00-05 specifies 6.5 m (21.3 ft), standard cable without stainless-steel armor or connector protector, and multiple approvals.
330930-065-00-05 is the extension cable only. 330930-065-00-05 does not include a probe or Proximitor Sensor and is not a complete measurement system.
330930-065-00-05: Use with a 0.5 m NSv probe lead to produce a 7.0 m matched system.
| Model / part number | 330930-065-00-05 |
|---|---|
| Component type | 3300 NSv extension cable; not a complete system |
| Nominal length | 6.5 m (21.3 ft) |
| Construction | Standard cable without stainless-steel armor or connector protector |
| Agency approval option | Multiple approvals |
| Cable | 75 ohm coaxial, FEP-insulated standard cable |
| Connector material | Gold-plated brass ClickLoc |
| Center-conductor dc resistance | 0.220 ohm/m (0.067 ohm/ft) |
| Shield dc resistance | 0.066 ohm/m (0.020 ohm/ft) |
| Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Minimum bend radius | 25.4 mm (1.0 in) |
| Operating / storage temperature | -52 deg C to +177 deg C (-62 deg F to +351 deg F) |
| Typical cable weight | 64 g/m (0.7 oz/ft) armored; 45 g/m (0.5 oz/ft) non-armored |
| System-length rule | Use with a 0.5 m NSv probe lead to produce a 7.0 m matched system. |
| Official source | Baker Hughes datasheet 147385 Rev. R |
| Complete-system System composition | For the complete matched 3300 XL NSv system containing 330930-065-00-05 (system-only; not a standalone component rating): use a 3300 NSv probe, any required 3300 NSv extension cable, and a matching 3300 XL NSv Proximitor Sensor. |
| Complete-system Linear range | For the complete matched 3300 XL NSv system containing 330930-065-00-05 (system-only; not a standalone component rating): 1.5 mm (60 mil), approximately 0.25 to 1.75 mm and approximately -1 to -13 Vdc. |
| Complete-system Recommended gap | For the complete matched 3300 XL NSv system containing 330930-065-00-05 (system-only; not a standalone component rating): 1.0 mm (40 mil). |
| Complete-system Incremental scale factor | For the complete matched 3300 XL NSv system containing 330930-065-00-05 (system-only; not a standalone component rating): 7.87 V/mm (200 mV/mil), +12.5%/-20% including interchangeability error under the datasheet test conditions. |
| Complete-system Frequency response | For the complete matched 3300 XL NSv system containing 330930-065-00-05 (system-only; not a standalone component rating): 0 to 10 kHz, +0/-3 dB typical, with up to 305 m (1000 ft) of field wiring. |
| Complete-system Calibration target | For the complete matched 3300 XL NSv system containing 330930-065-00-05 (system-only; not a standalone component rating): factory calibration is to AISI 4140 steel by default; calibration to other target materials is available on request. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
330930-065-00-05 is a Bently Nevada 3300 NSv extension cable component, not a complete transducer system.
330930-065-00-05 specifies a nominal cable length of 6.5 m (21.3 ft) through ordering field AAA.
330930-065-00-05 specifies standard cable without stainless-steel armor or connector protector through ordering field BB.
330930-065-00-05 uses the official 05 option: multiple approvals.
330930-065-00-05 connects a compatible 3300 NSv probe to a matching 3300 XL NSv Proximitor Sensor.
For 330930-065-00-05, the probe lead plus 330930-065-00-05 length must equal the 5.0 m or 7.0 m electrical length of the selected Proximitor Sensor; Use with a 0.5 m NSv probe lead to produce a 7.0 m matched system.
No. 330930-065-00-05 is an extension cable; the 1.5 mm range and 7.87 V/mm scale factor apply only to a complete matched 3300 XL NSv system containing 330930-065-00-05.
330930-065-00-05 is covered by the -52 deg C to +177 deg C cable operating and storage range and the 25.4 mm minimum bend radius in Baker Hughes datasheet 147385 Rev. R.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
