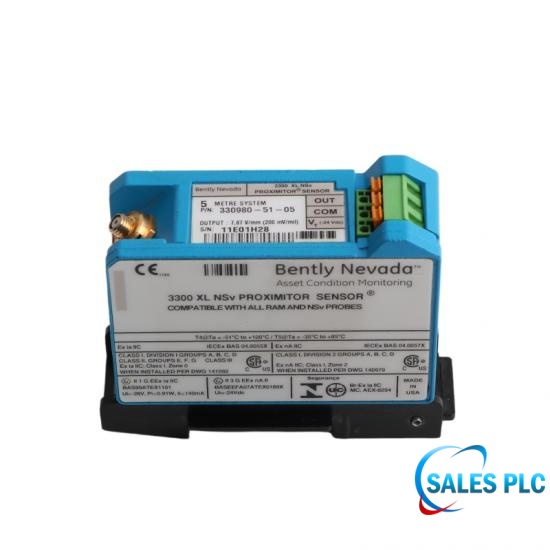

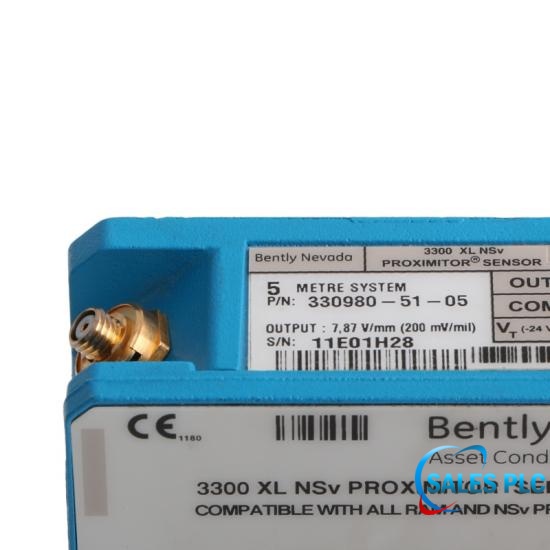

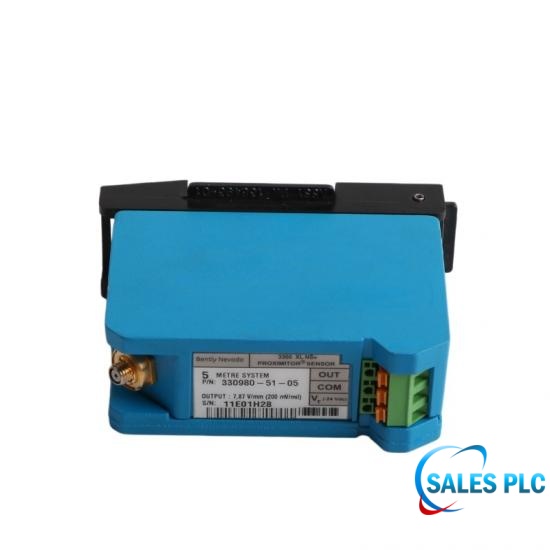

330980-51-05 Bently Nevada 3300 XL NSv Proximitor Sensor
330980-51-05
330980-51-05 is a Bently Nevada 3300 XL NSv Proximitor Sensor configured for a 5.0 m (16.4 ft) total transducer-system length and DIN mount. 330980-51-05 accepts one non-contacting 3300 RAM or 3300 NSv proximity probe with its matching extension cable. 330980-51-05 is the signal-conditioning component, not a complete probe system; the probe and any extension cable must produce the ordered total system length.
Scope note: 330980-51-05 identifies the NSv Proximitor signal-conditioning component only. The published measurement performance belongs to the complete matched system.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 181501176853300 XL NSv Proximitor Sensor
330980-51-05 specifies a 5.0 m (16.4 ft) total transducer-system electrical length, DIN mount, and multiple approvals.
330980-51-05 is the signal-conditioning component only. 330980-51-05 does not include the probe or extension cable.
330980-51-05 includes the DIN mount option identified by the ordering code.
| Model / part number | 330980-51-05 |
|---|---|
| Component type | 3300 XL NSv Proximitor Sensor; signal-conditioning component |
| Matched total system length | 5.0 m (16.4 ft) |
| Mounting | DIN mount |
| Agency approval option | Multiple approvals |
| Sensor input | Accepts one non-contacting 3300 RAM or 3300 NSv proximity probe and extension cable |
| Power without barriers | -17.5 to -26 Vdc; 12 mA maximum |
| Power with barriers | -23 to -26 Vdc |
| Output resistance | 50 ohm |
| Field wiring | 0.2-1.5 mm2 (16-24 AWG); 0.25-0.75 mm2 (18-23 AWG) with ferrules |
| Recommended field cable / maximum run | Three-conductor shielded triad; up to 305 m (1000 ft) to the monitor |
| Material | A380 aluminum |
| Typical weight | 255 g (9 oz) |
| Operating temperature | -52 deg C to +100 deg C (-62 deg F to +212 deg F) |
| Storage temperature | -52 deg C to +105 deg C (-62 deg F to +221 deg F) |
| Humidity | 100% condensing, non-submersible, when connectors are protected |
| Terminal / installation | SpringLoc terminal strips; high-density DIN or panel installation as ordered |
| Official source | Baker Hughes datasheet 147385 Rev. R |
| Complete-system System composition | For the complete matched 3300 XL NSv system containing 330980-51-05 (system-only; not a standalone component rating): use a 3300 NSv probe, any required 3300 NSv extension cable, and a matching 3300 XL NSv Proximitor Sensor. |
| Complete-system Linear range | For the complete matched 3300 XL NSv system containing 330980-51-05 (system-only; not a standalone component rating): 1.5 mm (60 mil), approximately 0.25 to 1.75 mm and approximately -1 to -13 Vdc. |
| Complete-system Recommended gap | For the complete matched 3300 XL NSv system containing 330980-51-05 (system-only; not a standalone component rating): 1.0 mm (40 mil). |
| Complete-system Incremental scale factor | For the complete matched 3300 XL NSv system containing 330980-51-05 (system-only; not a standalone component rating): 7.87 V/mm (200 mV/mil), +12.5%/-20% including interchangeability error under the datasheet test conditions. |
| Complete-system Frequency response | For the complete matched 3300 XL NSv system containing 330980-51-05 (system-only; not a standalone component rating): 0 to 10 kHz, +0/-3 dB typical, with up to 305 m (1000 ft) of field wiring. |
| Complete-system Calibration target | For the complete matched 3300 XL NSv system containing 330980-51-05 (system-only; not a standalone component rating): factory calibration is to AISI 4140 steel by default; calibration to other target materials is available on request. |
The family remains covered by current Baker Hughes documentation. Exact configuration availability, condition and lead time must be confirmed separately; documentation alone is not a lifecycle declaration.
330980-51-05 is a Bently Nevada 3300 XL NSv Proximitor Sensor and is the signal-conditioning component of the transducer system.
330980-51-05 is ordered for a 5.0 m (16.4 ft) total transducer-system length with DIN mount.
330980-51-05 accepts one non-contacting 3300 RAM or 3300 NSv proximity probe and the matching extension cable.
330980-51-05 requires -17.5 to -26 Vdc without barriers at 12 mA maximum, or -23 to -26 Vdc with barriers.
The probe length plus extension-cable length connected to 330980-51-05 must equal the 5.0 m (16.4 ft) total system length ordered for 330980-51-05.
330980-51-05 includes the DIN mount option identified by the ordering code.
The 1.5 mm range and 7.87 V/mm scale factor are published for the complete matched 3300 XL NSv system containing 330980-51-05, not for 330980-51-05 as an isolated component.
330980-51-05 operates from -52 deg C to +100 deg C, supports up to 305 m of recommended shielded triad field wiring to the monitor, and remains non-submersible even when the connectors of 330980-51-05 are protected.
Send the complete component and matching system part numbers, required electrical length, quantity, target material, approval requirements, destination and clear label photos. Availability and condition will be confirmed before quotation.
