330980-71-CN Bently Nevada NSv Proximitor Sensor
330980-71-CN

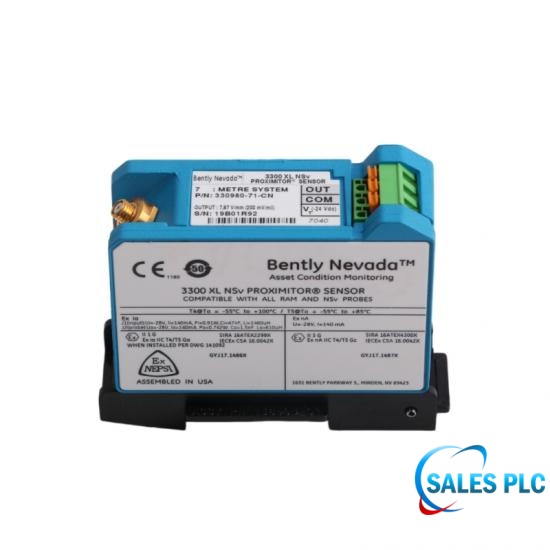

330980-71-CN is a Bently Nevada 3300 XL NSv Proximitor Sensor for a 7.0 m matched transducer-system length with DIN mounting. The CN suffix is supported by the current Baker Hughes country-option guide. 330980-71-CN is the signal-conditioning component only; the compatible NSv probe and any required extension cable are separate.
Scope note: Claims are limited to the corrected exact OEM identity and documented component configuration. Complete-system compatibility and performance require the correctly matched installed system.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685Product identity corrected from the previous inventory classification. 3300 XL NSv Proximitor Sensor, 7.0 m system length, DIN mount.

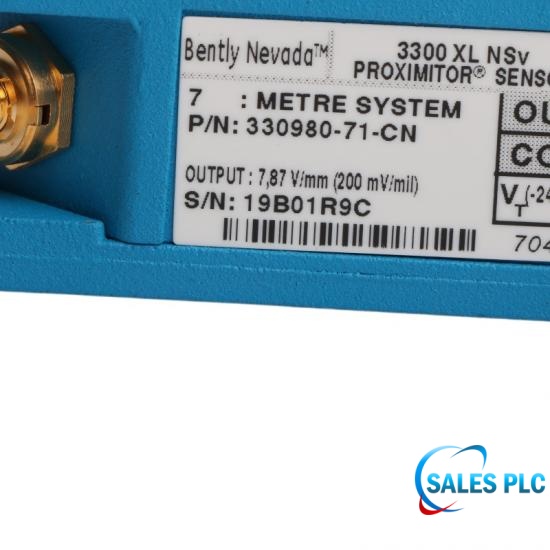

330980-71-CN specifies a 7.0 m total transducer-system electrical length, DIN mounting, and the CN country-specific ordering option.
330980-71-CN does not include the probe, extension cable, monitor, or field wiring.
330980-71-CN uses CN as supported for 330980 by 108M1756 Rev. AV; the applicable certificate and installation conditions must be checked.
| Model / part number | 330980-71-CN |
|---|---|
| Component type | 3300 XL NSv Proximitor Sensor; signal-conditioning component |
| Matched total system length | 7.0 m (23.0 ft) |
| Mounting | DIN mount |
| Country-specific ordering option | CN country-specific ordering option (China); certificate scope and installation applicability must be confirmed for the exact installation |
| Sensor input | One compatible 3300 RAM or 3300 NSv proximity probe and matching extension cable |
| Power without barriers | -17.5 to -26 Vdc; 12 mA maximum |
| Output resistance | 50 ohm |
| Operating temperature | -52 deg C to +100 deg C (-62 deg F to +212 deg F) |
| Complete-system System composition | For the complete matched 3300 XL NSv system containing 330980-71-CN (system-only; not a standalone component rating): use a compatible NSv probe, any required NSv extension cable, and a matching 330980 Proximitor Sensor. |
| Complete-system Linear range | For the complete matched 3300 XL NSv system containing 330980-71-CN (system-only; not a standalone component rating): 1.5 mm (60 mil), approximately 0.25 to 1.75 mm and approximately -1 to -13 Vdc. |
| Complete-system Recommended gap | For the complete matched 3300 XL NSv system containing 330980-71-CN (system-only; not a standalone component rating): 1.0 mm (40 mil). |
| Complete-system Incremental scale factor | For the complete matched 3300 XL NSv system containing 330980-71-CN (system-only; not a standalone component rating): 7.87 V/mm (200 mV/mil), +12.5%/-20% including interchangeability error under the datasheet conditions. |
| Complete-system Frequency response | For the complete matched 3300 XL NSv system containing 330980-71-CN (system-only; not a standalone component rating): 0 to 10 kHz, +0/-3 dB typical, with the published field-wiring conditions. |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
330980-71-CN is a Bently Nevada 3300 XL NSv Proximitor Sensor and the signal-conditioning component of a matched transducer system.
330980-71-CN specifies a 7.0 m (23.0 ft) matched total transducer-system length.
330980-71-CN uses the DIN-mount option encoded by ordering field 71.
330980-71-CN uses the CN country-specific ordering option supported for base P/N 330980 by 108M1756 Rev. AV; certificate and installation applicability for 330980-71-CN must still be checked.
330980-71-CN accepts one compatible 3300 RAM or 3300 NSv proximity probe with its matching extension cable.
No. 330980-71-CN is the Proximitor Sensor component; 330980-71-CN does not include the probe or extension cable.
The probe lead plus extension-cable length connected to 330980-71-CN must equal the 7.0 m total system length ordered for 330980-71-CN.
No. The published NSv range and scale factor apply to the complete matched system containing 330980-71-CN, not to 330980-71-CN in isolation.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
