990-05-XX-01-00 MOD 147202-01 Bently Nevada Transmitter
990-05-XX-01-00 MOD 147202-01

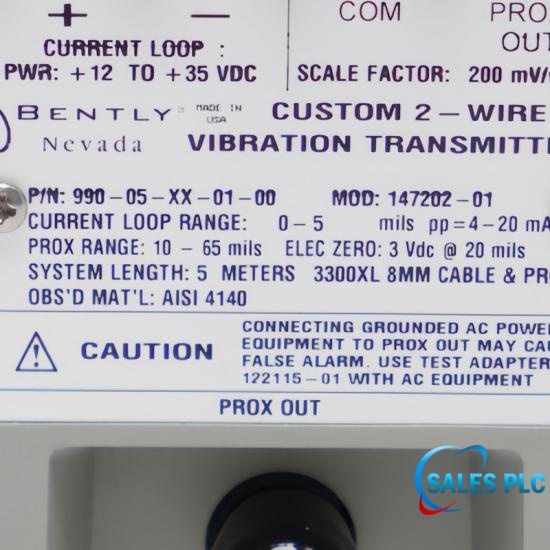

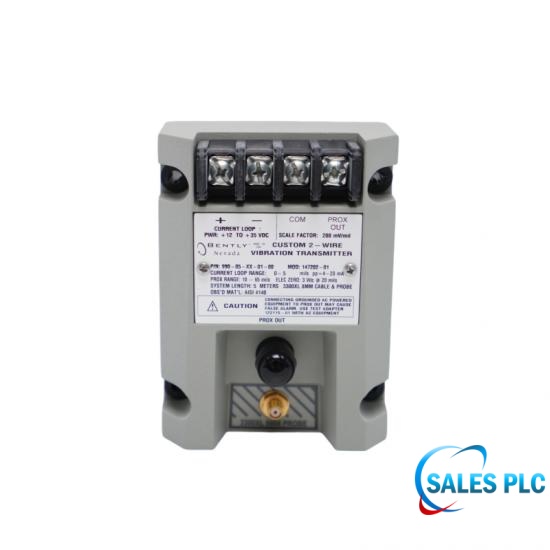

990-05-XX-01-00 MOD 147202-01 is an officially documented modified Bently Nevada 990 vibration-transmitter configuration. Baker Hughes document 141612 Rev. Y identifies 147202-01 as the 4140 / 3300 XL 8 mm / 5.0 m modification and states that the published 990 specifications also apply. 990-05-XX-01-00 MOD 147202-01 converts the compatible external transducer-chain signal to a proportional two-wire 4-20 mA output. The 3300 XL 8 mm probe and cable chain are external components unless the quotation for 990-05-XX-01-00 MOD 147202-01 explicitly includes them.
Scope note: 990-05-XX-01-00 MOD 147202-01 identifies modified loop-powered vibration transmitter. Complete-system performance is labeled separately and does not apply to 990-05-XX-01-00 MOD 147202-01 alone.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales1@amikon.cnWhatsapp/Mob:
+86 18150117685modified loop-powered vibration transmitter
990-05-XX-01-00 MOD 147202-01 is limited to the officially documented 147202-01 modification. 990-05-XX-01-00 MOD 147202-01 must not be described with the standard 3300 NSv chain.
990-05-XX-01-00 MOD 147202-01 contains the transmitter electronics, while the documented external 3300 XL 8 mm probe and cable chain remain separate unless explicitly included in the quotation.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Product family | 990 Vibration Transmitter - officially documented modification |
| Exact full model | 990-05-XX-01-00 MOD 147202-01 |
| Official modification identifier | 147202-01 |
| Official modification identity | AISI 4140 target / 3300 XL 8 mm / 5.0 m |
| Measured variable | Peak-to-peak vibration amplitude |
| Configured full scale | 0-5 mil pp (0-125 um pp) |
| Signal output | 4-20 mAdc, two-wire, proportional to the configured full scale |
| External transducer input | One compatible external 3300 XL 8 mm probe and matching cable for the documented 5.0 m modification; not automatically included |
| Configured modified system length | 5.0 m |
| Power at transmitter | +12 to +35 Vdc |
| Loop accuracy | Within +/-1.5% over full scale from TEST input to a 250-ohm loop; additional to Prox Out scale-factor error |
| Maximum loop resistance | 1,000 ohms including cable at 35 Vdc; Rloop(max) = 43.5 x (Vps - 12) ohms |
| Not OK behavior | Output below 3.6 mA within 100 us; restores 2-3 seconds after the fault clears |
| PROX OUT | Non-isolated; 10 kohm output impedance calibrated for a 10 Mohm load |
| Modified transducer-system Prox Out range | 1.4 mm (55 mil), beginning about 0.25 mm (10 mil) from an AISI 4140 target |
| Modified transducer-system scale factor | 7.87 mV/um (200 mV/mil), +/-6.5% typical and +/-10% worst case |
| Modified transducer-system frequency response | 5 Hz to 6,000 Hz, +0/-3 dB |
| Transmitter operating temperature | -35 to +85 deg C |
| Transmitter storage temperature | -52 to +100 deg C |
| Transmitter weight | 0.43 kg (0.9 lbm) |

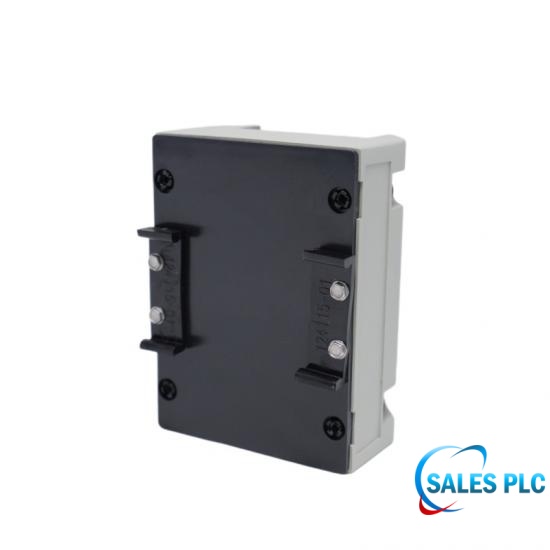

| Mounting | 35 mm DIN-rail clips |
| Agency option | Agency option not required |
| Official source | 141612 Rev. Y |
Compatibility statements are limited to the cited manufacturer documentation. Availability, condition and substitution must be confirmed separately.
990-05-XX-01-00 MOD 147202-01 is an officially documented modified Bently Nevada 990 vibration transmitter with modification 147202-01.
990-05-XX-01-00 MOD 147202-01 is configured for 0-5 mil pp (0-125 um pp) peak-to-peak vibration.
990-05-XX-01-00 MOD 147202-01 uses the official 147202-01 modification for an AISI 4140 target, a 3300 XL 8 mm transducer chain and 5.0 m system length.
990-05-XX-01-00 MOD 147202-01 is the transmitter configuration; the compatible 3300 XL 8 mm probe and cable are external components unless the quotation for 990-05-XX-01-00 MOD 147202-01 explicitly includes them.
990-05-XX-01-00 MOD 147202-01 requires +12 to +35 Vdc at the transmitter and 990-05-XX-01-00 MOD 147202-01 supplies a proportional two-wire 4-20 mAdc output.
990-05-XX-01-00 MOD 147202-01 drives the loop below 3.6 mA within 100 us after a Not OK condition and 990-05-XX-01-00 MOD 147202-01 restores the output about 2-3 seconds after the condition clears.
990-05-XX-01-00 MOD 147202-01 provides a non-isolated PROX OUT signal; Baker Hughes recommends the 122115-01 test adapter when grounded AC-powered test equipment is connected to 990-05-XX-01-00 MOD 147202-01.
990-05-XX-01-00 MOD 147202-01 provides vibration trending and loop alarming, but 990-05-XX-01-00 MOD 147202-01 does not provide the complete diagnostic and protection functions of a continuous monitoring system.
Send the complete part number, installed-system details, quantity, destination and clear label photos. Availability and condition will be confirmed before quotation.
