Description

Key Highlights
Manufacturer: Bently Nevada
Model Number: 990-05-XX-01-00
Product Type: Vibration Transmitter
Availability: In Stock
Condition: Original New
Country of Origin: USA

Technical Specifications

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).

Manufacturer	Bently Nevada
Article number	990-05-XX-01-00
Type	Vibration Transmitter
Dimension	10x7.3x6cm
Weight	0.46kg
Full-scale Option	0-5 mils pp (0-125 μm pp)
System Length Option	5.0 meters (16.4 feet) or 7.0 meters (23.0 feet)
Mounting Option	35 mm DIN rail clips
Agency Approval Option	Not required
Operating Temperature	-35°C to +85°C (-31°F to +185°F)
Storage Temperature	-52°C to +100°C (-62°F to +212°F).
Input	Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable
Power	Requires +12 to +35 Vdc input at the transmitter terminal
Maximum Loop Resistance	1,000 Ω including cable at 35 Vdc
Current Limiting	23 mA typical
Output Impedance	Prox Out has a 10 kΩ output impedance calibrated for a 10 MΩ load
Linear Range	0.25 to 1.65 mm (10 to 65 mils) for Prox Out
Leadwire Length	Proximitor Sensor Output (BNC connector), maximum cable distance is 3 meters (10 feet)

Core Functions

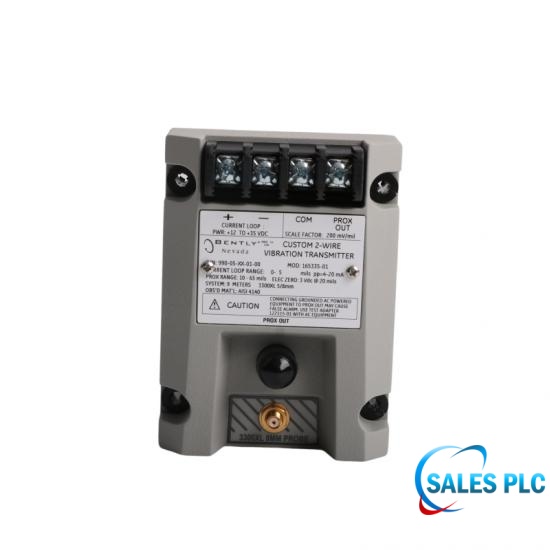

Dynamic Diagnostic Output (PROX OUT): The device panel features non-isolated PROX OUT and COM test terminals. Maintenance personnel can directly use portable vibration analyzers, data loggers, or multimeters to measure raw dynamic vibration signals and gap voltages without disconnecting the circuit.

False Alarm Suppression Circuit (Not OK / Signal Defeat): When a sensor probe is disconnected, short-circuited, or loosely connected, the transmitter automatically locks the output (usually limiting current to a low current state) to prevent false interlocking or false alarms in the control system due to hardware failure.

Test Input Pin: Provides dedicated signal test pins, allowing technicians to use a signal generator to simulate inputs and quickly verify the response of 4-20 mA loops and PLC/DCS.

Main Application Scenarios

Centrifugal air compressors

Small mid-stage or single-stage water pumps

Industrial motors and large cooling fans

Compact installation spaces requiring continuous monitoring of vibration displacement/shaft vibration of critical mechanical components.

Technical FAQ

Q: What does "XX" represent in the model number 990-05-XX-01-00?

A: "XX" represents the overall system length. 05 indicates 5.0 meters (16.4 feet), and 07 indicates 7.0 meters (23.0 feet).

Q: What mounting method is used for the 990-05-XX-01-00?

A: This model uses a standard 35 mm DIN rail for mounting.

Q: What is the flame retardancy rating of the 990-05-XX-01-00 housing?

A: The housing material is flame-retardant polycarbonate (Polyphenylene Oxide).

Q: Does the 990-05-XX-01-00 provide dynamic vibration signal output?

A: Yes. In addition to 4-20 mA, it also provides a raw buffered voltage output for analysis.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
