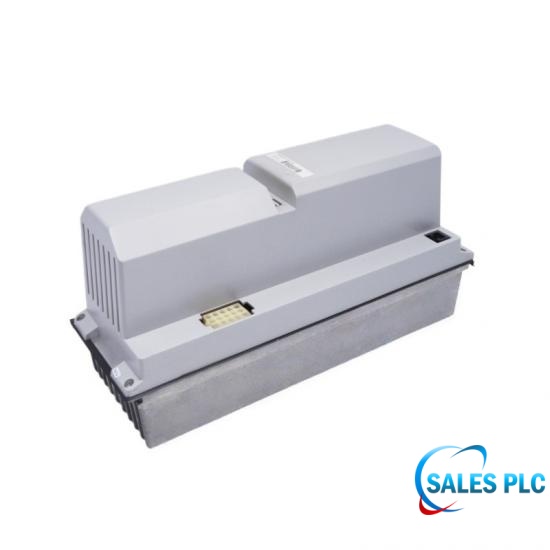

AC Servo Drive Unit | DSQC346G 3HAB8101-8 | ABB

Key Highlights
Manufacturer: ABB

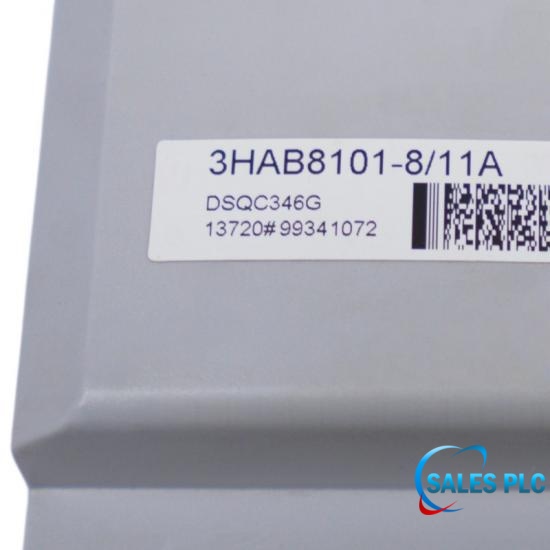

Model Number: DSQC346G 3HAB8101-8
Product Type: AC Servo Drive Unit
Availability: In Stock
Condition: Original New
Country of Origin: Switzerland

Technical Specifications

The DSQC346G 3HAB8101-8 is a Robot AC Servo Drive manufactured by ABB, a DRIVE UNIT GT for advanced industrial robotic automation systems. The DSQC346G 3HAB8101-8 employs Vector Control as its Control Method, enabling precise torque and speed regulation for robotic motion control. The DSQC346G 3HAB8101-8 features a Protection Class of IP20, providing protection against solid objects larger than 12.5 mm while requiring installation in a controlled cabinet environment.

Troubleshooting & Commissioning Checklist

Lockout/Tagout: Ensure the main factory breaker and the controller’s main switch are off and locked.
Bus Bar Alignment: Align the solid power connectors carefully to adjacent drive modules without flexing the terminal casing to avoid physical PCB fractures.
Address Setting Check: Replicate the exact physical switch/jumper positioning from the old unit onto the replacement module so the axis computer addresses the correct joint.
Isolation Test: If doing a cabinet insulation check, physically disconnect the logic communication ribbon cable from the DSQC346G 3HAB8101-8 first. High testing voltage will instantly ruin the vector logic chips.

Field Engineering Considerations

Interlock Gaskets: Ensure the protective non-conductive terminal shrouds are reinstalled perfectly. Exposed high-voltage terminals in a crowded cabinet risk accidental tools or component drops causing arc-flash hazards.
Heatsink Debris Clearing: Because this unit relies on Forced Air Cooling, the aluminum fins on the rear of the module easily trap oily residue, carbon mist, or metallic dust over months of 24/7 operation. Clogged fins lead to thermal throttling, triggering intermittent axis errors. Field engineers should integrate a low-pressure compressed-air blow-out of the heatsink as part of every preventative maintenance cycle.

Technical FAQ

Q: Do I need to set any jumper configurations or physical addresses on a new DSQC346G 3HAB8101-8 unit before mounting it?
A: Yes, absolutely. Before installing a replacement DSQC346G 3HAB8101-8, you must inspect and exactly mirror all jumpers or address switches from the old module to ensure the system links it to the correct joint firmware profile.

Q: Can I run an insulation resistance test on the motor cables while they are still wired into the DSQC346G 3HAB8101-8?
A: Absolutely not. Applying high-voltage insulation tests (typically 500V or 1000V) directly to the output terminals of the DSQC346G 3HAB8101-8 will instantly puncture and destroy the sensitive internal IGBT power transistors and vector logic paths. You must physically isolate and disconnect the motor cables from the drive before running an insulation test.

Q: The Teach Pendant flashes a "Drive Unit Overtemperature" fault during heavy cycles. Is the DSQC346G 3HAB8101-8 failing?
A: Not necessarily. The drive is rated to operate up to +50°C. First, verify that the cabinet's forced air cooling system is fully operational and spinning at high speed. Next, blow out any accumulated shop grease or carbon dust blocking the aluminum rear heatsink fins of the DSQC346G 3HAB8101-8. If the fans are fine and the heatsink is clean, only then look at replacing the module due to a drifting internal thermal sensor.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
