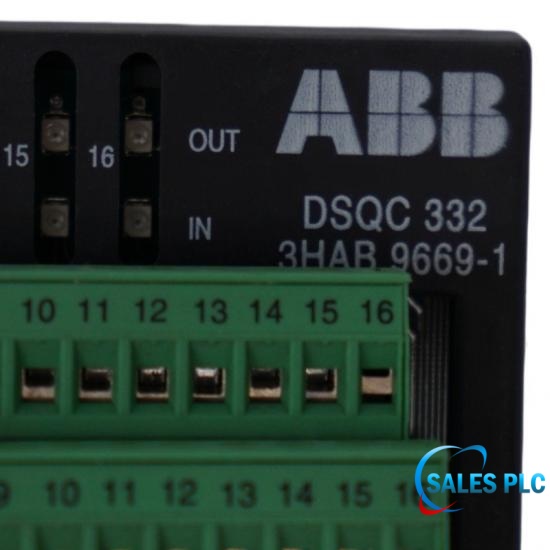

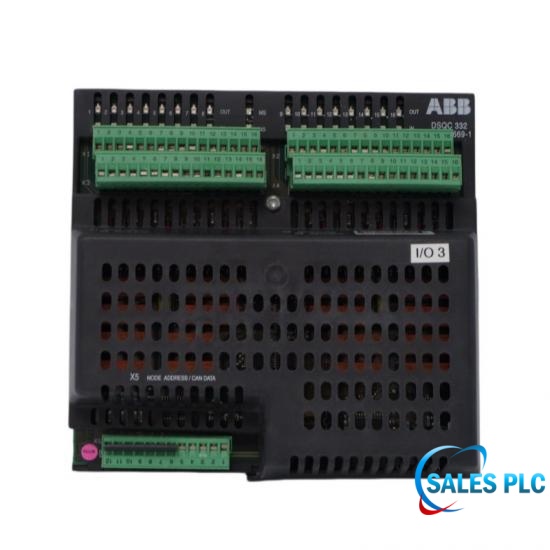

Digital I/O Relay Circuit Board | DSQC332 3HAB9669-1 | ABB

Key Highlights
Manufacturer: ABB
Model Number: DSQC332 3HAB9669-1
Product Type: Digital I/O Relay Circuit Board
Availability: In Stock
Condition: Original New
Country of Origin: Switzerland

Technical Specifications

The ABB DSQC332 3HAB9669-1 serves as a critical I/O interface between the robot controller and external devices, enabling seamless communication and signal management in industrial automation environments. The DSQC332 3HAB9669-1 has a Number Of Channels of 16, configured as 8 inputs and 8 outputs in grouped arrangements. The DSQC332 3HAB9669-1 operates within an Operating Voltage Range of 19.2 VDC to 30 VDC, providing robust tolerance against voltage fluctuations in industrial power systems.

Troubleshooting & Commissioning Checklist

Initial Boot: Power up the robot controller cabinet and observe the system teach pendant. I/O Verification: Run a manual I/O test from the teach pendant to verify that internal sensors and external execution loops respond accurately.
Verify DeviceNet MAC ID: Confirm the hardware DIP switches match the address specified in the EIO.cfg robot configuration file.
Inspect Backplane Connection: Ensure the module is securely seated in the internal mounting rack and all connector pins are straight.
Check Terminal Blocks: Verify all four 16-pin screw terminal blocks and the one 12-pin power terminal block are tightly plugged in.
Confirm Housing Integrity: Inspect the flame-retardant ABS housing for cracks, overheating marks, or physical damage.

Field Engineering Considerations

Cabinet Venting: Ensure the ABB control cabinet fan works properly to maintain the 0°C to +55°C operating range.
Air Quality: Prevent accumulation of conductive dust, oil mist, or metallic particles over the IP20-rated open plastic housing.
Space Allocation: Maintain minimum clearance around the module rack to allow natural convective heat dissipation from the 16 on-board relays.

Technical FAQ

Q: Why does the DSQC332 3HAB9669-1 trigger its output on the teach pendant, but the external solenoid valve doesn't activate at all?
A: Please first observe the onboard channel indicator lights. If the lights are on but there is no output, it's usually because the external 24V drive power supply to the terminal block is interrupted, the circuit fuse is blown, or the internal physical relay contacts are stuck and burnt out.

Q: After replacing the DSQC332 3HAB9669-1 with a new spare part, why does the system display an error message "I/O device not found" upon startup?
A: This is most likely because the hardware DIP switches on the new board are not configured. When replacing the spare part, the DIP switches on the new board must be adjusted to the exact same DeviceNet node address as the old board, usually 10 or 11.

Q: Why do the output terminals of the DSQC332 3HAB9669-1 frequently burn out inexplicably when connected to an external air valve?
A: The maximum current per channel of this module is 2 A. If an inductive load is connected and no freewheeling diode or RC surge absorber is installed, the reverse induced electromotive force at the moment of power failure can easily break down or burn out the relays inside the module.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
