Analog I/O Extension Module | XM06B5 1SBP260103R1001 | ABB

Technical Specifications

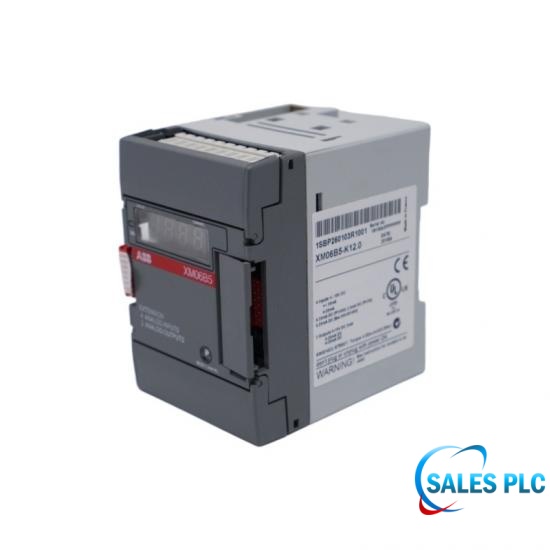

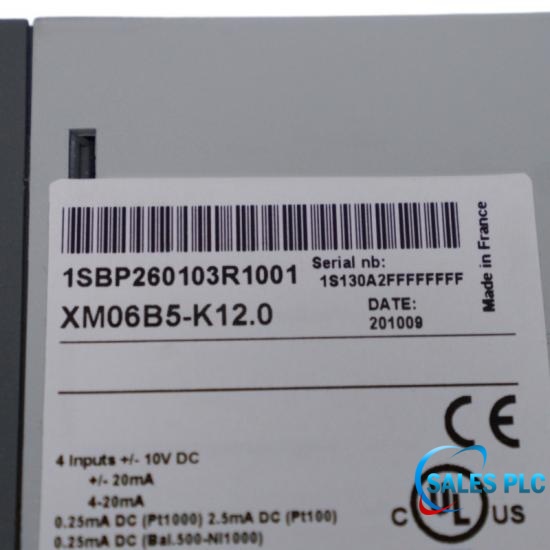

The ABB XM06B5 1SBP260103R1001 is an analog input/output extension module developed for the ABB AC31 Series 40/50 automation platform. Housing a combination of 4 analog input paths and 2 analog output paths, the unit enhances the overall signal-processing density of linked primary controllers and ICMK remote nodes. In terms of field sensor compatibility, the XM06B5 1SBP260103R1001 accommodates diverse input loops, covering ±10 V, ±20 mA, and 4–20 mA ranges along with direct Pt100 and Pt1000 RTD hookups. On the driving side, the card generates distinct analog output loops spanning ±10 V, 0–20 mA, and 4–20 mA ranges. Mirroring each other in precision, both the sampling and transmission stages employ 12-bit digitization.

Troubleshooting & Commissioning Checklist

Signal Type Coding: Find the embedded configuration DIP switch blocks on the side or internal face of the card. Adjust each toggle to align with your active channel parameters prior to physical rack placement.
Address Assignment: Configure the hardware-level network node identity on the chassis frame so it corresponds precisely with the legacy AC31 master mapping matrix.
DIN Rail Mounting: Snap the hardware assembly onto a clean, unpainted 35 mm symmetric rail. Verify that the rear-mounted grounding leaf spring maintains a high-pressure physical connection against the metal rail surface.
Shield Bonding: Land all twisted-pair analog instrumentation shields exclusively at the main cabinet ground bus using a single-ended grounding approach. This method intercepts and cancels out 50/60 Hz industrial stray noise currents.

Field Engineering Considerations

Pre-Insertion Verification: Never adjust the internal configuration DIP switches while the module is powered. The physical layout of the switches determines whether a channel acts as a passive voltage receiver or an active current loop. Changing switches live can cause a momentary short circuit across internal shunt paths, permanently drifting or burning out the precise calibration network.
The "All-or-Nothing" RTD Mapping Trap: When routing Pt100/Pt1000 sensors, verify that the 3-wire line balance is maintained. Because the internal constant-current source outputs a tiny 2.5 mA or 0.25 mA excitation current, even a slight increase in screw terminal contact resistance will register as a massive, false temperature spike in the PLC logic.

Technical FAQ

Q: Is it safe to change the hardware DIP switches on the ABB XM06B5 1SBP260103R1001 module while the cabinet power is turned on?
A: Under no circumstances. Manipulating the integrated configuration DIP toggles on the XM06B5 1SBP260103R1001 during active power delivery risks inducing brief electrical bridging across the onboard shunt network. This mishap permanently skews the internal calibration map or destroys the close-tolerance measurement resistors. Complete upstream isolation of the 24V DC auxiliary feed is mandatory prior to modifying any hardware toggles.

Q: Why are my Pt100 temperature readings on the ABB XM06B5 1SBP260103R1001 fluctuating erratically in the PLC logic?
A: Operating under a Pt100 RTD profile, the hardware sends out a highly sensitive 2.5 mA constant excitation loop. Given the low magnitude of this sensing current, any localized resistance increases stemming from unfastened terminal clamps or conductor oxidization translate directly into massive, false temperature spikes in the software. Rectify this by verifying that all terminal connections are clean, torqued firmly to 0.5 Nm (4.5 Lbs-Inch), and that the instrument cable shield ties exclusively to a single-ended ground point.

Q: How do I map the network node identity when replacing a faulty ABB XM06B5 1SBP260103R1001 module on a CS31 bus segment?
A: Station identification on a new card requires manual configuration via the physical onboard rotary wheels or DIP switches before initiating the main system boot sequence. This local hardware choice must mirror the identical station node coordinates established in the legacy AC31 master processor's software map to enable successful bus synchronization.
