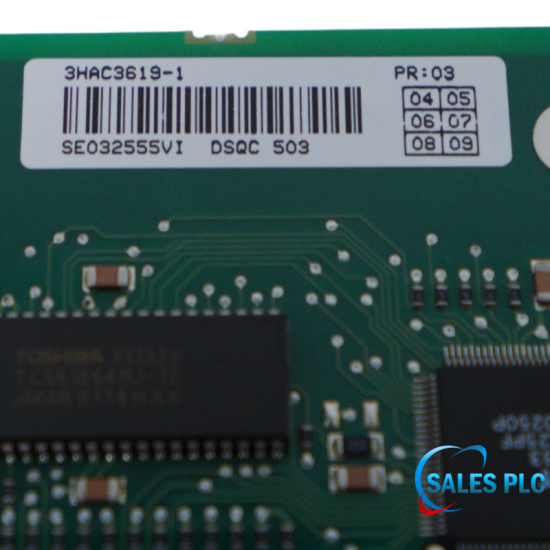

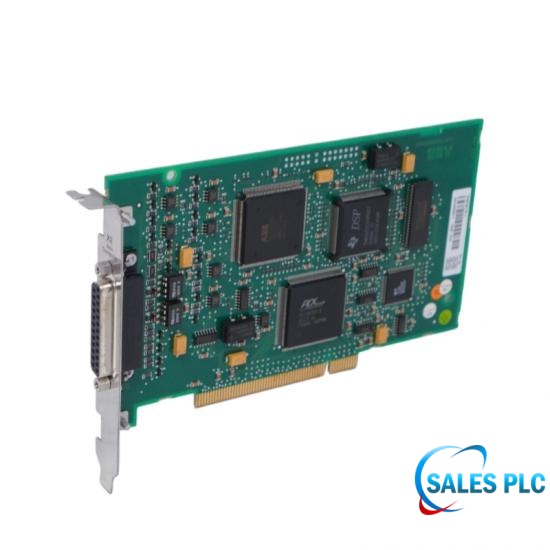

Axis Computer Board | DSQC503 3HAC18159-1/03 | ABB

Technical Specifications

The ABB DSQC503 3HAC18159-1/03 with an ultra-efficient power profile, the board draws a stable 24V DC input supply voltage directly via the master backplane rack layout, maintaining a strict maximum power consumption ceiling of 15W to prevent localized heat accumulation within sealed control enclosures. It supporting a standard operational ambient temperature window of 0°C to 50°C and an extended storage survival range of -25°C to 85°C across a non-condensing relative atmospheric humidity matrix of 5% to 95%.

Troubleshooting & Commissioning Checklist

Static Control: Wear a grounded ESD wrist strap; the RISC processors and DSPs on this board are highly static-sensitive.
Gold Finger Inspection: Inspect the lower gold finger edge connector. Ensure there is no scratches, oxidation, or thermal discolouration on the pins.
Backplane Slot Check: Inspect the slot inside the cabinet backplane with a flashlight to ensure no pins are bent or jammed with debris.

Field Engineering Considerations

Complete Power Disconnection: Hot-plugging is strictly prohibited. Disassembly and assembly must be performed only after the control cabinet is completely powered off and all capacitors have discharged. Otherwise, a large current can easily burn out the motherboard chips at the moment of contact between the gold fingers.
Contact Cleaning: If poor contact in the industrial environment causes a communication failure, the board can be removed first. Use a specialized electronic precision instrument cleaner (or industrial alcohol) with a lint-free cloth to clean the gold fingers. After complete drying, reinsert and tighten the board securely.

Technical FAQ

Q: When performing physical maintenance or swapping out a DSQC503 3HAC18159-1/03 board, what is the most critical safety protocol?
A: Absolute prohibition of hot-plugging. The control cabinet must be completely powered down, and you must wait a few minutes before extracting the board. Because it utilizes a high-density PCI gold finger edge layout, inserting or removing it while live creates electrical arcs or voltage ripples that instantly fry the on-board RISC processors or backplane sockets. Technicians must also wear a grounded ESD wrist strap.

Q: If the faceplate retention screws for the DSQC503 3HAC18159-1/03 are left loose after a swap, can it cause system errors?
A: Yes, it frequently leads to erratic communication faults. The front metal faceplate screws do more than hold the card in place—they ground the module's internal shielding to the control cabinet frame (GND). If these screws are loose, the DSQC503 3HAC18159-1/03 loses its protection against electromagnetic interference (EMI) generated by nearby high-frequency machinery (like welders or large variable frequency drives), which triggers clock sync failures.

Q: Do I need to perform a system reload or re-calibrate the robot calibration offsets after swapping a faulty DSQC503 3HAC18159-1/03?
A: No system reload is required, but verification is necessary. However, to ensure absolute position accuracy, you should always check and update the Revolution Counters via the teach pendant before resuming full production.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
