Backplane | DSQC541 3HAC14363-01 | ABB

Technical Specifications

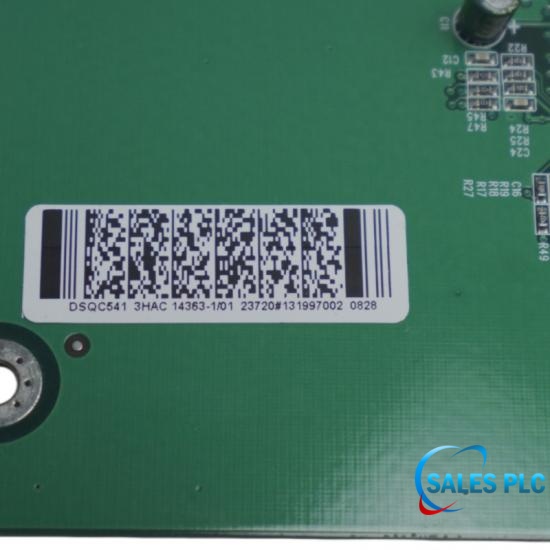

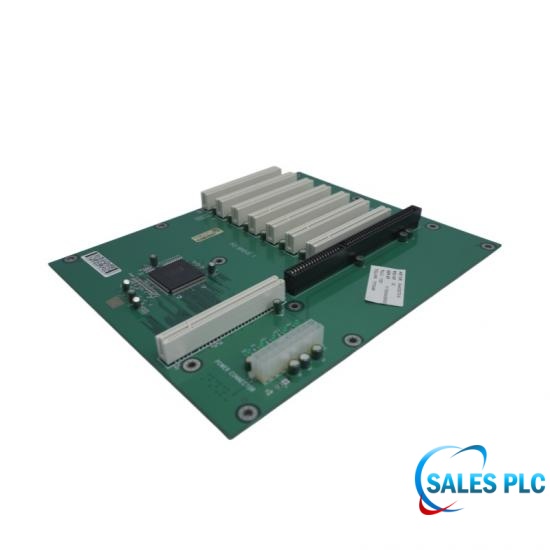

The ABB DSQC541 3HAC14363-01 is a backplane module for ABB industrial robot controllers, serving as the central electrical interconnection platform for multiple controller boards. The DSQC541 3HAC14363-01 is manufactured using a multilayer industrial-grade printed circuit board with high-density edge connectors, the multilayer PCB construction improves signal integrity while reducing electrical interference between adjacent circuits. Gold-plated connector contacts enhance conductivity and minimize contact resistance during repeated module installation and removal.

Troubleshooting & Commissioning Checklist

Static Safety: Wear an ESD grounding wrist strap; backplanes are highly sensitive to electrostatic discharge across bus traces.
Structural Audit: Inspect the multi-pin slot connectors under bright light. Ensure zero pins are bent, misaligned, or contaminated with metallic shop dust.
Slide Rail Clearance: Clean the sub-rack guide rails to guarantee the board glides evenly without jamming or warping.

Field Engineering Considerations

Thermal Trapping: The backplane sits vertically at the rear of the computer sub-rack, making it vulnerable to localized heat pockets. Ensure the control cabinet's internal fan/heat exchanger is fully functional.
Airflow Clearance: Ensure that the cooling air exhaust path directly above the computer sub-rack is not blocked by aftermarket accessories, loose manuals, or external wiring harnesses.
Thermal Stress Inspection: During maintenance shutdowns, inspect the area around the main power distribution traces on the DSQC541 3HAC14363-01 for localized discoloration. This indicates excessive heat generation from poor contacts or a straining daughterboard.

Technical FAQ

Q: If a single slot pin on the DSQC541 3HAC14363-01 backplane breaks, bends, or burns out, can it be individually repaired or resoldered in the field?
A: No field repair is recommended. The DSQC541 3HAC14363-01 utilizes a high-density, multi-layer PCB design. Manual soldering can easily destroy or bridge the micro-traces running through the inner layers of the board. If a slot pin is broken or severely burned, the entire backplane must be replaced.

Q: To minimize factory downtime, can I hot-swap or plug core computer cards onto the DSQC541 3HAC14363-01 backplane while the control cabinet is powered on?
A: Absolutely not! The data bus on the DSQC541 3HAC14363-01 does not support hot-swapping. Inserting or pulling cards while live will cause electrical arcing across the pins or send instant voltage spikes into logic lines, destroying both the backplane and your expensive processing boards.

Q: The workshop is very dusty. Can I use the facility's shop compressed air to blow out dirt from the slots of the DSQC541 3HAC14363-01?
A: Never do this. Industrial shop air almost always contains traces of moisture and atomized compressor oil. Blowing it into the DSQC541 3HAC14363-01 will trap oil film inside the multi-pin slots, attracting more conductive metallic dust over time. Correct method: Spray with a dedicated, residue-free contact cleaner and let it air-dry completely.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
