Bently Nevada 21000-34-05-00-015-04-02 Proximity Probe Housing Assembly
21000-34-05-00-015-04-02
21000 Aluminum Probe Housing · 3300 XL 8 mm Probe · 1.5 in Penetration
Configuration note: Use the complete nameplate and current Baker Hughes documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 1535940827521000 Aluminum Probe Housing · 3300 XL 8 mm Probe · 1.5 in Penetration

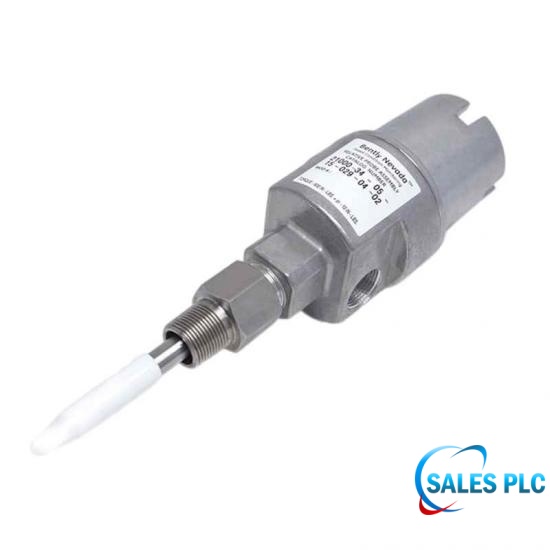

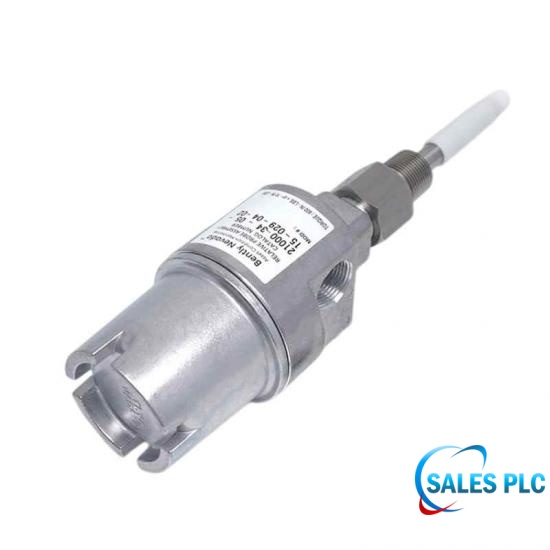

Bently Nevada 21000-34-05-00-015-04-02 is an all-metal 21000 aluminum proximity-probe housing assembly for externally mounting a 3300 XL 8 mm probe. Option 34 identifies an 8 mm probe with connector protector and selectable hazardous-area approvals; option 05 provides a 0.5 m (20 in) probe cable.
This configuration has no standoff adapter (00), a 1.5 in (38 mm) probe penetration (015), one 3/4-14 NPT plug only (04), and a 3/4-14 NPT mounting thread (02). The 21000 assembly uses an aluminum body with a 304 stainless-steel sleeve and has a typical mass of 1.1 kg without fittings.
The housing supports external probe positioning but does not by itself establish complete system performance or explosion-proof certification. Match the probe, extension cable and Proximitor Sensor, and verify the exact housing or CA-housing approval marking against the current installation requirements.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Full part number | 21000-34-05-00-015-04-02 |
| Product type | Externally mounted proximity-probe housing assembly |
| Housing series | 21000 aluminum housing |
| Housing / sleeve material | Aluminum body with 304 stainless-steel sleeve |
| Probe option | 34 — 3300 XL 8 mm probe with connector protector; selectable hazardous-area approvals |
| Probe cable length | 05 — 0.5 m (20 in) |
| Standoff adapter | 00 — no standoff adapter |
| Probe penetration | 015 — 1.5 in (38 mm) |
| Fittings | 04 — one 3/4-14 NPT plug only |
| Mounting thread | 02 — 3/4-14 NPT |
| Typical mass | 1.1 kg (2.4 lb) without fittings |
| Included assembly elements | Dome cover, threaded conduit ports, probe sleeve, O-rings, reverse-mount probe and thread seal |
| Probe operating / storage temperature | -51°C to +177°C (-60°F to +351°F) for the 3300 XL 8 mm probe |
| Sleeve-support rule | Additional support is required when combined standoff plus penetration exceeds 304 mm (12 in) |
| Approval boundary | Verify exact housing marking; CA21000 is the CSA explosion-proof variant |
| Official document | Baker Hughes datasheet 141600 Rev. AC |
Bently Nevada 21000-34-05-00-015-04-02 is an aluminum external-mount proximity-probe housing assembly supplied with a 3300 XL 8 mm probe configuration.
Option 34 in 21000-34-05-00-015-04-02 specifies a 3300 XL 8 mm probe with connector protector and selectable hazardous-area approvals.
Option 05 in 21000-34-05-00-015-04-02 specifies a 0.5 m (20 in) probe cable.
Ordering field 015 gives 21000-34-05-00-015-04-02 a 1.5 in (38 mm) probe penetration.
21000-34-05-00-015-04-02 uses fitting option 04, one 3/4-14 NPT plug only, and mounting option 02, a 3/4-14 NPT thread.
No. The C option 00 in 21000-34-05-00-015-04-02 specifies no standoff adapter.
The 21000-34-05-00-015-04-02 housing family uses an aluminum body with a 304 stainless-steel probe sleeve.
No. 21000-34-05-00-015-04-02 must be checked by its exact marking; Baker Hughes identifies CA21000 as the CSA explosion-proof housing variant.
Before ordering 21000-34-05-00-015-04-02, verify penetration, probe lead, mounting thread, conduit fittings, probe-to-Proximitor matching, approvals and installation clearances.
Send the complete Bently Nevada model, quantity, destination, mating probe or cable or Proximitor part numbers, approval requirements and clear nameplate photos. Identification details will be verified before availability and lead time are confirmed.
