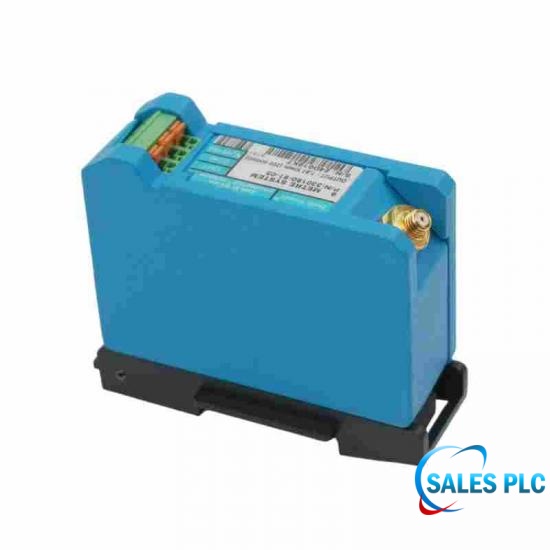

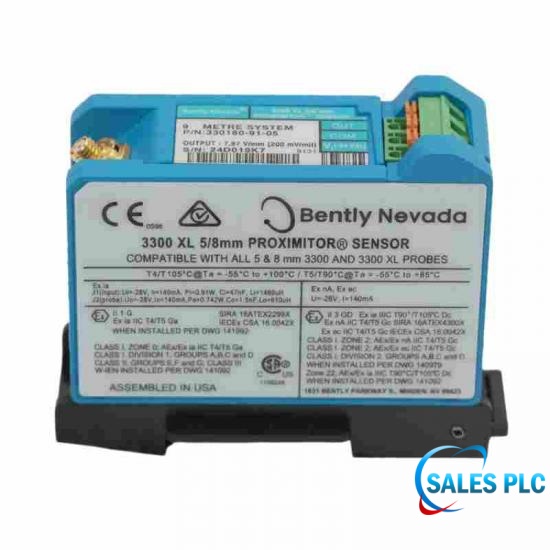

Bently Nevada 330180-91-05 9.0 m DIN-Mount Proximitor Sensor
330180-91-05
9.0 m DIN-Mount Proximitor Sensor · CSA, ATEX and IECEx Approvals
Configuration note: Use the complete nameplate and current Baker Hughes documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 153594082759.0 m DIN-Mount Proximitor Sensor · CSA, ATEX and IECEx Approvals
Bently Nevada 330180-91-05 is a 3300 XL Proximitor Sensor configured for a 9.0 m (29.5 ft) transducer system and DIN-rail mounting. Ordering field 91 identifies the 9.0 m DIN-mount version, while option 05 identifies CSA, ATEX and IECEx approvals.
The sensor accepts one non-contacting 3300-series 5 mm or 3300 XL 8 mm proximity probe with the required extension cable. It requires -17.5 Vdc to -26 Vdc at 12 mA maximum in the documented non-incendive installation, or -23 Vdc to -26 Vdc when barriers are used, and has 50 ohm output resistance.
330180-91-05 is the Proximitor Sensor component, not the full measurement chain. To obtain published 3300 XL performance, the probe lead and extension-cable lengths must total 9.0 m and all components, target material, power and installation conditions must follow the official datasheet.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Full part number | 330180-91-05 |
| Component scope | Proximitor Sensor only; probe and extension cable are separate |
| Product family | 3300 XL 8 mm Proximity Transducer System |
| Total system length option | 91 — 9.0 m (29.5 ft) |
| Mounting | DIN mount for 35 mm DIN rail; rail not included |
| Agency approval option | 05 — CSA, ATEX and IECEx approvals |
| Accepted transducer input | One non-contacting 3300-series 5 mm or 3300 XL 8 mm probe and extension cable |
| Power requirement | -17.5 Vdc to -26 Vdc, 12 mA maximum; -23 Vdc to -26 Vdc with barriers |
| Output resistance | 50 ohm |
| Field wiring | 0.2 to 1.5 mm² (16 to 24 AWG); 3-conductor shielded triad recommended |
| Maximum field-wiring length | 305 m (1,000 ft) between sensor and monitor |
| Sensor material | A308 aluminum |
| Operating temperature | -52°C to +100°C (-62°F to +212°F) |
| Storage temperature | -52°C to +105°C (-62°F to +221°F) |
| Typical sensor weight | 246 g (8.67 oz) |
| Complete-system linear range | 2 mm (80 mils), approximately 0.25 to 2.3 mm; applies to the matched system |
| Complete-system nominal scale factor | 7.87 V/mm (200 mV/mil); tolerance depends on system length and test conditions |
| Official document | Baker Hughes datasheet 141194 Rev. AM |
Bently Nevada 330180-91-05 is a 3300 XL Proximitor Sensor for a 9.0 m system, supplied in DIN-mount form with CSA, ATEX and IECEx approval option 05.
Ordering field 91 specifies that 330180-91-05 is calibrated for a 9.0 m (29.5 ft) total probe-plus-extension-cable system.

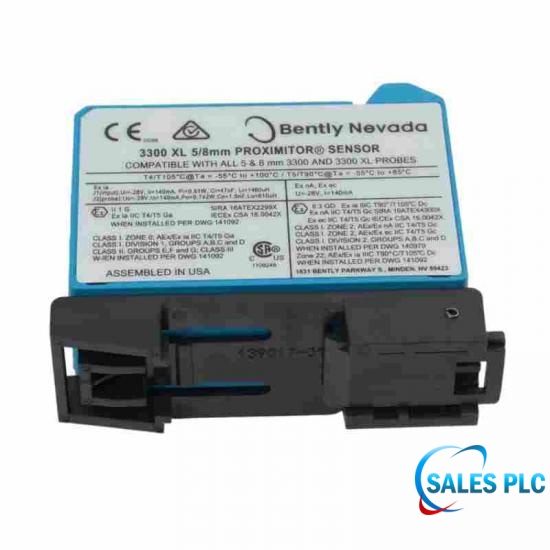

330180-91-05 uses the DIN-mount configuration for installation on a 35 mm DIN rail; the rail is not included.
The final 05 on 330180-91-05 identifies the CSA, ATEX and IECEx multiple-approvals option; current certificates and installation conditions still require verification.
330180-91-05 accepts one compatible non-contacting 3300-series 5 mm or 3300 XL 8 mm probe together with the correctly matched extension cable.
330180-91-05 requires -17.5 Vdc to -26 Vdc at 12 mA maximum in the documented installation, or -23 Vdc to -26 Vdc when barriers are used.
No. 330180-91-05 is the Proximitor Sensor only; the matched 9.0 m probe-and-cable chain is ordered separately.
Baker Hughes specifies -52°C to +100°C operating and -52°C to +105°C storage temperature for the 330180-91-05 Proximitor Sensor.
For 330180-91-05, provide the installed probe and extension-cable part numbers, required approvals, DIN-mount details, power or barrier arrangement, quantity, destination and label photos.
Send the complete Bently Nevada model, quantity, destination, mating probe or cable or Proximitor part numbers, approval requirements and clear nameplate photos. Identification details will be verified before availability and lead time are confirmed.
