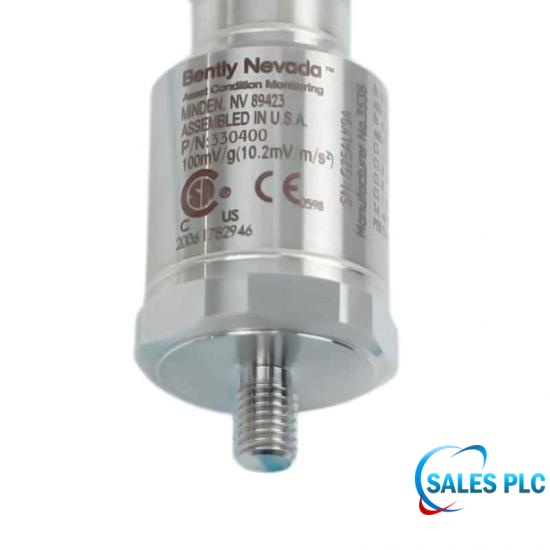

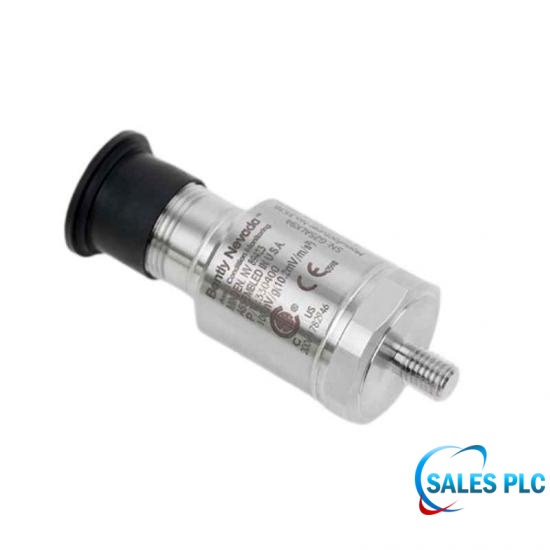

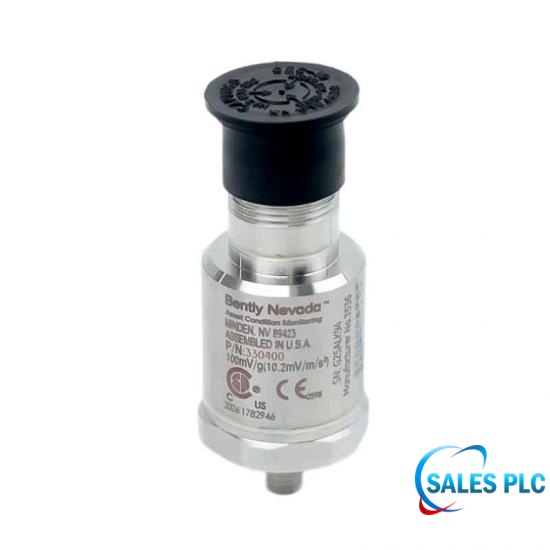

Bently Nevada 330400-01-00 Accelerometer Acceleration Transducer
330400-01-00
Accelerometer Acceleration Transducer · 1/4-28 UNF Integral Stud
Configuration note: Use the complete nameplate and current manufacturer documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275Accelerometer Acceleration Transducer · 1/4-28 UNF Integral Stud
Bently Nevada 330400-01-00 is an accelerometer acceleration transducer intended for critical machinery casing-acceleration measurements, including gear-mesh monitoring. The 330400 family is designed to meet API 670 accelerometer requirements.
The transducer provides 100 mV/g nominal sensitivity, a 50 g peak acceleration range and a 10 Hz to 15 kHz frequency response. Its sealed 316L stainless-steel body is designed for demanding machinery environments.
Ordering option 01 specifies a 1/4-28 UNF integral mounting stud, while agency option 00 indicates no agency approval option. Verify the entire 330400-01-00 code, cable assembly and monitoring input before replacement.
| Manufacturer | Bently Nevada / Baker Hughes |
|---|---|
| Complete model | 330400-01-00 |
| Product type | Accelerometer acceleration transducer |
| Primary application | Machinery casing acceleration / gear-mesh monitoring |
| Sensitivity | 10.2 mV/m/s² (100 mV/g) ±5% |
| Acceleration range | 490 m/s² (50 g) peak, 10 Hz–15 kHz |
| Amplitude linearity | ±1% to 50 g peak |
| Broadband noise floor | 0.039 m/s² (0.004 g) rms |
| Frequency response | 10 Hz–15 kHz ±3 dB |
| Precision band | 30 Hz–10 kHz ±10% |
| Maximum cable length | 305 m / 1000 ft |
| Power input | -24 ±0.5 Vdc |
| Bias current | 2 mA nominal |
| Output bias | -8.5 ±0.5 Vdc |
| Isolation | Case isolated |
| Operating / storage | -55°C to +121°C |
| Shock survivability | 5000 g peak |
| Environmental | 100% condensing, non-submerged; sensor hermetically sealed |
| Sensor ingress rating | Equivalent to IP68; cable excluded |
| Case / connector | 316L stainless steel; 3-pin MIL-C-5015 |
| Mounting | Any orientation; 4.1 N·m torque |
| Dimensions / weight | 23 mm diameter; 59 mm high including stud; approximately 99 g |
| Ordering option 01 | 1/4-28 UNF integral stud |
| Agency option 00 | No agency approval option |
Bently Nevada 330400-01-00 is a 100 mV/g casing-acceleration transducer with a 1/4-28 UNF integral stud.
Bently Nevada 330400-01-00 measures machinery casing acceleration for protection and condition-monitoring applications such as gear-mesh monitoring.
Bently Nevada 330400-01-00 requires checking 100 mV/g sensitivity, 50 g peak range, 10 Hz–15 kHz response, -24 Vdc power and the exact mounting option.
Bently Nevada 330400-01-00 must be checked against the mounting thread, cable and connector, monitor input, bias requirements and required frequency band.
Bently Nevada 330400-01-00 needs a prepared mounting surface, the specified 4.1 N·m torque, correct cable routing and protection against connector moisture.
Bently Nevada 330400-01-00 should have its output bias, noise, polarity, monitor configuration and expected vibration response checked before return to service.
Bently Nevada 330400-01-00 is documented in the official Baker Hughes 330400/330425 datasheet; quotation should confirm the current revision and availability.
Bently Nevada 330400-01-00 requires the full 330400-01-00 code, required cable, mounting location, monitor type, quantity and nameplate photos.
Bently Nevada 330400-01-00 data comes from Baker Hughes Datasheet 141638 Rev. AB for 330400 and 330425 accelerometers.
Send the complete Bently Nevada model, part number, revision, quantity, destination and nameplate photo. Identification details will be verified before availability and lead time are confirmed.
