Communication Board | CI531 3BSE003825R1 | ABB

Technical Specifications

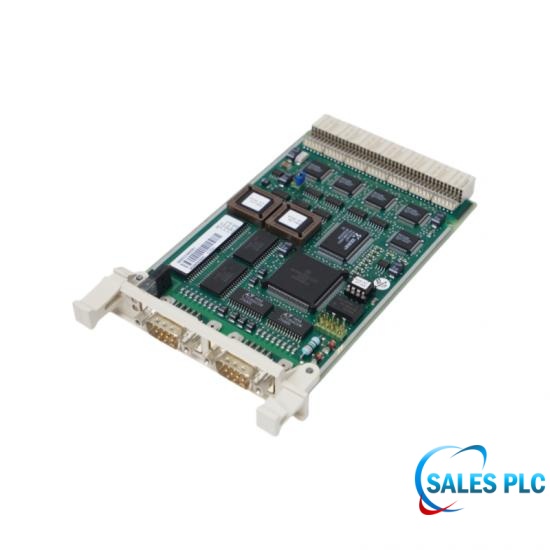

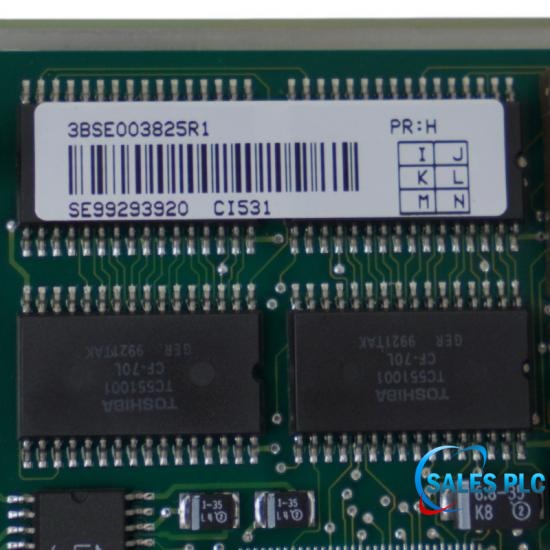

The ABB CI531 3BSE003825R1 is a plug-in communication submodule with a dual RS-232-C serial interface, providing 2 independent communication channels for reliable point-to-point serial data exchange. The module supports a maximum communication distance of 15 m and a maximum baud rate of 19.2 kbit/s, making CI531 3BSE003825R1 suitable for stable communication between industrial controllers and external serial devices. CI531 3BSE003825R1 operates from a 12 V DC power supply while maintaining a rated power consumption of no more than 1 W, helping reduce overall system power requirements.

Troubleshooting & Commissioning Checklist

Mechanical Seat Inspection: Check that the CI531 submodule aligns flawlessly with its carrier/processor card, making sure backplane connectors are pushed all the way home to avoid poor pin contact.
Grounding and Shielding Check: Verify the RS-232 cable shield connects to earth at just a single termination point to prevent the formation of ground loops.
Distance and Media Validation: Limit unbuffered cable links to a maximum of 15 meters; where longer runs are required, ensure powered short-range modems are correctly placed inline.

Field Engineering Considerations

Single-Ended Ground Rules: RS-232 relies on a common signal ground. Ground the cable shield structure on the controller cabinet chassis only. Grounding both ends creates an unintended current loop that introduces common-mode noise and distorts serial data frames.
Separation from Power Conduits: Maintain a clearance of at least 30 cm between the RS-232 communications cable and 400V AC variable frequency drive lines or motor conductors. Run the serial link inside dedicated, grounded steel conduits where possible.
Data Base Element Mapping: A newly inserted card will not transmit data until it is bound to its logical software container within the Advant Engineering Tool. Make sure the configured slot coordinates align perfectly with physical carrier hardware slots.

Technical FAQ

Q: Can I hot-swap the CI531 3BSE003825R1 module while the controller is powered up?
A: Yes, this submodule supports live insertion and removal when installed within fully compatible Advant Controller architectures like the AC450.

Q: Does the CI531 3BSE003825R1 require an external power supply wiring terminal?
A: No, it functions as a plug-in submodule and draws its 12V DC operational power directly from its host carrier board bus.

Q: What does a solid red fault LED on the host board indicate after inserting the CI531 3BSE003825R1?
A: This usually points to either a bad physical pin handshake on the backplane or a software slot database mismatch.

Q: How do I isolate a suspected hardware port failure on a CI531 3BSE003825R1 module?
A: Disconnect the external line, jump Tx to Rx directly on the port pins, and run a software loopback test block.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?

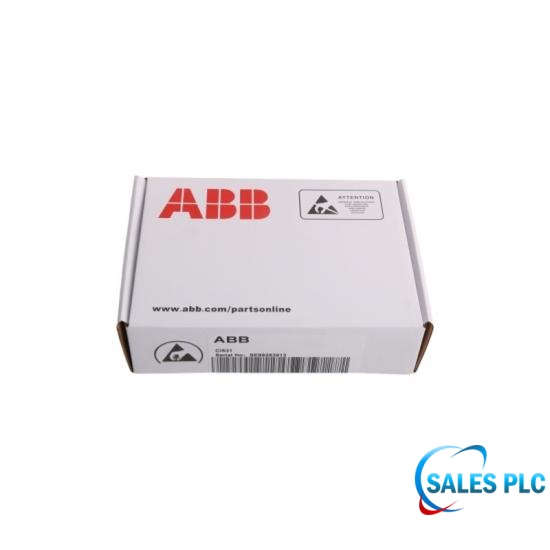

A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
