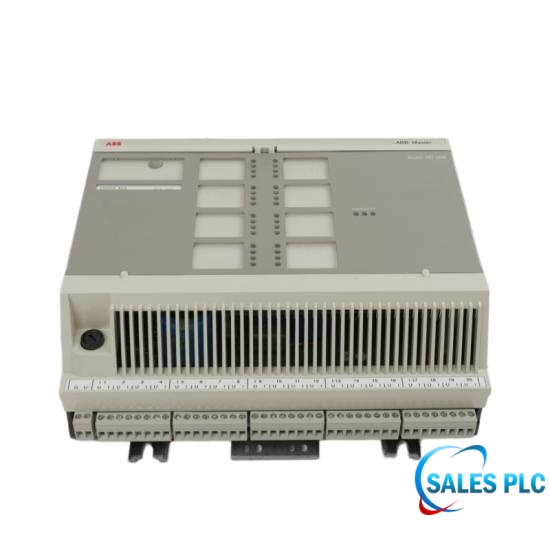

Remote I/O Basic Unit | DSDX454 5716075-AT | ABB

Key Highlights
Manufacturer: ABB
Model Number: DSDX454 5716075-AT
Product Type: Remote I/O Basic Unit
Availability: In Stock
Condition: Original New
Country of Origin: Switzerland

Technical Specifications

The ABB DSDX 454 5716075-AT is a Remote In / Out Basic Unit, specifically classified as part of the S400 I/O module series within the The DSDX454 5716075-AT is equipped with multiple indicator LEDs covering operation status, channel indicators, power supply status, and transducer power supply status, providing operators with clear visual feedback on system health and individual channel states.

Troubleshooting & Commissioning Checklist

Pre-Installation: Check the physical module (catalog 57120001-DP) for any transit damage. Verify the module is correctly seated and locked into the S100 I/O rack.  Jumper Configuration: Confirm that the jumpers on the connection unit (e.g., DSTA series) are correctly set for voltage or current inputs depending on your field devices.
Address Switch Alignment: Pop open the top protective plastic lid to access the hardware address dip switches. Confirm that the station address exactly matches the assigned database node parameter configured inside your AMPL Control Builder structure.

Field Engineering Considerations

Contact Wetting Limitation: The 12 relay outputs have a specified load range of 0.1A to 3A. If an engineer attempts to route a high-impedance, low-current micro-signal directly through a DSDX 454 relay contact, the contact will eventually fail due to a lack of "wetting current."
Oxidation Mitigation: Without at least 0.1A of current to physically arc and burn off localized surface oxidation on the mechanical relay contacts, the circuit will develop intermittent high resistance. If switching logic-level electronic signals, you must install an external pull-up resistor or an external interposing slimline relay.

Technical FAQ

Q: Why do my DSDX454 5716075-AT relay outputs state a minimum current of 0.1A?
A: Mechanical relay contacts require a minimum "wetting current" of 0.1A to burn off localized surface oxidation and prevent high contact resistance.

Q: Can I hot-swap the address dip switches while the DSDX454 5716075-AT unit is running?
A: No, the station address is only read during the localized hardware self-test executed upon startup.

Q: Does the DSDX454 5716075-AT unit monitor its own internal health?
A: Yes, it features integrated power-loss monitoring, startup hardware self-tests, and persistent communication tracking.

Q: Why does the front panel of DSDX454 5716075-AT display a separate visual indicator for "Transducer Power"?
A: It monitors the presence of the external 48V DC field supply voltage to verify that field instrumentation loops have active loop power separate from the board's internal logic power.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
