Connection Unit | DSTC170 57520001-BK | ABB

Technical Specifications

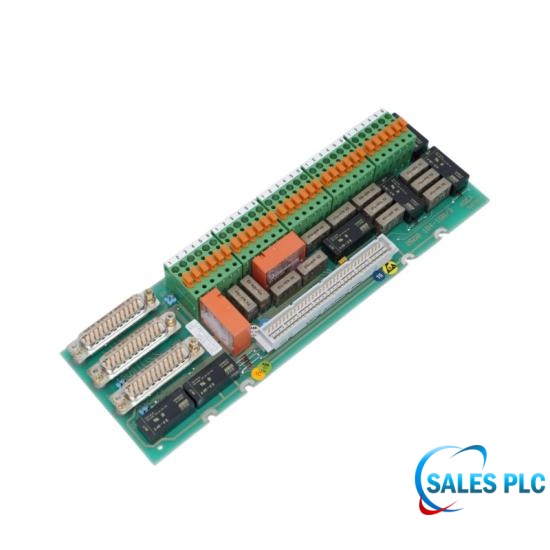

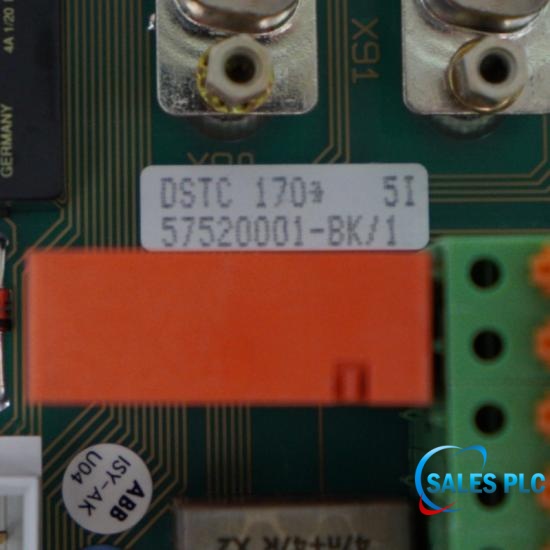

The ABB DSTC170 57520001-BK is an industrial communication interface unit for automation control system applications. The DSTC170 57520001-BK operates with a 24 V DC supply input, providing stable power support for internal communication and signal interface functions. The DSTC170 57520001-BK provides a communication interface capacity of 32 independent data channels, allowing multiple separate data signals to be processed and transferred within the automation system.

Troubleshooting & Commissioning Checklist

Stress-Relief Loop Routing: Secure all thick multi-conductor communication harnesses using integrated brackets. Construct a stress-relief cable loop right before the connection point to prevent the heavy wiring bundle from physically pulling on the board substrate.
Convection Clearance Bounds: Enforce clean passive airflow pathways. Since the module features a completely fanless design, verify that the horizontal lanes around the board are entirely free of obstruction.
Mating Connector Quality Audit: Inspect all multi-point communication pin banks under a bright light. Look for physical pin bending, oxidized metal surfaces, or carbon tracking from past overvoltage events.

Field Engineering Considerations

The Transceiver Destruction Risk: Disconnecting or reconnecting the multi-conductor communication harnesses or the 24V power link while active creates localized electrical arcing.
Backplane Puncture: This transient electrical kick can bridge high-voltage logic supply tracks straight into delicate, low-voltage differential CAN-bus or serial communication transceivers. This cross-voltage puncture will instantly destroy the DSTC170 and can path upstream to permanently fry the central processing unit communication cards. Always lock out the primary 24V supply before touching any harness terminal.

Technical FAQ

Q: The master station completely lost contact with the router node. Has the DSTC170 57520001-BK failed?
A: Highly likely. Troubleshooting sequence: Turn off power, disconnect all external multi-conductor field data harnesses from the board, and re-power. Measure the primary supply; if 24V DC is verified but the master controller still cannot detect the node under zero-load conditions, the internal bus transceiver chips are shorted. The DSTC170 57520001-BK must be replaced.

Q: Line switching or communication drops happen randomly during hot summer months. Is this linked to the DSTC170 57520001-BK?
A: Yes. The module is fanless and relies on natural convection. When closed cabinet temperatures exceed +55°C, the performance of the onboard optocoupler logic gates begins to skew. Check cabinet positive-pressure fans and clean filter pads immediately.

Q: To save plant downtime, can I hot-swap or unplug the data harnesses on the DSTC170 57520001-BK while live?
A: Absolutely not. The multi-channel differential bus does not support live handling. Pulling connectors under load generates transient micro-arcs that can bridge the 24V supply tracks straight into delicate, low-voltage serial transceivers. This cross-voltage puncture will instantly destroy the board and propagate upstream to fry the central processing CPU. Always lock out power first.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
