Contactor interface board | DSQC611 3HAC13389-2 | ABB

Technical Specifications

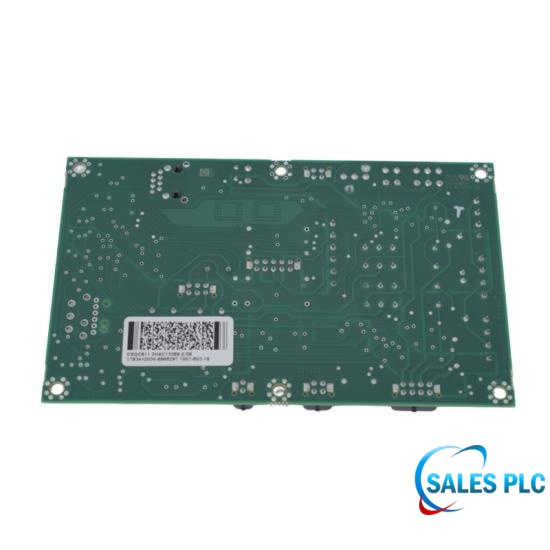

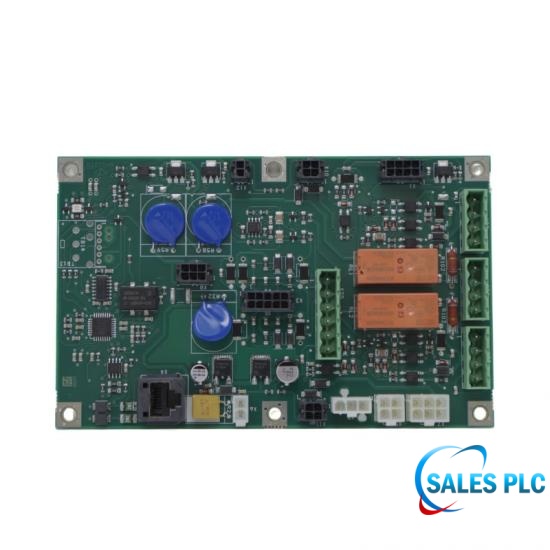

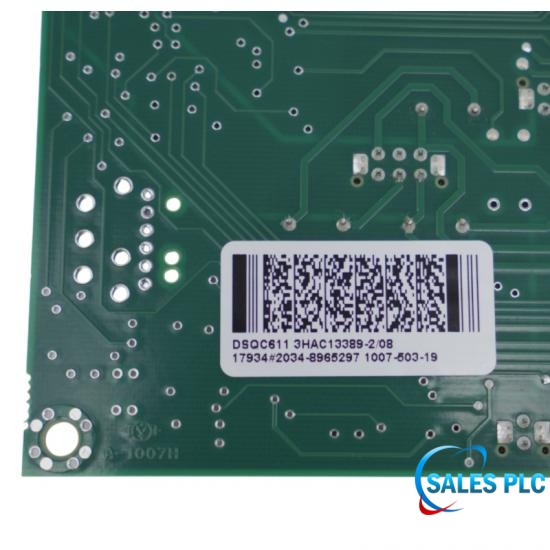

The ABB DSQC611 3HAC13389-2 is a Contactor Interface Board for use in ABB IRC5 Panel Mounted Controller systems. ABB identifies the board as DSQC 611 with 3HAC13389-2 in the IRC5 Panel Mounted Controller product manual. Within the IRC5 controller hardware, the DSQC611 is associated with the contactor circuitry and serves as an interface board within the controller cabinet. It is installed as part of the controller’s electrical hardware configuration together with other power supply, drive and braking-related components. The board is intended for maintenance, servicing and replacement applications where the specified DSQC611 3HAC13389-2 hardware is required.

Request a Quote Now | Email ：Email: sales17@amikon.cn

Troubleshooting & Comissioning Checklist

Power Indicators: Verify that the dedicated 24V DC input LED status light on the board is solid green. If unlit, check the main controller logic power supply and inline fuses.
Safety Loop Elements: Observe the relay status LEDs. If they do not activate when enabling the FlexPendant, a fault exists further up the safety chain.
Control Input Isolation: The board uses optocouplers to isolate delicate digital logic from inductive contactor spikes. Measure the voltage across the incoming command terminals when "Motors On" is actively requested.

Field Engineering Considerations

Fail-Safe Mechanism: The unit routes dual-channel safety signals directly to the main motor contactors. Any upstream safety fault or component hardware failure forces the loop open.
Isolation Mapping: Optocoupler isolation zones separate low-voltage logic circuits from the high-voltage contactor actuation signals, blocking surge propagation to the axis computer.
Compliance Checks: Prior to commissioning, engineers must verify the circuit fulfills ISO 10218 robotic safety criteria.

Can't Find the Part? - Whatsapp WhatsApp: +86 153 5940 8275 for Assistance

Technical FAQ

Q: What is the primary function of the DSQC611 board?
A: The board manages the "Motors ON" state of the robot. It continuously monitors critical safety chain signals—such as Emergency Stops, light curtains, and hand-held enabling devices. When all safety metrics report a secure state, it generates the electrical trigger required to close the main contactors, energizing the servo drives and motors.

A: No. Always isolate the main circuit breaker of the ABB IRC5 or S4C+ control cabinet before handling internal circuit cards. Swapping boards under live control voltage risks shorting fragile logic circuits and exposes technicians to hazardous high voltages near adjacent mains contactors.

A: The DSQC611 functions mostly as an input/output hardware contactor interface. It does not carry main system software or user programs, making it a drop-in hardware replacement. However, verify that any physical jumper settings on the replacement module mirror the original unit exactly before boot-up.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
