CPU Module | CMA122 3DDE300402 | ABB

Technical Specifications

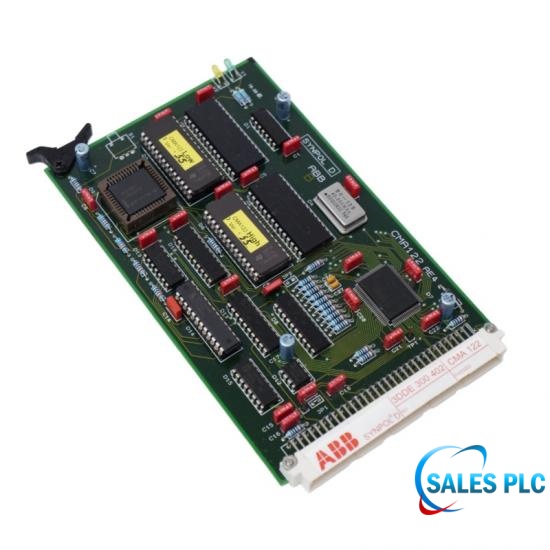

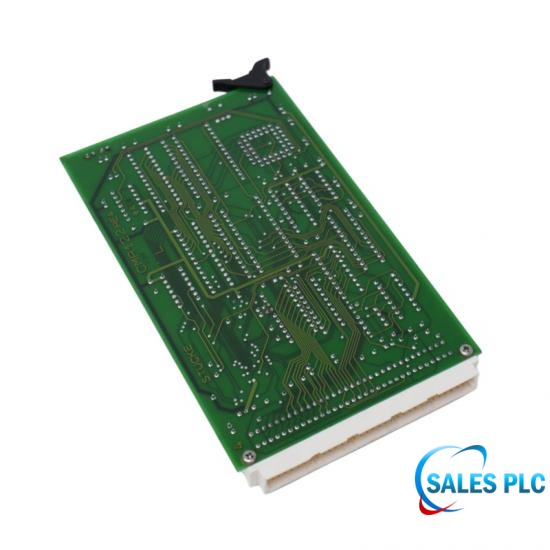

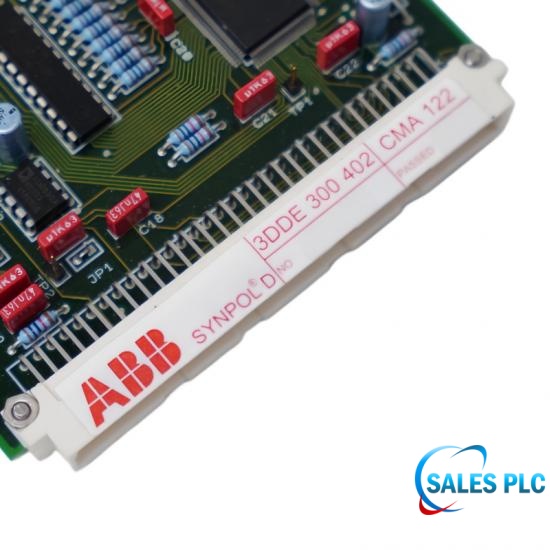

The ABB CMA122 3DDE3004021 is a module for use within compatible ABB industrial control systems. It forms part of the system hardware and is intended for use in configurations specified for this particular module.The CMA122 can be used for maintenance and replacement in existing installations where 3DDE3004021 is specified. When replacing an installed unit, the complete part number and system configuration should be verified to ensure compatibility with the existing hardware.

Request a Quote Now | Email ：info@amikon.cn

Troubleshooting & Comissioning Checklist

Mounting & Clearance: Ensure the unit is firmly secured in the rack with proper clearance for thermal dissipation.
Visual Inspection: Check the PCB surface for any mechanical deformities, component scorching, or transport-induced cracks.
Input Voltage Verification: Confirm the incoming primary supply matches the exact 24V DC nominal requirements.

Field Engineering Considerations

Thermal Load Allocation: Budget a maximum power consumption of 15W per card when calculating total cabinet heat dissipation and power supply sizing.
ESD Mitigation: Treat the CMA122 as highly sensitive to Electrostatic Discharge. Technicians must use ESD-safe grounded wrist straps, mats, and conductive transport bags during field maintenance.
Climate Controls: Maintain cabinet temperatures within the operational range of -20°C to +60°C. Ensure integrated cooling fans or climate units are functioning to keep relative humidity below 95% non-condensing.

Can't Find the Part? - Whatsapp +86 1802776786 for Assistance

Technical FAQ

Q: What is the primary function of the ABB CMA122?
A: The module acts as the main CPU module for the Synpol D architecture. It runs system-wide control logic, handles data incoming from sensors, and manages communications with downstream field devices.

A: The card integrates into distributed networks via standard industrial automation interfaces. It supports Modbus, Ethernet, and RS-485 serial communication.

A: It is built explicitly for the ABB Synpol D system. Some industrial distributors also note its deployment across legacy branches of Advant OCS or broad ABB distributed control systems (DCS).

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
