Generator Relay Terminal Board | CMA136 3DDE300416 | ABB

Technical Specifications

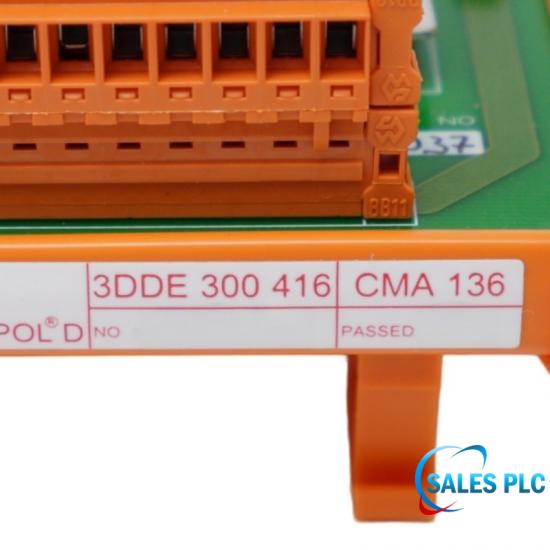

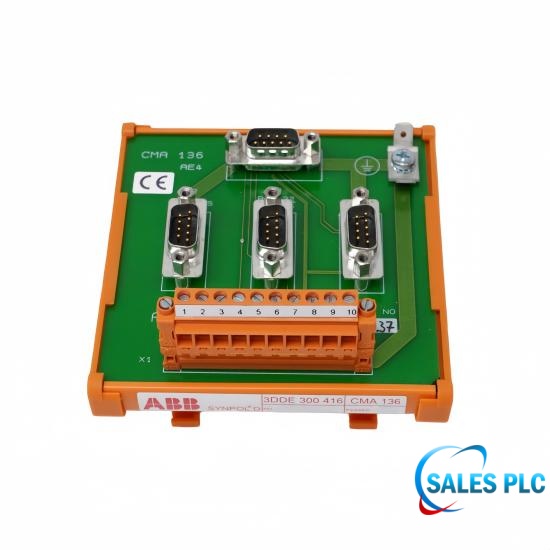

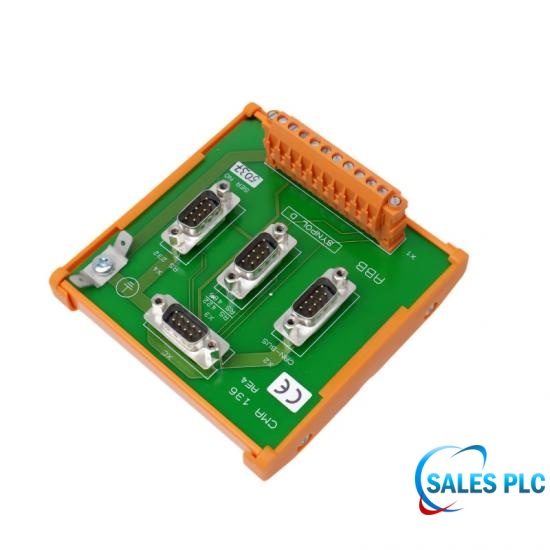

The ABB CMA136 3DDE300416 is a terminal board associated with ABB SYNPOL D systems. It provides terminal connections for control and signal wiring within the system and is primarily used in generator control and protection applications.The CMA136 is suitable for maintenance and replacement work in existing SYNPOL D installations, particularly in power generation and other facilities where these systems remain in service. As a system-specific terminal board, its main role is to provide reliable wiring connections between the associated control equipment and field circuits. When replacing an existing CMA136, the part number, system configuration, and connection requirements should be checked before installation.

Request a Quote Now | Email ：info@amikon.cn

Troubleshooting & Comissioning Checklist

Enclosure De-energization: Confirm the primary system backplane power is fully switched off and locked out.
Visual Board Check: Inspect the module face and backplane for physical cracks, bent pins, or thermal discoloration.
Isolation Integrity: Test that all input and output channels maintain structural galvanic isolation from frame ground.

Field Engineering Considerations

Galvanic Protection: The board features optical isolation to safeguard core logic from high-voltage surges.
Noise Mitigation: Field wiring must be routed away from heavy-current generator excitation lines to prevent electromagnetic interference (EMI).
Dual Power Routing: System architectures must properly decouple the 5V DC backplane logic from the 24V DC auxiliary field supply.

Can't Find the Part? - Whatsapp +86 1802776786 for Assistance

Technical FAQ

Q: What is the primary function of the CMA136 3DDE300416?
A: It serves as a connection interface and terminal board for control, signal wiring, and serial communication. It provides secure relay control and reliable signal conditioning between generator systems and the main control architecture.

A: It is primarily built for the legacy ABB Synpol D excitation system used in power generation. It is also cross-referenced in various industrial automation setups alongside legacy ABB Procontic CS31 or Advant systems.

A: Check Physical Integrity: Inspect the screw terminals and the PCB surface for signs of overheating, loose wires, or corrosion, as these boards frequently handle generator signaling.Verify Continuity: Use a multimeter to test continuity between the field-side terminals and the system-side multi-pin connector to rule out broken traces on the board.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
