Digital I/O Module | DSQC328A 3HAC17970-1 | ABB

Technical Specifications

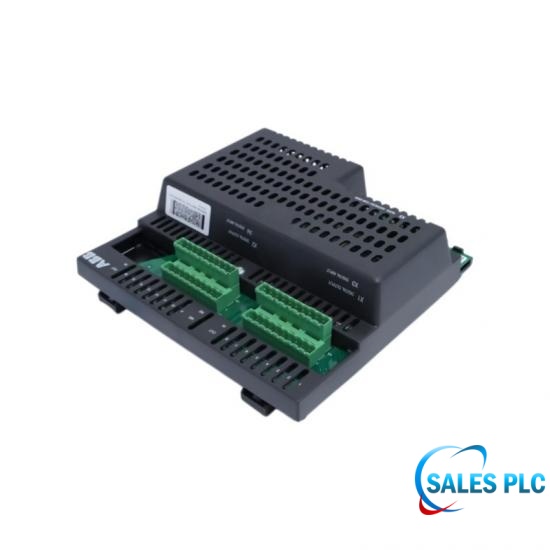

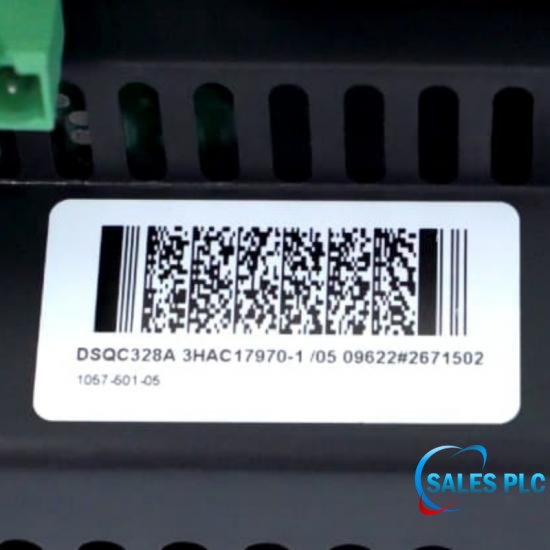

The ABB DSQC328A 3HAC17970-1 is a digital I/O unit designed for industrial robot control systems, providing 16 digital input channels and 16 digital output channels. The module accepts 24 V DC digital input signals and delivers 24 V DC transistor digital output signals, enabling reliable communication between the controller and external automation devices. It operates from a 24 V DC supply for stable digital signal processing.

Troubleshooting & Commissioning Checklist

Node Address Allocation: Set the physical hardware address using the onboard DIP switches or verify software assignment via the S4C/S4C+ Teach Pendant. Avoid network ID conflicts.
Baud Rate Alignment: Match the DeviceNet network baud rate with the robot controller's master configuration.
Process Power Isolation: Ensure external 24V DC process power for driving solenoid valves or sensors is wired to its dedicated isolated inputs. This protects internal logic from field inductive surges.

Field Engineering Considerations

V+ / V- Bus Power Quality: Internal transceiver operation on DeviceNet architectures depends entirely on an external 24 V DC supply loop. Confirm with a digital multimeter that the potential difference across the Red (V+) and Black (V-) conductors holds between 11 V and 25 V DC across all drops. Line attenuation from long distance cabling triggers a voltage collapse, forcing the component's Network Status (NS) indicator into a blinking red or unlit condition.
Vibration Resistance: Articulated manipulator arms and automated tooling assemblies subject connections to persistent mechanical jarring. Industrial field personnel must check that the 5-pole open plug and high-density I/O landing strips employ tension-clamp terminals or locking hardware to eliminate micro-separation, which induces sporadic bus timeout errors.

Technical FAQ

Q: What is the absolute current-handling ceiling for an isolated digital output point on the ABB DSQC328A 3HAC17970-1 card?
A: With a 24V DC excitation loop applied, each separate sourcing PNP transistor rail on the DSQC328A 3HAC17970-1 manages a continuous thermal rating peaking at 0.5 A. If the deployment interfaces with highly inductive field hardware—such as heavy pneumatic valve manifolds or magnetic interposing relays—shunting independent suppression diodes across the physical load leads is mandatory to intercept inductive kickback transients before they rupture the solid-state gates.

Q: What underlying mechanism allows digital inputs to register normally on the ABB DSQC328A 3HAC17970-1 while all 16 output points fail to turn on?
A: Successful input tracking during a uniform blackout across the 16 output channels normally stems from an upstream supply failure on the dedicated process voltage rail (V_proc). The core DeviceNet interface draws its logic power completely separately from the isolated field-side I/O power line; therefore, an unseated 24V DC terminal lead or a ruptured branch circuit fuse keeps the network diagnostic LEDs illuminated green, even though zero available gate biasing voltage leaves the output transistors entirely non-functional.

Q: In what manner does a field engineer assign the DeviceNet node identification address when installing a new ABB DSQC328A 3HAC17970-1 card?
A: Addressing this hardware demands manually positioning the integrated binary DIP switch toggles prior to locking the module into an energized chassis slot. These onboard physical switches align with basic base-2 arithmetic positions, meaning switches 1 through 6 carry mathematical weights of 1, 2, 4, 8, 16, and 32. This final physical configuration must mirror the explicit software MAC ID established inside the controller's main network topology layout.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
