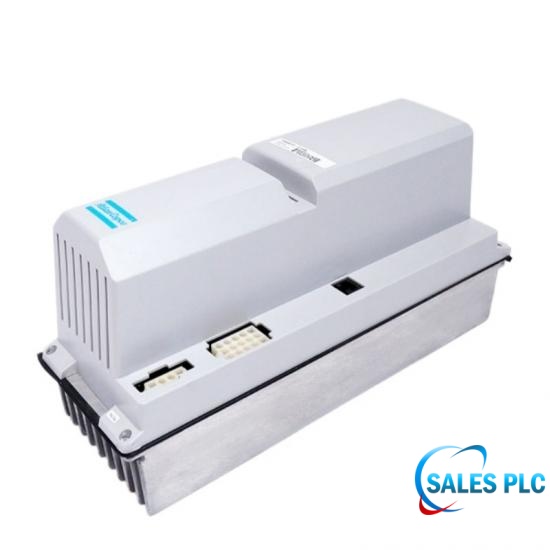

Rectifier Unit | DSQC345B 3HAB8101-2 | ABB

Key Highlights
Manufacturer: ABB

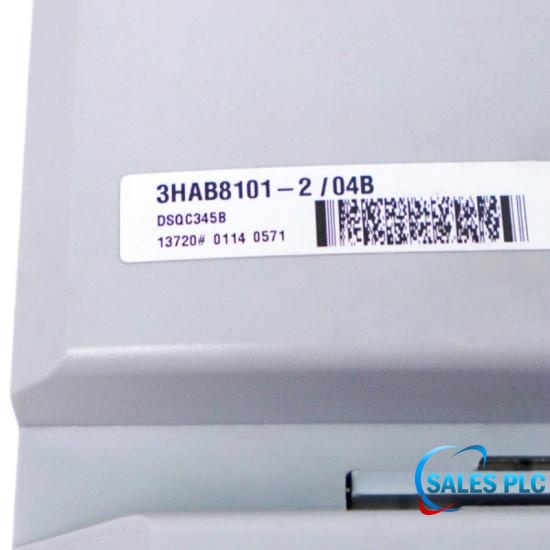

Model Number: DSQC345B 3HAB8101-2
Product Type: Rectifier Unit
Availability: In Stock
Condition: Original New
Country of Origin: Switzerland

Technical Specifications

The DSQC345B 3HAB8101-2 maintains high electrical safety standards under varying atmospheric conditions, operating safely within a Relative Humidity range of 10% to 95% under non-condensing conditions. The DSQC345B 3HAB8101-2 prevents moisture-related failures and corrosion by requiring strictly non-condensing humidity environments.

Troubleshooting & Commissioning Checklist

Verify Rack Seating: Ensure the module is firmly clicked into the controller unit chassis with no bent pins on its high-density backplane connectors. Observe Boot LEDs: Turn on the controller and check that the onboard CPU status LEDs switch from a red fault light to a stable green run configuration.
Lockout/Tagout: Ensure the main factory breaker and the controller’s main switch are off and locked.
DIP Switch Settings: Check the DIP switches on the side/base of the new module. They must match the exact layout of the old unit to ensure correct address mapping on the drive bus.
Bleeder/Resistor Check: Measure the resistance of the external braking resistor connected to the module. Verify it is not shorted or open-circuit.
Grounding: Confirm the module chassis is solidly grounded to the cabinet central ground plate.

Field Engineering Considerations

Cabinet Fan Inspection: Because this unit handles the primary rectification for the entire drive chain, it generates significant heat. Field engineers must verify that the cabinet exhaust fans are fully functional and that the air filters are clean. Reduced airflow will trigger premature thermal tripping or drastically shorten the life of the internal smooth capacitors.
Thermal Paste/Gasket: If the original installation utilized a thermal backplane gasket or paste, ensure it is cleaned and reapplied to maintain optimal heat dissipation to the cabinet chassis.

Technical FAQ

Q: Do I need to adjust the DIP switches on a new DSQC345B 3HAB8101-2 before installation?
A: Yes, absolutely. New or refurbished spare parts usually ship with default factory DIP switch settings. Before mounting the unit, you must mirror the exact DIP switch positions of the old module. If the switches are set incorrectly, the drive bus will fail to recognize the module, resulting in communication errors on the Teach Pendant.

Q: What is the most critical safety step that can never be skipped when replacing a DSQC345B 3HAB8101-2?
A: The 5-to-10-minute wait time after power-down. The module contains large internal capacitor banks that store lethal voltage (over 300V DC) even after the main cabinet switch is turned off. You must wait for them to discharge, and always use a multimeter (DC voltage mode) to measure the DC bus terminals to verify it reads 0V before touching any wiring.

Q: Does high factory humidity affect the exposed DC bus bars connected to the DSQC345B 3HAB8101-2?
A: Yes, severely. Because the DSQC345B 3HAB8101-2 outputs up to 360V DC across solid, exposed copper or metal interconnect bars, high humidity (above 95% or with condensation) can cause surface tracking or tracking arcs between adjacent drive modules. Ensure the cabinet door seals are intact and the internal climate control/heat exchanger is functioning.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
