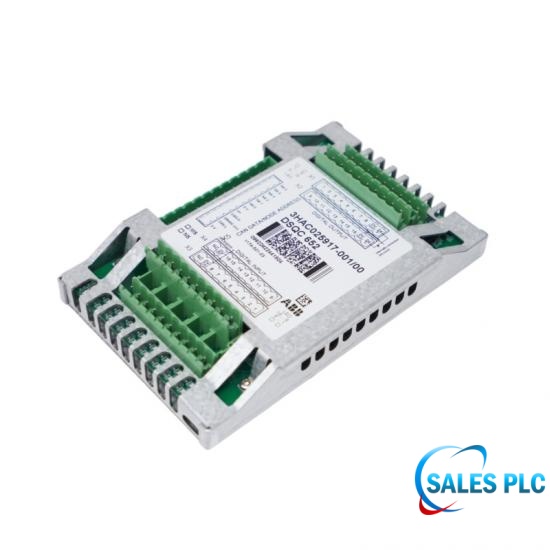

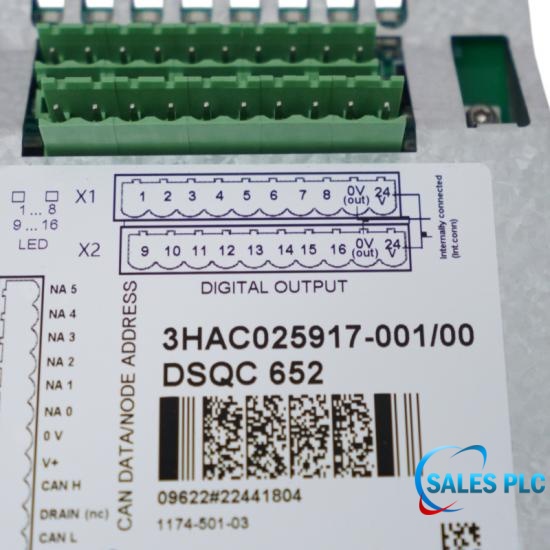

Digital I/O Unit | DSQC652 3HAC025917-001 | ABB

Technical Specifications

The DSQC652 3HAC025917-001 is designed to operate within an industrial temperature range of -20°C to +60°C, allowing performance in various automation environments. The module supports a storage temperature range of -40°C to +85°C, providing suitable conditions for transportation, warehouse storage, and long-term spare parts management. The temperature specifications of the DSQC652 3HAC025917-001 support stable operation across a wide range of industrial conditions.

Troubleshooting & Commissioning Checklist

Baud Rate Matching: Align the network communication speed using DIP switches 7–8 to match the system configuration.
Backplane/Rail Lock: Snap the DSQC652 3HAC025917-001 securely onto its designated mounting tray or panel rail. Ground screws must sit tight against the cabinet plate to anchor the shield line.
DeviceNet OK Status LED: Look for the front panel LEDs. The MS and NS lamps must transition to a solid Green state within 5 seconds.

Field Engineering Considerations

Shielding Ground Loops: Ensure that the DeviceNet cable shield is grounded at exactly one central point inside the main controller cabinet. Grounding the shield at multiple points, such as grounding the DSQC652 3HAC025917-001 chassis to a noisy local fixture frame out on the plant floor, creates ground loops that introduce electrical noise directly into the communication lines.
Cable Routing Clearances: Never route DeviceNet signal lines in the same wire duct or conduit as heavy high-voltage AC motor cables or welding power lines. Maintain a minimum of 300 mm of separation to prevent EMI from inducing CRC checksum errors on the bus.

Technical FAQ

Q: The MS LED on the DSQC652 3HAC025917-001 is steady Green, but the NS LED is solid Red or flashing Green. What is the cause?
A: The hardware itself is functional, but it failed to establish a communication link with the master controller. Verify that the binary DIP switches on the base of the board match the exact Unit Address (MAC ID, typically 10) mapped in RobotWare, and ensure switches 7–8 match the network baud rate.

Q: Do I need to connect a service laptop to flash firmware or reload programs after swapping a faulty DSQC652 3HAC025917-001?
A: No. The DSQC652 3HAC025917-001 is a standard distributed hardware node with no onboard software operating system. Under complete cabinet power shutdown, simply match the DIP switch positions on the base of the new board to the old one and perform an instant plug-and-play swap with zero data loss.

Q: To save production downtime during an active emergency, can I hot-swap or unplug the X1 bus terminal on the DSQC652 3HAC025917-001?
A: Absolutely not. The DeviceNet bus layout does not support live hot-swapping. Pulling the X1 connector under load generates severe micro-arcing that can burn the terminal pins and send a high-voltage data surge straight up the network line, destroying the main processing computer's bus motherboard.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
