Drive Module |DSQC651 3HEA800439-002 | ABB

Technical Specifications

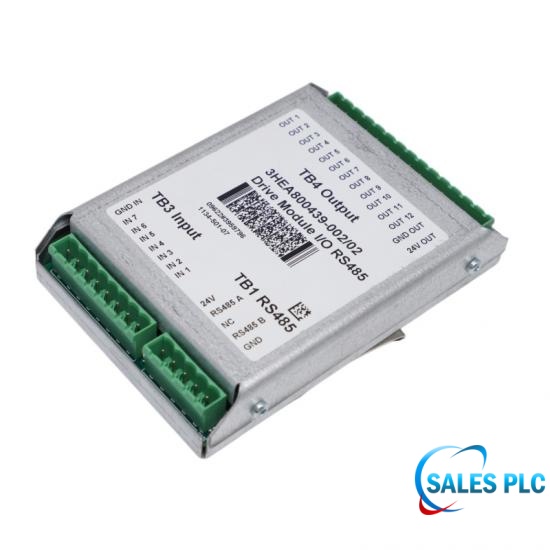

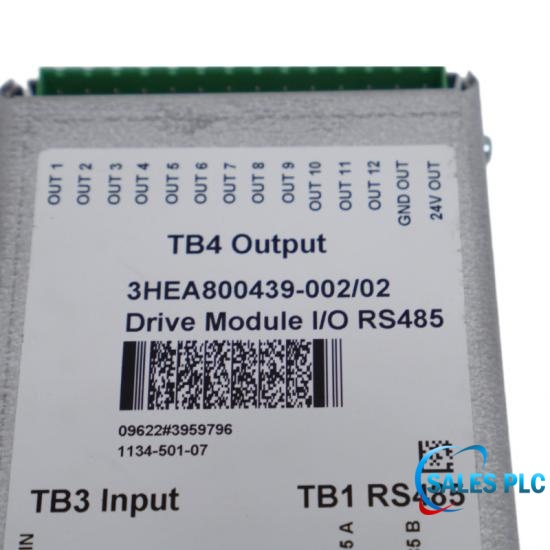

The ABB DSQC651 3HEA800439-002 is an industrial Drive Module I/O unit for the ABB IRC5 robot controller ecosystem. It provides a dedicated communication interface to handle signaling between the core system and external peripherals. The DSQC 651 is a circuit board normally mounted inside the robot controller. As an option, it may also be mounted in an external I/O module. The combi I/O device handles digital and analog communication between the robot system and any external systems.

Request a Quote Now | Email ：info@amikon.cn

Troubleshooting & Comissioning Checklist

Address Configuration: Set the DeviceNet address (MAC ID) using the onboard hardware switches.
Baud Rate Match: Confirm the board's hardware baud rate matches the IRC5 system master speed (typically 250 kbps or 500 kbps).
Bus Termination: Ensure a 120-ohm resistor is installed if this board sits at the physical end of the DeviceNet trunk.

Field Engineering Considerations

RS485 Termination: The module operates as a critical RS485 data bridge between the robot’s drive system and peripheral industrial equipment. Proper end-of-line termination resistors must be verified to prevent signal reflection.
EMI Shielding: Designed for electromagnetically noisy production environments. Ensure communication cables are properly shielded and grounded directly at the controller panel entry point to protect against high-voltage drive line interference.
Low Latency Criticality: The card handles rapid feedback loops for precision motor control. Avoid routing its serial lines parallel to high-current AC motor power cables to maintain minimal transmission delays.

Can't Find the Part? - Whatsapp +86 1802776786 for Assistance

Technical FAQ

Q: What type of communication protocol does this module use?
A: It is engineered exclusively for RS485 serial communication. It does not natively support standard Ethernet-based networks.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
