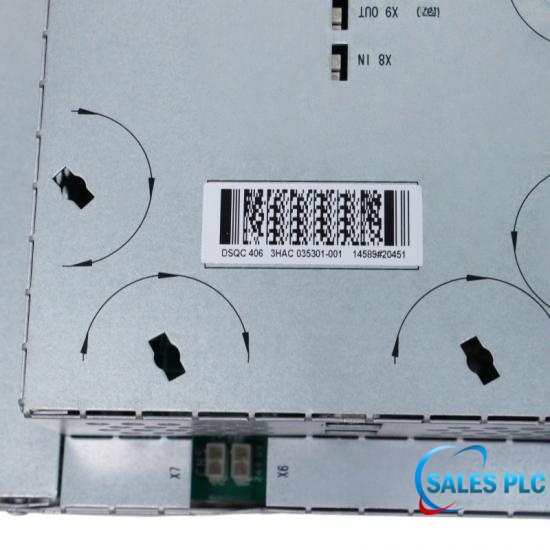

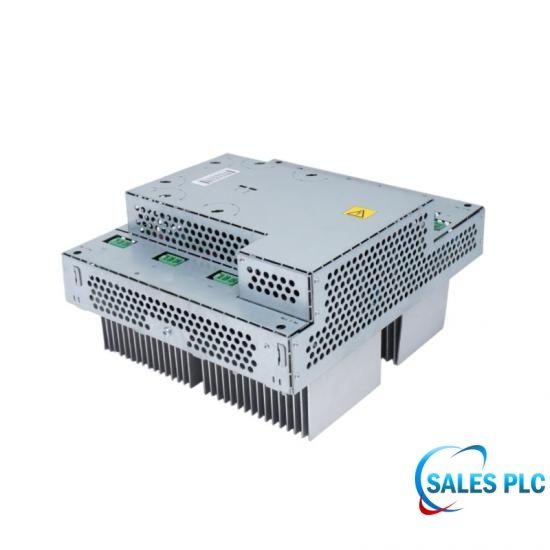

Drive Unit | DSQC406 3HAC035301-001 | ABB

Technical Specifications

The DSQC406 3HAC035301-001 is powered by 24 V DC via the controller backplane and includes communication interfaces such as Ethernet, serial links, and fieldbus depending on configuration. The DSQC406 3HAC035301-001 features industrial-grade PCB design with EMC shielding, with an operating temperature range of 0 °C to +55 °C and a storage temperature range of –40 °C to +85 °C.

Troubleshooting & Commissioning Checklist

Anti-Static Precautions: Ensure you are wearing a grounded ESD wrist strap before handling the module.
Physical Inspection: Check the casing for cracks, bent interface pins, or debris inside the cooling fan channels.
Screw Torques: Tighten all retaining screws to the specified torque to ensure proper grounding to the cabinet frame.

Field Engineering Considerations

Zero Force Insertion: The blind-mate backplane connectors at the rear of the unit handle high-density signaling. Never force the module into the slot. If it resists, remove it and check for misaligned guide pins or debris.
Grounding Loop Prevention: Ensure the faceplate mounting screws are fully tightened. The chassis of the DSQC406 3HAC035301-001 uses these mechanical mounting points to establish its reference ground to the control cabinet frame. Poor grounding creates high-frequency electromagnetic interference, causing erratic feedback errors on nearby analog/digital I/O loops.

Technical FAQ

Q: Is replacing the DSQC406 3HAC035301-001 module with a brand new one plug and play? Does it require rewriting the robot program?
A: The hardware is completely plug and play. Replacing this module does not require rewriting or modifying the user's motion program (rapid program). However, upon initial power-on, the IRC5 system may prompt for automatic synchronization/refresh of the drive's internal firmware; additionally, after replacement, the robot's axis counters must be recalibrated or updated on the teach pendant.

Q: What is the most critical safety procedure when disassembling or replacing the DSQC406 3HAC035301-001 in the field?
A: Strictly avoid high-voltage DC electric shock. Even after disconnecting the main power switch of the control cabinet, the large-capacity electrolytic capacitors inside the drive unit will still retain DC voltages as high as 600V or even higher. Never unplug the module immediately after power is off! You must wait strictly for 5 to 10 minutes, and use a multimeter to check that the DC bus voltage has dropped to a safe value (less than 50V), before wearing an anti-static wrist strap to disassemble.

Q: Why do loose screws on the DSQC406 3HAC035301-001 panel cause frequent driver errors?
A: Because the screws securing the DSQC406 3HAC035301-001 housing also serve as the grounding point (GND) for both the driver and the control cabinet housing. Loose screws can lead to poor module grounding, generating strong electromagnetic interference (EMI) during high-speed inverter switching, which can cause axis computer communication abnormalities (such as error 34202) or garbled position feedback data.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
