Encoder Interface Card | DSQC354 3HNE00065-1 | ABB

Technical Specifications

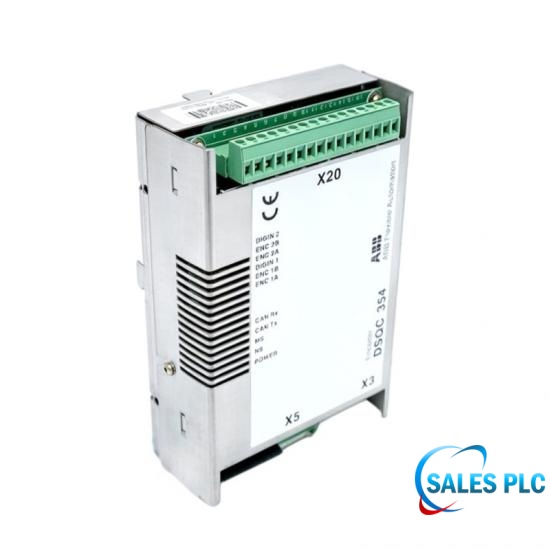

The DSQC354 3HNE00065-1 is an ABB Encoder Interface Card as an essential component for facilitating seamless connection between encoders and ABB robot systems. The DSQC354 3HNE00065-1 features a Protection Class of IP67, providing complete protection against dust ingress and temporary immersion in water, making it suitable for harsh factory floor environments.

Troubleshooting & Commissioning Checklist

Bus Bar Alignment: Align the solid power connectors carefully to adjacent drive modules without flexing the terminal casing to avoid physical PCB fractures.

Isolation Test: If doing a cabinet insulation check, physically disconnect the logic communication ribbon cable from the DSQC346G 3HAB8101-8 first. High testing voltage will instantly ruin the vector logic chips.

Field Engineering Considerations

Cabinet Fan Diagnostics: The DSQC354 3HNE00065-1 operates up to 55°C. However, failing cabinet cooling fans or clogged filters drastically increase internal rack temperatures. Always verify the rack fan is drawing sufficient CFM. Heat buildup causes intermittent gate-array timing glitches on the card.
Conductive Dust Accumulation: In environments like automotive welding or metal casting, carbon dust or metallic particles seep into non-IP67 legacy cabinets. Before sliding a replacement board into the backplane, inspect the card cage for conductive debris that could bridge the high-frequency encoder tracks.

Technical FAQ

Q: The robot frequently throws measurement errors, but sometimes slapping the cabinet temporarily fixes it. Is this related to the DSQC354 3HNE00065-1?
A: Yes, but it points to poor contact or fretting corrosion rather than a dead board. Since S4/S4C cabinets have been running for decades, the Eurocard multi-pin socket where the DSQC354 3HNE00065-1 plugs into the backplane can suffer from oxidization or dust buildup. Power down, pull the card, clean the gold contacts with electronic cleaner, and re-seat it tightly.

Q: After installing a new DSQC354 3HNE00065-1, the external axis occasionally errors out with "Position Deviation" as soon as the motor spins. What kind of interference is this?

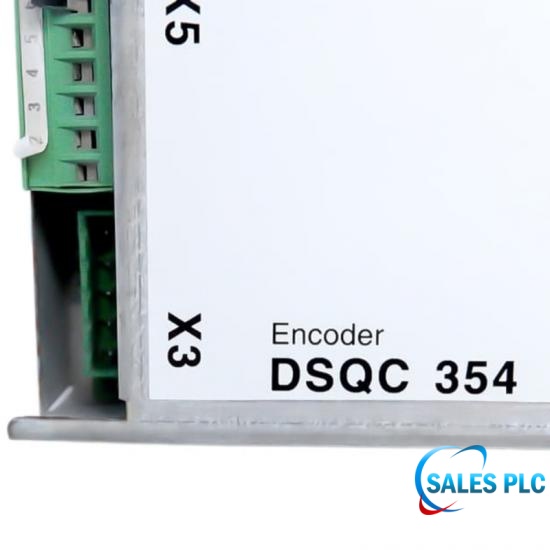

A: This is usually due to broken shielding or power line EMI (Electromagnetic Interference). Check the encoder cables routed into the X3/X5 terminals of the DSQC354 3HNE00065-1. Ensure the cable's shielding braid has a solid 360-degree single-ended ground termination on the cabinet chassis copper bar. High-voltage noise from parallel motor power lines can bypass the card’s internal filters and corrupt the encoder pulse count.

Q: I just installed a refurbished DSQC354 3HNE00065-1, and the controller hangs on a black boot-up screen. If I pull the card out, it boots fine. What is wrong?
A: The refurbished DSQC354 3HNE00065-1 has a internal short-circuit on its primary power tracks. When plugged in, it drags down the entire +5V logic bus of the S4/S4C backplane, preventing the main CPU board from booting up. Replace the board immediately to avoid damaging the backplane itself.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
