GE Mark VIe I O Packs: PAOC PDOA YDIA Differences

Start With the Signal Chain, Not the Part Number

A Mark VIe field point is a system path. Replacing just the pack without checking the surrounding hardware can turn an urgent order into a configuration problem.

STEP 01Field signalAnalogue command, discrete output, or safety-related input.

›

STEP 02Terminal boardThe required board and wiring arrangement define the physical interface.

›

STEP 03I/O PackPAOC, PDOA or YDIA processes the compatible signal family.

›

STEP 04IONet & ControlSTThe pack connects to the control architecture and configuration baseline.

The Three I/O Packs Buyers Most Often Confuse

MARK VIE · ANALOGUE OUTPUT

PAOC

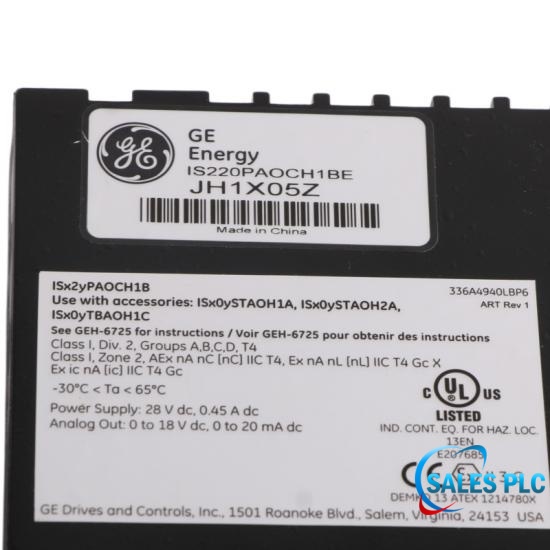

IS220PAOCH1B family

Signal role: Analogue output to field equipment.
Documented output: 0–18 Vdc and 0–20 mA in the cited certification configuration.
Board check: Confirm the approved STAO / TBAO terminal-board arrangement and every suffix.

MARK VIE · DISCRETE OUTPUT

PDOA

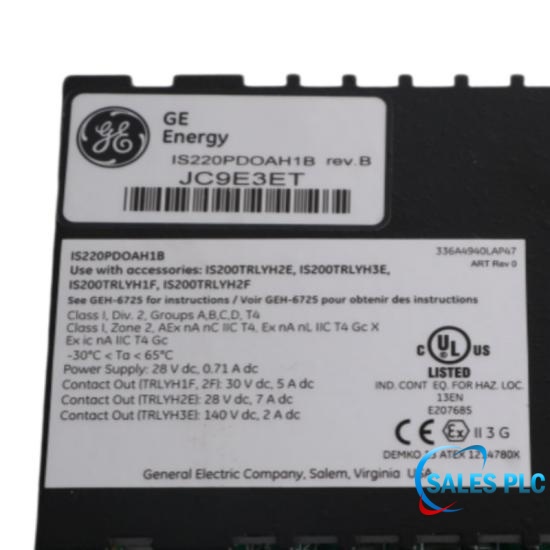

IS220PDOAH1B

Signal role: Discrete output function for the installed Mark VIe application.
Board check: Verify the compatible relay / output terminal-board family specified for the installed configuration.
Do not assume: A similar output pack is not a universal substitute.

MARK VIES · DISCRETE INPUT

YDIA

IS220YDIAS1A family

Signal role: Discrete-contact input within the Mark VIeS safety-control family.
System distinction: VIeS identification and associated terminal hardware must be preserved.

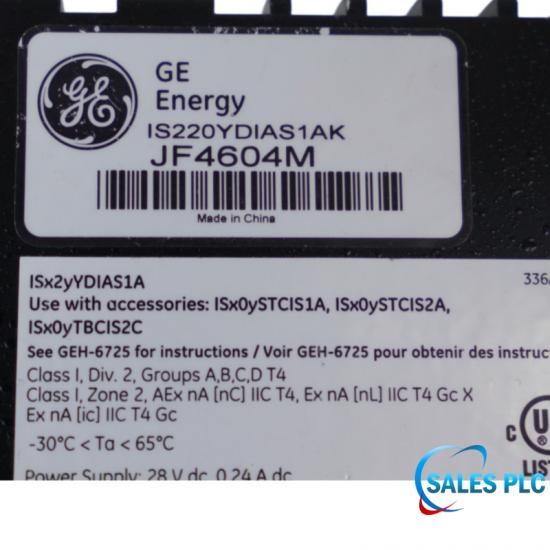

Order check: Use the full nameplate suffix; the SalesPLC record includes an IS220YDIAS1AK variant.

Key point: PAOC, PDOA and YDIA may share the same physical product style, but they are not interchangeable. Their function, terminal board, configured signal and system family are different.

What Is Inside a Mark VIe I/O Module?

Three-part field interface

1

Termination blockField wiring lands at the local interface.

2

Terminal boardDefines the electrical arrangement that the I/O Pack must match.

3

I/O PackContains the local processor and IONet connection for the configured function.

Architecture signals

2IONet ports per I/O Pack

1 msTime synchronization for discrete SOE function

LocalDiagnostics and voting at pack level

Simplex / dual / TMRArchitecture options within the Mark VIe platform

Are These Models Being Replaced?

What GE's current platform information supports

GE Vernova describes Mark VIe as the standard controls platform for new units and states that processors, I/O Packs, switches and HMI hardware can be updated as separate system components. ControlST is the shared configuration and diagnostic environment.

Practical takeaway: the platform family identifies the direction of the architecture, not a universal drop-in replacement. Approve a spare only after its I/O role, terminal board and configured software baseline have been checked against the running unit.

What still needs a site-specific check

Exact pack code and all suffixes
Terminal-board number and wiring
Controller / IONet architecture
ControlST and firmware baseline
Certification and project acceptance requirements

A newer platform or a visually similar pack should never be presented as a direct replacement until those five points have been confirmed. Current public platform information does not itself establish a one-to-one successor for every installed PAOC, PDOA or YDIA variant.
