GE VMIVME-4140-000000 32-Channel 12-bit Analog Output Board

Technical Specifications

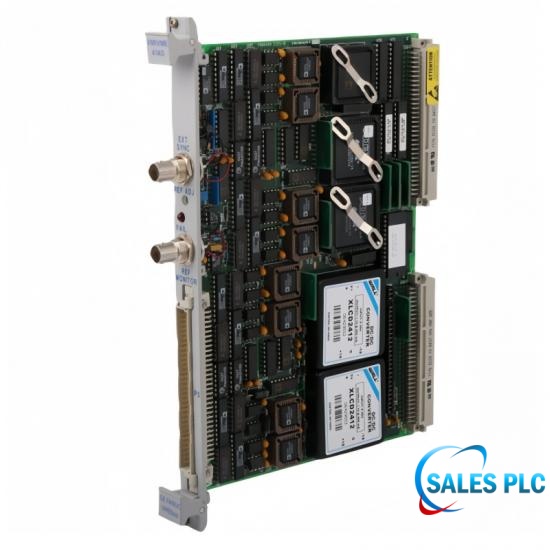

The VMIVME-4140 Analog Output Board provides 32 high quality analog output channels with 12-bit resolution, and can source or sink 10 mA at ±10 V. Each output has a dedicated D/A Converter (DAC) assigned to it. The analog outputs can be disconnected from the field wiring for offline testing. Calibration and self-test are initiated by a VMEbus system reset or by execution of a software command. During calibration, a table of offset and gain coefficients is compiled and stored in RAM. There is an entry for offset and gain corresponding to each of the 32 channels configured in each of the six output voltage ranges.

Functional Characteristics

Self-Test Function:Built-in self-test automatically runs after system reset. The self-test register provides pass/fail status and identifies failed channels.
Output Isolation Function:Analog outputs can be disconnected from field wiring to support offline testing and system diagnostics.

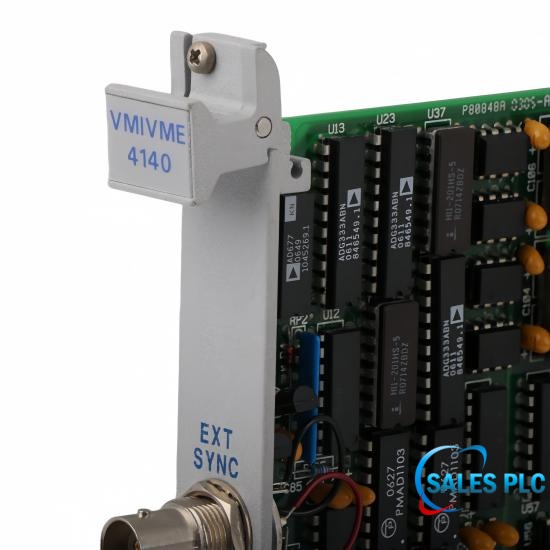

Front Panel Interface:Provides front panel analog output connector, status LED indicator, and reference voltage access.
Reference Voltage Function:Includes a single reference potentiometer for analog output reference adjustment.
VMEbus Control:Operates as a VMEbus analog output board with software-controlled configuration and operation.

Features

• 32 analog output channels
– 10mA maximum output current per channel
– One 12-bit D/A converter (DAC) per output channel
• 0.8Ω output impedance
• Random update (nonscanning)
• Software or external synchronous update of double-buffered outputs
• Single reference potentiometer – no other manual calibration required
• Automatic calibration initiated by reset or by software command
• Unipolar (0 to +10V, 0 to +5V, 0 to +2.5V)

FAQ  技术常见问题解答

Q: What data formats does VMIVME-4140-000000 support?
A: It supports offset binary and two’s complement data formats.

Q: What is the output impedance of VMIVME-4140-000000?
A: It provides less than 0.8 Ω online impedance.

Q: How does VMIVME-4140-000000 perform calibration?
A: It supports automatic calibration through reset or software commands.

Q: What protection feature does VMIVME-4140-000000 include?
A: It includes short circuit protection and transient overvoltage protection up to ±25 V for 1 second.
