GE XMTC-6C-11 Thermal Conductivity Binary Gas Transmitter

In Stock Brand New and Original SealedXMTC-6C-11 Thermal Conductivity Binary Gas Transmitter

Product Condition
Original New with One Year Warranty
Parts Available
In Stock and Same Day Shipping
Delivery Mode
Shipping via DHL Fedex or UPS etc
Email:
sales8@amikon.cn
Whatsapp/Mob:
+86 18030235313

Description

Key Highlights
Manufacturer: GE
Model Number: XMTC-6C-11
Product Type: Thermal Conductivity Binary Gas Transmitter
Availability: In Stock
Condition: Original New
Country of Origin: USA

Technical Specifications

• Ultra-stable glass-coated thermistors
• Single or dual gas push-button calibration
• PC interface package for digital output
• Type IP66/4X construction
• ATEX, IECEx, FM and CSA certified for Zone I and Division 1 hazardous areas

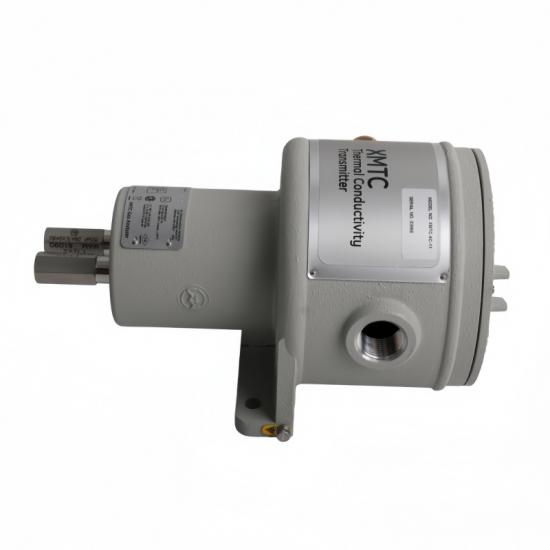

The microprocessor-based XMTC is a compact, rugged, online thermal conductivity transmitter that measures the concentration of binary gas mixtures including hydrogen,carbon dioxide, methane, helium and many others. The analyzer also combines computer enhanced signal measurement with fast-response software, real-time error detection and digital communication via an RS232 or RS485 interface.

Part Number	XMTC-6C-11
Product Type	Thermal Conductivity Binary Gas Transmitter
Accuracy	±2% of span
Linearity	±1% of span
Zero Stability	±0.5% of span per week
Span Stability	±0.5% of span per week
Response Time	20 seconds for 90% step change
Required Sample Flow Rate	0.1 to 4.0 SCFH (10 to 2,000 cc/min); 0.5 SCFH (250 cc/min) nominal
Required Flow Rate for Optional Reference Gas	0.01 to 4.0 SCFH (5 to 2,000 cc/min); 0.5 SCFH (250 cc/min) nominal
Analog Output	4 to 20 mA isolated, 800 惟 maximum load, field-programmable
Power	24 VDC ±2 VDC, 1.2 A maximum
Standard Temperature	131°F (55°C)
Optional Temperature	158°F (70°C)

Minimal calibration and service

The XMTC is the most stable thermal conductivity analyzer on the market today. The rugged XMTC measuring cell resists contamination and remains insensitive to flow variations. Since the design uses no moving parts, the transmitter can easily withstand the shock, vibration and harsh environment found in many industrial applications. If the transmitter requires maintenance, its modular construction permits fast and easy servicing. Users can field-calibrate it quickly and replace the plug-in measuring cell with a precalibrated spare in minutes.

Sample system

A sample system is mandatory for use with the XMTC. The design of the sample system will depend on the conditions of the sample gas and the requirements of the application. In general, a sample system must deliver a clean, representative sample to the XMTC at a temperature, pressure and flow rate that are within acceptable limits. Standard XMTC sample conditions are: a temperature of less than 122°F (50°C) for a cell operating temperature of 131°F (55°C) with a flow rate of 0.5 SCFH (250 cc/min) at atmospheric pressure. A higher temperature option is available.

Technical FAQ

Q: What gases can XMTC-6C-11 measure?
A: It measures binary gas mixtures including hydrogen, carbon dioxide, methane, and helium.

Q: What type of transmitter is XMTC-6C-11?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: What is the response time of XMTC-6C-11?
A: The response time is ≤2 seconds.

Q: What is the accuracy of XMTC-6C-11?
A: The accuracy is ±0.1% of reading ±2 counts.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
