Description

Key Highlights
Manufacturer: Bently Nevada

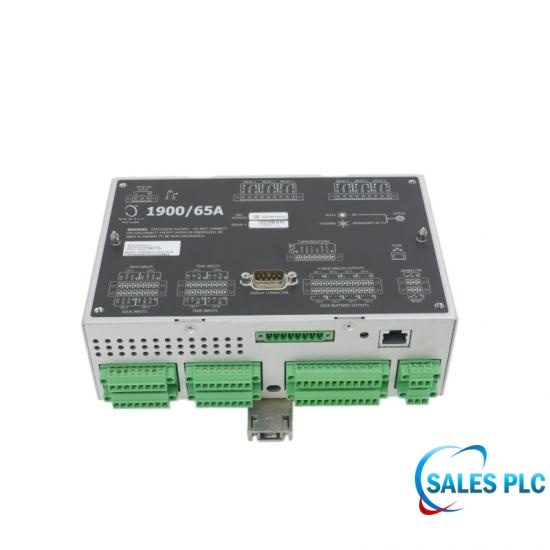

Model Number: 1900/65A 172323-01
Product Type: General Purpose Equipment Monitor
Availability: In Stock
Condition: Original New
Country of Origin: USA

Technical Specifications

The 1900/65 General Purpose Equipment Monitor is designed to continuously monitor and protect equipment that is used in a variety of applications and industries. The monitor’s low cost makes it an ideal solution for generalpurpose machines and processes that can benefit from continuous monitoring and protection.

Manufacturer	Bently Nevada
Article number	1900/65A 172323-01
Type	General Purpose Equipment Monitor
Dimension	19.6x16.2x8cm
Weight	0.9kg
Recorder Outputs	Four 4–20 mA recorder outputs
Relay Outputs	Six relay outputs
Operating Temperature	−20°C to +70°C (−4°F to +158°F)
Storage Temperature	−30°C to +90°C (−22°F to +194°F)
Operating Humidity	95% non-condensing maximum
Storage Humidity	95% non-condensing maximum
DIN Rail Mounting	35 mm DIN rail
Bulkhead Mounting	Bulkhead mounting plate
Weatherproof Enclosure	NEMA 4X / IP66 fiberglass housing with window, 300.2 × 249.4 × 209.8 mm (11.82 × 9.82 × 8.26 in)
Input Voltage Range	18 to 36 VDC
Operating Current	0.35 A typical, 1.0 A maximum
Operating Power	8.5 W typical, 14 W maximum
Status LED	Indicates when the monitor is functioning properly
Relay Type	Single-pole double-throw (SPDT)
Max Switched Voltage (DC)	300 VDC
Max Switched Voltage (AC)	400 VAC
Max Switched Current (DC)	5 A
Max Switched Current (AC)	6 A
Max Switched Power (DC)	150 VA
Max Switched Power (AC)	1500 VA
Min Switched Current	100 mA / 12 VDC
Contact Life	100,000 cycles @ 5 A, 250 VAC; 200,000 cycles @ 1 A, 24 VDC
Relay Sealing	Epoxy
Buffered Outputs	Dedicated buffered output for each input channel (1–4), with short-circuit and EMI protection
Output Impedance	550 Ω
Bandwidth	40 kHz minimum

Feature

Continuous monitoring and protection is suitable for auto-shutdown applications

Stand-alone operation on general-purpose equipment

Optional Modbus communications via 10BaseT/100BaseTX Ethernet, or software-configurable 485/232 serial port

Hazardous area approvals

Configuration and Field Maintenance Tips

Standard Configuration Software: The 1900/65A 172323-01 has its own dedicated 1900 Configuration Software, which defines sensor types, full-scale range, filter poles, and relay tripping decisions. It does not rely on the 3500 rack configuration software.

Hazardous Area Use: While this module is typically restricted to installation in Class I, Div 2 / Zone 2 non-hazardous or safe areas, its built-in safety channel design allows it to directly connect to and receive sensor probe signals installed in Div 1 / Zone 0 (high-risk areas).

Technical FAQ

Q: How many signal inputs does the 1900/65A 172323-01 support?

A: It supports 4 vibration sensor inputs and 4 temperature sensor inputs, providing a total of 8 channels.

Q: What types of probes are compatible with the vibration channels (Channels 1–4) of the 1900/65A 172323-01?

A: Through flexible software configuration, it supports 2-wire or 3-wire accelerometers, velocity sensors, and eddy current proximity displacement probes.

Q: What mounting options are available for the 1900/65A 172323-01?

A: It supports standard DIN-rail mounting and can also be installed using a backplate for panel/bulkhead mounting.

Q: How are the parameters and alarm setpoints configured for the 1900/65A 172323-01?

A: The dedicated 1900 Configuration Software must be used. By connecting a computer to the monitor, users can configure the sensor scale factors, measurement ranges, and the Alert and Danger trip logic settings.

Q: Are your products brand new?
A: Yes. We only supply 100% original and brand-new products. All items are sourced through authorized channels and have never been used or refurbished.

Q: Why can customers buy with confidence?
A: Because every product is backed by our 1-Year Warranty Guarantee of Quality, ensuring reliability, customer satisfaction, and long-term support after delivery.

Q: Do you provide international shipping?
A: Yes. We ship products to customers worldwide using reliable international logistics services such as EMS, DHL, UPS, and FedEx.
