Input/Output Processor| DSDP 150 5716-0001-GF | ABB

Technical Specifications

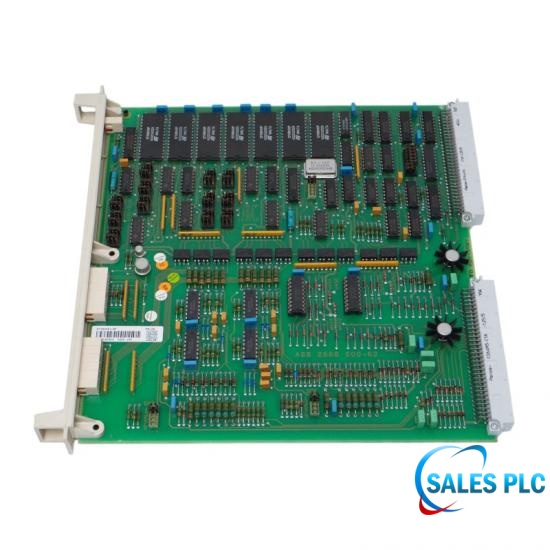

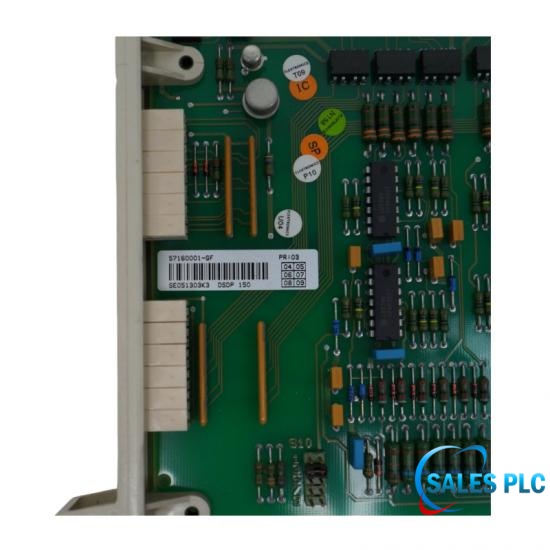

The ABB DSDP150 5716-0001-GF Industrial Control Module is engineered for seamless integration into complex industrial systems, offering unparalleled reliability and efficiency.  DSDP 150 Pulse Encoder Input Unit for 12 V DC used for both pulse counting and frequency measurement and has inputs which can be connected to pulse generators with a frequency of up to 10 kHz.

Troubleshooting & Comissioning Checklist

Subrack Addressing: Set the correct station/slot address using the onboard DIP switches according to your system topography.
Shielding Ground: Check that pulse generator cables use twisted-pair shielded lines, grounded only at the control panel chassis end.
Frequency Compatibility: Verify that the connected pulse generator or encoder does not exceed the maximum 10 kHz operating limit.

Field Engineering Considerations

Cable Selection: Field connections must use twisted-pair, individually shielded cables.
Shield Grounding: Field encoder shields must be grounded strictly at one end—preferably at the cabinet's designated EMC earth bar via low-impedance grounding clamps—to prevent ground loops from injecting phantom pulses into the counter.
Separation: Route high-frequency pulse cables away from high-power AC motor lines, VFD output lines, and switching inductive loads within the wire ducts.

Technical FAQ

Q: What is the primary function of the DSDP 150?
A:It serves as an interface between physical hardware pulse generators (like rotary encoders) and the central control system, processing inputs for pulse counting and frequency measurement.

Q: Does the unit offload processing from the central CPU?
A: Yes. The module features on-board processing capabilities. It handles tasks like signal filtering, time tagging, and gain control autonomously to enhance real-time performance.

Q: How does the DSDP 150 differ from the DSDP 340 module?
A:The DSDP 150 offers a simplified interface and faster processing speeds optimal for straightforward synchronization tasks. However, unlike the DSDP 340, it lacks multi-functional complex protection circuits required for advanced grid-paralleling operations.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
