Main Computer Board | DSQC 325 3HAB2241-1 | ABB

Technical Specifications

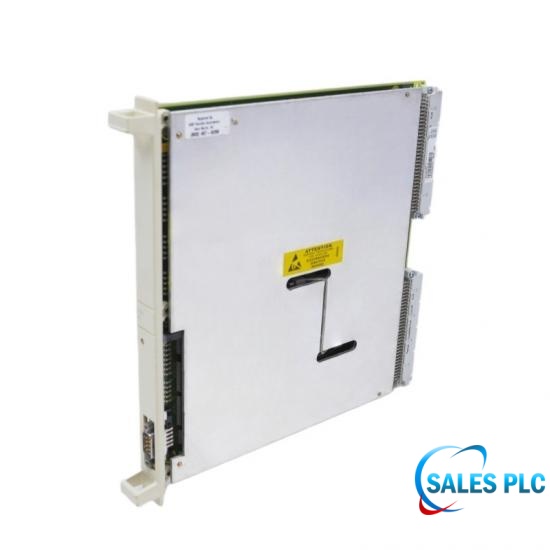

The ABB DSQC 325 3HAB2241-1 is an industrial controller board for automation and robotic control applications. The DSQC 325 3HAB2241-1 features dual connectors for secure hardware integration and includes a built-in 9-pin serial port for dependable communication with connected devices. Operating from a 24 V DC input supply, the module is equipped with a 25 MHz processor clock speed, providing stable processing performance for industrial control tasks while maintaining reliable operation in demanding environments.

Troubleshooting & Commissioning Checklist

Jumper Alignment: Duplicate the precise placement of every onboard pin bridge from the previous circuit to the replacement to maintain proper hardware IDs or memory mapping.
Secure Seating: Push the unit squarely into the rack enclosure guide tracks, exerting steady force until the twin backline headers engage fully with the receiver.
Tighten Fasteners: Anchor the faceplate locking bolts completely to establish a solid chassis earth connection and isolate the hardware against operating tremors.

Field Engineering Considerations

Mitigation Strategy: Before sliding a replacement DSQC 325 3HAB2241-1 into the subrack, use specialized electrical contact cleaner to clear out the backplane female slots. Check the cabinet cooling fans and filters; a failed fan causes localized heat pockets that will rapidly bake the replacement 25 MHz processor.
Backplane Fatigue: The dual-connector system on the rear of the DSQC 325 3HAB2241-1 mates with an aging passive motherboard backplane. Decades of robot vibrations can make these backplane sockets brittle.
Unsynchronized Revolution Counters: Swapping the main computer entirely wipes the volatile memory containing the robot's fine calibration offsets.

Technical FAQ

Q: Why does the system lose its program files and calibration every time I reboot the DSQC 325 3HAB2241-1?
A: Each power cycle triggers a memory wipe because the card's onboard storage relies on a dead accumulator cell, which cannot provide the required standby voltage when offline.

Q: Can I hot-swap the DSQC 325 3HAB2241-1 while the control cabinet power is still turned on?
A: Never pull this card energized. To avert severe backplane arcing, always open the primary circuit breaker and secure the station via LOTO before handling the hardware.

Q: Do I need to recalibrate the robot axes after installing a new DSQC 325 3HAB2241-1?
A: Yes, because the fresh CPU lacks the tracking history. You must drive the arm to its physical alignment scribes and flash the new revolution totals into the controller.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
