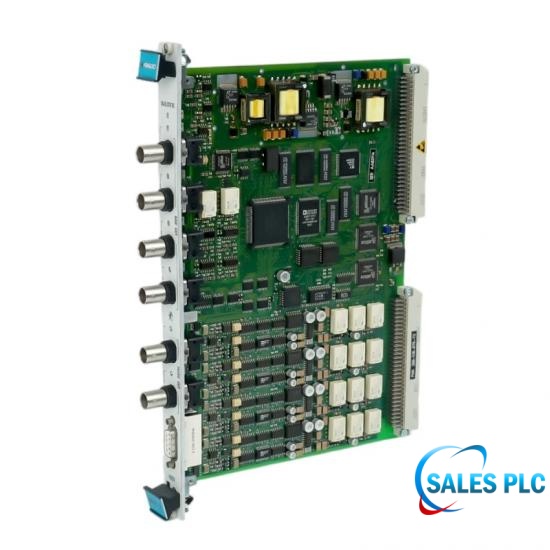

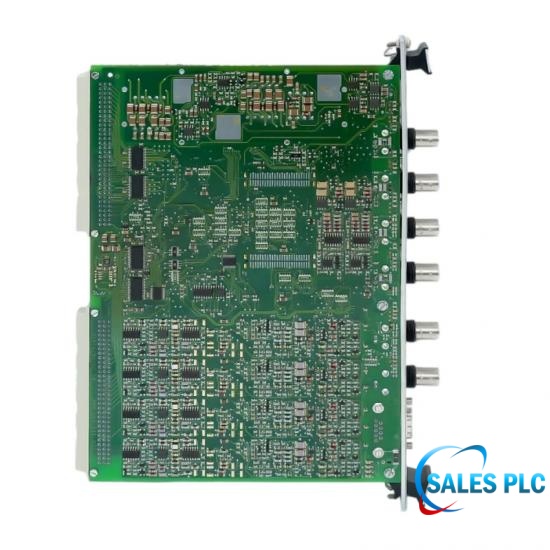

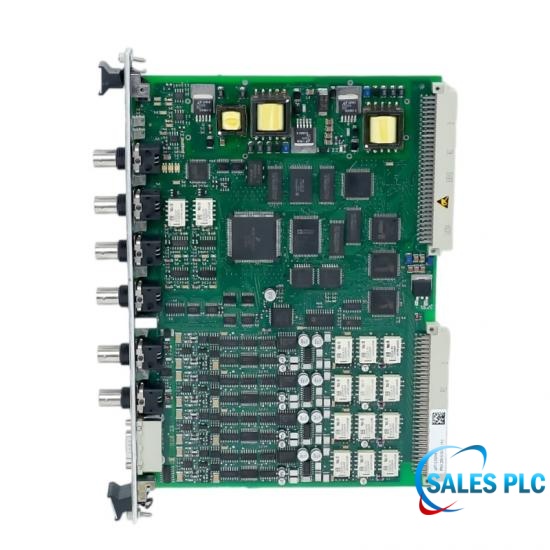

Meggitt Vibro-Meter MPC4 Mk2 600-041 Machinery Protection and Condition Monitoring Module
MPC4 Mk2 600-041
Machinery Protection and Condition Monitoring Module · Four-Channel Machinery Monitoring Processing Module for vibro-meter VM600 Mk2 Platform
Lifecycle note: Use the unit nameplate and current Meggitt Vibro-Meter documentation as final references before approving a replacement.
Product Condition
Original New with One Year WarrantyParts Available
In Stock and Same Day ShippingDelivery Mode
Shipping via DHL Fedex or UPS etcEmail:
sales17@amikon.cnWhatsapp/Mob:
+86 15359408275Machinery Protection and Condition Monitoring Module · vibro-meter VM600 Mk2 Platform
Meggitt Vibro-Meter MPC4 Mk2 600-041 is a VM600 Mk2 processing module that combines machinery protection with optional condition-monitoring capability. The module processes dynamic sensor inputs and executes configured monitoring and protection functions for critical rotating machinery.
Meggitt Vibro-Meter MPC4 Mk2 600-041 works with an IOC4 Mk2 input/output module to provide signal interfaces, alarm and relay functions, and protected system integration. Four dynamic channels can be configured for suitable vibration, position or related machinery measurements.
The MPC4 Mk2 is managed using VibroSight software. VibroSight Protect configures machinery-protection functions, while an optional condition-monitoring license enables capture and analysis capabilities without adding a separate protection processor.
Confirm the complete MPC4 Mk2 ordering number, hardware version, CMS license status, firmware, IOC4 Mk2 pairing, channel configuration and saved VibroSight project before replacement or commissioning.
| Manufacturer | Meggitt Vibro-Meter |
|---|---|
| Model | MPC4 Mk2 600-041 |
| Product type | Four-Channel Machinery Monitoring Processing Module |
| System family | vibro-meter VM600 Mk2 Platform |
| Processing channels | Four dynamic measurement channels |
| System software | VibroSight Protect with optional condition monitoring |
| Companion module | IOC4 Mk2 input/output module |
| Module version | Standard MPC4 Mk2, PNR 600-041, supplied without a CMS license |
| Auxiliary channels | Two independent channels configurable as tachometer or DC inputs |
| Supported sensor signals | Current-output 2-wire and voltage-output 3-wire measurement chains |
| Dynamic voltage inputs | 0 to +20 VDC or 0 to -20 VDC; ±20 V peak-to-peak AC; ±24 V peak-to-peak AC+DC |
| Dynamic current inputs | 0 to 35 mA DC; ±30 mA peak-to-peak AC |
| Tachometer performance | 1 to 100,000 RPM measurement range; pulse acquisition up to 51.2 kHz |
| Digital conversion | 24-bit ADC with at least 80 dB dynamic range |
| Measurement bandwidth and accuracy | DC to 20 kHz; amplitude accuracy ≤1% full scale; phase accuracy ≤1.5° |
| Acquisition modes | Fixed-frequency sampling or order tracking |
| Waveform and spectrum resolution | Up to 16,384-point waveforms and 6,400-line spectra when condition monitoring is licensed |
| Processed outputs and update rate | Up to 10 processed outputs per channel or function; minimum update 20 ms time-domain and 100 ms frequency-domain |
| Analog outputs | Four outputs, each configurable as 4–20 mA or 0–10 V |
| Relay outputs | Four user-configurable relays plus one FAULT/status relay |
| Ethernet communications | 10/100BASE-TX, up to 100 Mbps, TCP/IP communications for VibroSight |
| Power consumption | MPC4 Mk2 below 6 W; MPC4 Mk2 and IOC4 Mk2 pair below 15 W |
| Sensor power supplies | Six independent supplies; +24 or -24 VDC up to 25 mA, or +6 mA constant current |
| Environmental limits | Operating -20 to +65 °C; 0–95% RH non-condensing; maximum altitude 2,000 m |
| Mechanical and rack compatibility | 6U module, 20 mm wide × 187 mm deep, approximately 0.42 kg; compatible with ABE04x system racks and ABE056 slimline racks |
| Compliance | API 670; CE; EN 61000-6-2 and EN 61000-6-4 EMC; EN 61010-1 electrical safety; RoHS |
| Condition monitoring license | Optional for PNR 600-041; requires the MPC4 Mk2 CMS license and a compatible VibroSight software license |
Use the installed-unit nameplate and current Meggitt Vibro-Meter documentation as the final references before approving a replacement.
Meggitt Vibro-Meter MPC4 Mk2 600-041 is a VM600 Mk2 processing module that combines machinery protection with optional condition-monitoring capability. The module processes dynamic sensor inputs and executes configured monitoring and protection functions for critical rotating machinery.
Meggitt Vibro-Meter MPC4 Mk2 600-041 works with an IOC4 Mk2 input/output module to provide signal interfaces, alarm and relay functions, and protected system integration. Four dynamic channels can be configured for suitable vibration, position or related machinery measurements.
Meggitt Vibro-Meter MPC4 Mk2 600-041 is associated with vibro-meter VM600 Mk2 Platform and should be matched to the installed platform.
Meggitt Vibro-Meter MPC4 Mk2 600-041 is identified as a Four-Channel Machinery Monitoring Processing Module.
For Meggitt Vibro-Meter MPC4 Mk2 600-041, confirm processing channels (Four dynamic measurement channels) together with the complete identification.
Meggitt Vibro-Meter MPC4 Mk2 600-041 should not be substituted until the part number, revision, physical configuration and installed-system requirements are verified.
Check Meggitt Vibro-Meter MPC4 Mk2 600-041 for the exact part number, revision, connector layout, mounting, electrical configuration and application before ordering.
Technical information for Meggitt Vibro-Meter MPC4 Mk2 600-041 should be checked against the installed nameplate and current official Meggitt Vibro-Meter documentation.
We can supply Meggitt Vibro-Meter MPC4 Mk2 600-041 in 100% original-new condition with factory seal and provide a 1-year warranty, subject to stock confirmation.
Send the model, complete identification, quantity, destination and nameplate photo. We will verify identification details before confirming availability and lead time.
