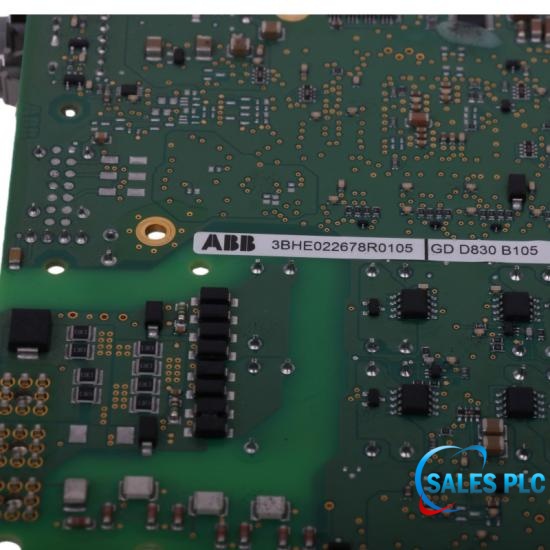

Motor Driver Module |3BHE022678R0105 GDD830 B105 | ABB

Technical Specifications

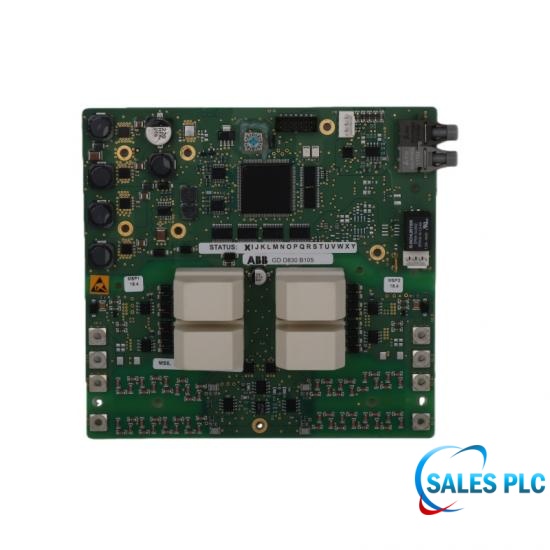

The ABB 3BHE022678R0105 GD D830 B105 Motor Driver Module is an advanced gate drive module  to optimize the performance of high-power semiconductor devices in industrial control systems. This state-of-the-art Gate Drive module from ABB is engineered for high-performance and reliability in complex industrial environments. It seamlessly integrates with ABB‘s comprehensive range of motors and drives, offering unmatched efficiency and accuracy in controlling the flow of power to electric motors.Featuring an advanced control algorithm, this module optimizes energy consumption and reduces operational costs significantly. Its robust design withstands harsh industrial conditions, ensuring continuous operation even under extreme temperatures.

Troubleshooting & Comissioning Checklist

De-energize & Lockout: Ensure all high-voltage sources are locked out, tagged out, and local DC link capacitors are fully discharged.
Inspect Physical Integrity: Visually check the board for cracked resistors, discolored areas indicating thermal stress, or loose surface-mount devices.
Tighten Power Connections: Ensure the primary gate, emitter/cathode, and auxiliary power wiring terminations are securely torqued to specifications.

Field Engineering Considerations

EMI/RFI Shielding: Isolate the high-power switching side from the low-voltage logic side using proper physical separation and shielded control cables to prevent electrical noise from disrupting the gate signals.
Power Supply Stability: Ensure the input auxiliary power supply feeding the gate drive board is strictly regulated and properly decoupled to handle instantaneous peak current draws during device turn-on phases.
Active Dissipation: Power semiconductor components emit significant heat; field engineers must verify that cooling fans or liquid cooling loops maintain cabinet temperatures within ABB's specified operating thresholds.

Technical FAQ

Q: What is the primary function of the GDD830 B105 board?
A:The board functions as a gate driver circuit. It acts as an intermediary amplifier that accepts low-power control signals from a microcontroller or PLC and transforms them into a high-current gate drive input for power semiconductor switches inside motor drives and power converters.

Q: With which systems is this component compatible?
A:It is widely designed for ABB heavy industry drive families, variable frequency drives (VFDs), and control units. It works alongside related industrial control hardware such as the UFC912 or PPC932 CPU modules.

Q: Can this circuit board be repaired, or does it require full replacement?
A:Many industrial service providers offer component-level diagnostic and repair options, such as replacing dried-out electrolytic capacitors or faulty optocouplers. However, critical safety applications usually demand a direct module replacement with factory-sealed or certified refurbished units to ensure total timing reliability.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?

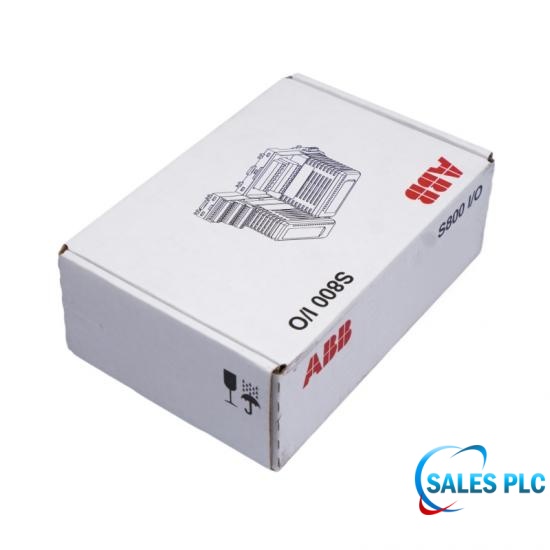

A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
