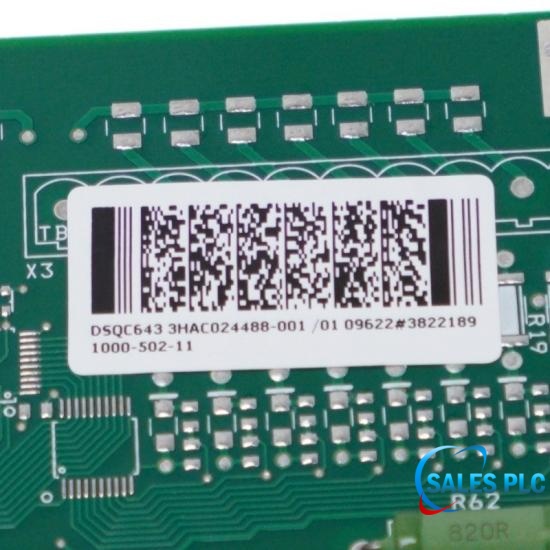

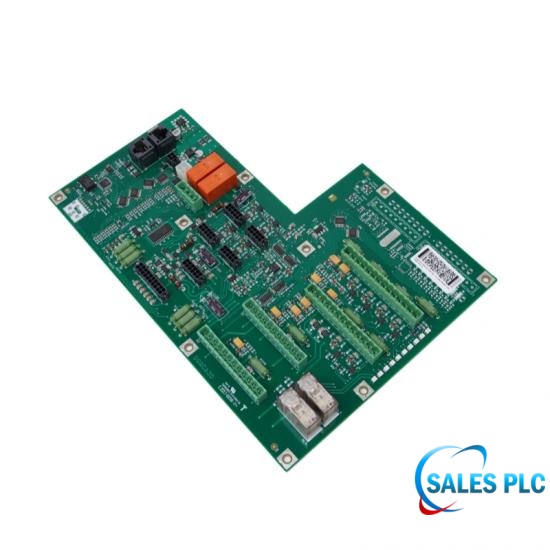

Panel Board | DSQC643 3HAC024488-001 | ABB

Technical Specifications

The ABB DSQC643 3HAC024488-001 is a panel board module for industrial automation control applications. The DSQC643 3HAC024488-001 operates with a rated operating voltage of 24V DC, supporting stable low-voltage control applications. With its industrial-grade construction and panel mounting configuration, the DSQC643 3HAC024488-001 is suitable for installation in industrial control environments requiring signal connection and interface management.

Troubleshooting & Commissioning Checklist

Static Safety: Wear an ESD grounding wrist strap; the onboard FPGA, CAN-bus transceivers, and optical gates are highly vulnerable to electrostatic puncture.
Visual Inspection: Inspect the male connector headers under bright light. Ensure no pins are bent, missing, or shorted by loose solder splatters.
Flat-Gate Positioning: Mount the DSQC643 3HAC024488-001 onto the chassis bracket inside the IRC5 panel layout. Ensure all mounting screws are locked firmly to anchor the ground reference plain to the cabinet's earth.

Field Engineering Considerations

system, this dust settles onto the exposed pins of the safety connectors.
Carbon Tracking: Moisture combined with conductive shop dust creates microscopic resistive bridges between adjacent pins. This can lead to false signals on safety lines or cause a 24V supply pin to short out to a logic pin, frying the board's onboard FPGA logic.
Prevention Rule: Always ensure that the mandatory protective insulation panel shield overlay is securely screwed into position. These covers are vital physical shields that deflect falling conductive dust away from sensitive board surfaces.

Technical FAQ

Q: Do I need to connect a service laptop to flash firmware or map safety configurations after installing a new DSQC643 3HAC024488-001?
A: No. The DSQC643 3HAC024488-001 uses hardwired, dual-channel redundant hardware logic. It contains no operating system, software parameters, or customer profiles. Replacement is 100% "plug-and-play" with zero data loss.

Q: The factory floor is heavily contaminated. Can I use shop compressed air to blow dust off the DSQC643 3HAC024488-001?
A: Never do this. Shop compressed air contains moisture and compressor oil. Blowing it onto the DSQC643 3HAC024488-001 creates a sticky, conductive film that bridges open connector traces, causing catastrophic arc-over short circuits. Clean with a dry vacuum or an approved electronics spray.

Q: Why must the protective insulation panel shield overlay be screwed tightly back over the DSQC643 3HAC024488-001 during assembly?
A: The mandatory cover acts as a physical firewall. It deflects falling conductive metallic workshop dust away from open pin headers and protects field technicians from accidental contact with live components.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
