Power Supply Board |SAFT172POW SAFT 172 POW | ABB

Technical Specifications

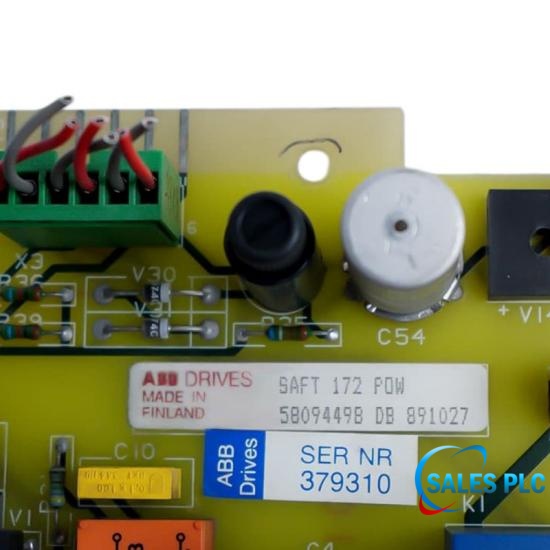

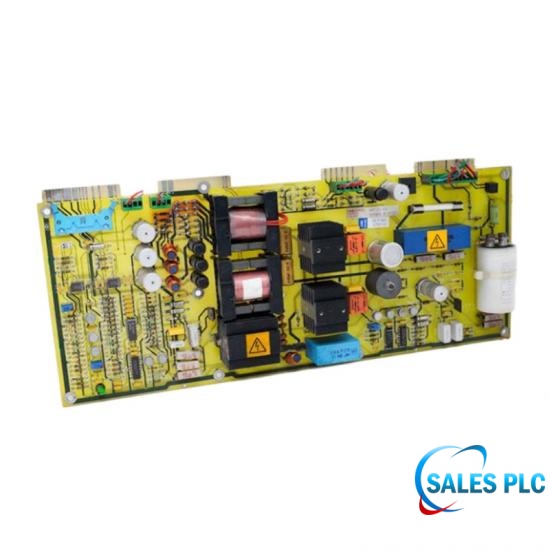

The ABB SAFT172POW SAFT 172 POW power board is a high-efficiency power supply module for industrial automation control systems. It provides stable and reliable power support, suitable for various industrial environments, ensuring normal system operation.With a wide operating voltage range of 24V DC, it ensures compatibility with a broad spectrum of industrial devices, making it a versatile choice for diverse applications.The unit is equipped with advanced thermal management capabilities, ensuring optimal heat dissipation and prolonging its lifespan even in high-temperature environments.

Troubleshooting & Comissioning Checklist

Check Grounding: Ensure the board mounting screws are tightly bonded to the chassis grounding plane.
Test Isolation: Verify resistance between input power terminals and the ground frame is mega-ohm grade.
Isolate Load: Disconnect critical downstream control cards or logic boards if possible.

Field Engineering Considerations

Voltage Smoothing: Verify that incoming line fluctuations match the module's wide input range to prevent upstream noise from breaking the internal protection loops.
Protection Coordination: The board features built-in overvoltage, overcurrent, and short-circuit protections. Field circuit breakers must be closely coordinated so local faults trip at the board level rather than dropping power to the entire system rack.
Grounding Isolation: Ensure the mounting chassis grounds are thoroughly bonded to a low-impedance earth ground to maintain the integrity of the board's internal isolation barriers.

Technical FAQ

Q: What is the primary function of the SAFT172POW board?
A: It is a dedicated internal Power Supply Board. It converts system-level voltages down to stabilized voltages required to power critical control logic boards, interface modules, and pulse amplifier circuits within legacy automation and drive enclosures.

A: The board is predominantly integrated into legacy ABB DC drives, frequency inverters, and early-generation process control system frames (such as legacy E3ED systems) alongside related boards like the SAFT 168/171 PAC and SAMI inverter drive units.

A: Typical signs of aging include dried-out electrolytic capacitors, heat discoloration around voltage regulators, or a complete loss of DC output voltage, which triggers system-level "under-voltage" faults on the master controller.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
