Power Supply | SA610 3BHT300019R1 | ABB

Technical Specifications

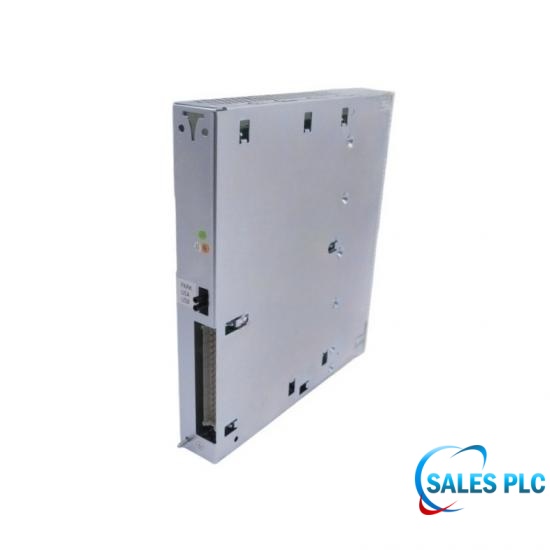

The ABB SA610 3BHT300019R1 is an ABB system power module to provide stable power supply for industrial automation applications. SA610 3BHT300019R1 supports a wide input voltage range, including 110/120/220/240 VAC and 110/220/250 VDC, allowing integration into different industrial power networks. The module for industrial environments with an operating temperature range of -25 °C to +70 °C. It supports storage conditions from -40 °C to +85 °C, ensuring the module can be stored and transported under a wide temperature range while maintaining its specified characteristics.

Troubleshooting & Commissioning Checklist

Inspect Mechanical Rail AlignmentSlide the module slowly along the guide tracks. Do not force insertion; a smooth glide ensures the backplane multi-pin interface aligns tightly without bending pins.
Clean Contact PointsWipe backplane edge interfaces with a fast-evaporating electrical connector cleaner to clear any long-term oxide or carbon tracking.
Cabinet Space Ventilation AuditCheck that a minimum vertical envelope clearance exists above and below the card chassis to facilitate natural convective cooling across the power stage.

Field Engineering Considerations

Backplane Alignment: Use caution when pushing the assembly inside the rack cage, since slamming the card home will easily mangle or snap the delicate rear connection prongs.
Field Consideration: Double-check that the primary branch breaker or inline fuse can take the massive initial electrical surge without tripping, particularly if you run the system on high-voltage direct-current lines.
Field Wiring: Tighten the terminal screw blocks on the power feed cables down to the exact torque limit to survive severe mechanical shaking on the factory floor.

Technical FAQ

Q: What happens if there is an accidental short circuit on the 24V output of the SA610 3BHT300019R1?
A: Internal current-limiting circuits safeguard this device against abrupt electrical shorts. If the output lines bridge, the onboard safety automatically clamps the current flow and drops the voltage down to a safe level; as soon as field workers remove the external fault, the power supply self-starts and restores normal output without anyone needing to push a manual reboot button.

Q: Can two SA610 3BHT300019R1 units be configured together for zero-downtime operations?
A: Absolutely; you can bridge their outputs side-by-side to construct a highly reliable dual-redundant backup loop. When setting up the system, field technicians must balance and adjust the voltage output levels on each unit so that both boxes share the chassis power demand evenly, stopping one side from wearing out prematurely.

Q: What type of cooling is required for the SA610 3BHT300019R1 module?
A: This hardware dissipates heat entirely through free ambient air circulation without any active fans. Keep the open spaces directly above and underneath the module rack perfectly clear so that warm air can rise away naturally and prevent heat from pooling inside the metal chassis.

Q: Do you supply brand-new, original parts or second-hand refurbished items?

A: Our stock consists of Original New items; all products undergo quality inspection to ensure they are fully functional.

Q: What guarantees are included with the shipment?
A: All items in stock are tested by engineers, packed in professional ESD packaging, and shipped via express logistics with a global delivery time of 24–48 hours.

Q: How long does global shipping take?
A: Stock items are typically dispatched within 24 hours. Shipments are sent via DHL or FedEx Express, taking approximately 3–5 days to reach Asia, 4–6 days to Europe and the Middle East, and usually arriving within a week in major industrial regions worldwide.

Q: If the model I need is not listed on the website, can I request a quote?
A: Yes. We hold over 200,000 SKUs of industrial spare parts in stock, and many long-tail models are not listed in full. You can send us an RFQ (Request for Quote) directly, and we will provide wholesale pricing promptly.
