Processor Module | 3BHE025335R1121 PD D205 A1121 | ABB

Technical Specifications

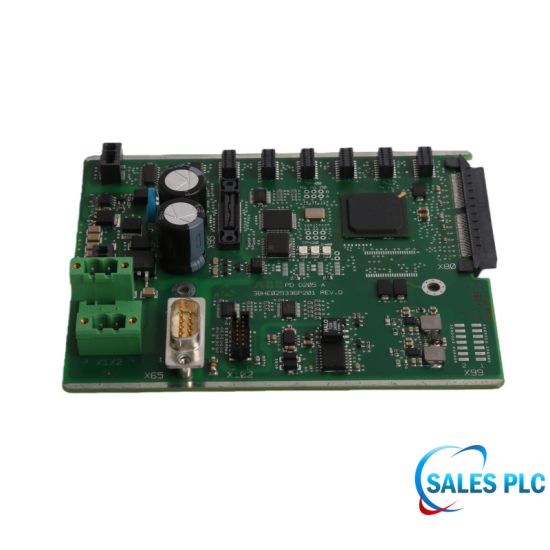

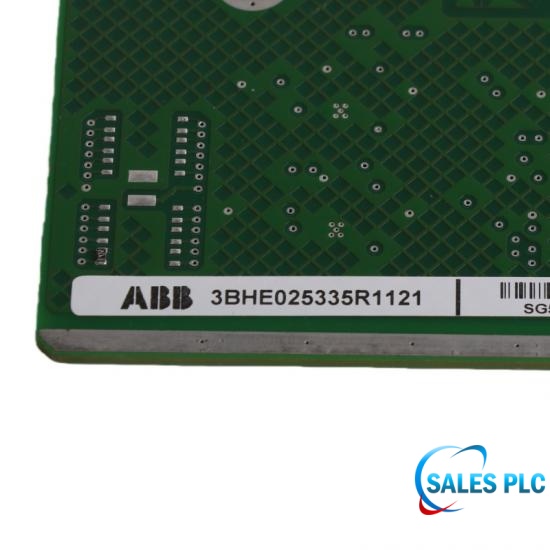

The ABB 3BHE025335R1121 PDD205 A1121  Processor Module is an industrial electronic circuit board used in ABB high-power control platforms. It serves as a pulse distribution and gate drive interface between the controller and power semiconductor devices, providing reliable transmission of control pulses required for system operation

Troubleshooting & Comissioning Checklist

Visual Inspection: Check the unit for shipping damage, loose components, or debris.
Environmental Check: Verify that the cabinet temperature, humidity, and dust levels match technical limits.
Grounding & Shielding: Confirm solid protective earth (PE) connections and proper cable shield grounding.
Power Supply Voltage: Measure input control and auxiliary voltages before turning the system on.
I/O & Fiber Optics: Check tightness of terminal blocks and inspect/clean fiber optic communication links.

Related Models for ABB UNITROL Series

3BHE025335R1121 PDD205 A1121 Circuit Board
3BHE025336P201 Associated Interface Board
3BHE019633R0101 PDD200 A101 Processor Module
3BHE037649R0101 PDD500 A101 Processor Module
3BHE022291R0101 PCD230 A101 Processor Module
3BHE022294R0101 GFD233 A101 Controller Module
3BHE046836R0101 GFD563 A101 Controller Module
3BHE004573R0143 UFC760BE143 Main Circuit Interface Board

Technical FAQ

Q1. What is the primary function of ABB 3BHE025335R1121 PDD205 A1121 Circuit Board?
The ABB 3BHE025335R1121 PDD205 A1121 Circuit Board transfers control pulses from the controller to power semiconductor devices and provides the interface required for pulse distribution within compatible ABB excitation and high-power drive systems.

Q2. Which ABB systems use the 3BHE025335R1121 PDD205 A1121 Circuit Board?
The 3BHE025335R1121 PDD205 A1121 is commonly installed in ABB AC 800PEC, UNITROL excitation systems, and selected high-power industrial drive platforms used for generator control and power conversion applications.

Q3. What devices interface with ABB 3BHE025335R1121 PDD205 A1121?
The ABB 3BHE025335R1121 PDD205 A1121 Circuit Board interfaces with processor modules, control boards, and power semiconductor assemblies, supporting coordinated signal transmission throughout the control system.
